Caution: Close the Pilot fan door within 60 seconds to maintain adequate
airflow to properly cool the server.

Open Pilot Top Cover

1 Press down on the push button on the Pilot top cover to release the top
cover and use the recessed areas to slide the top cover toward the back of
the Pilot about 0.5 inches (12.7 mm).
Caution: Before removing the top cover of the Pilot, power off the Pilot
using Guided Maintenance. Removing the Pilot top cover before powering
off the Pilot might cause damage to the operating system on the Pilot.
Tip: Slide out the Pilot top cover by pressing down on the grooves located
on both sides of the cover.

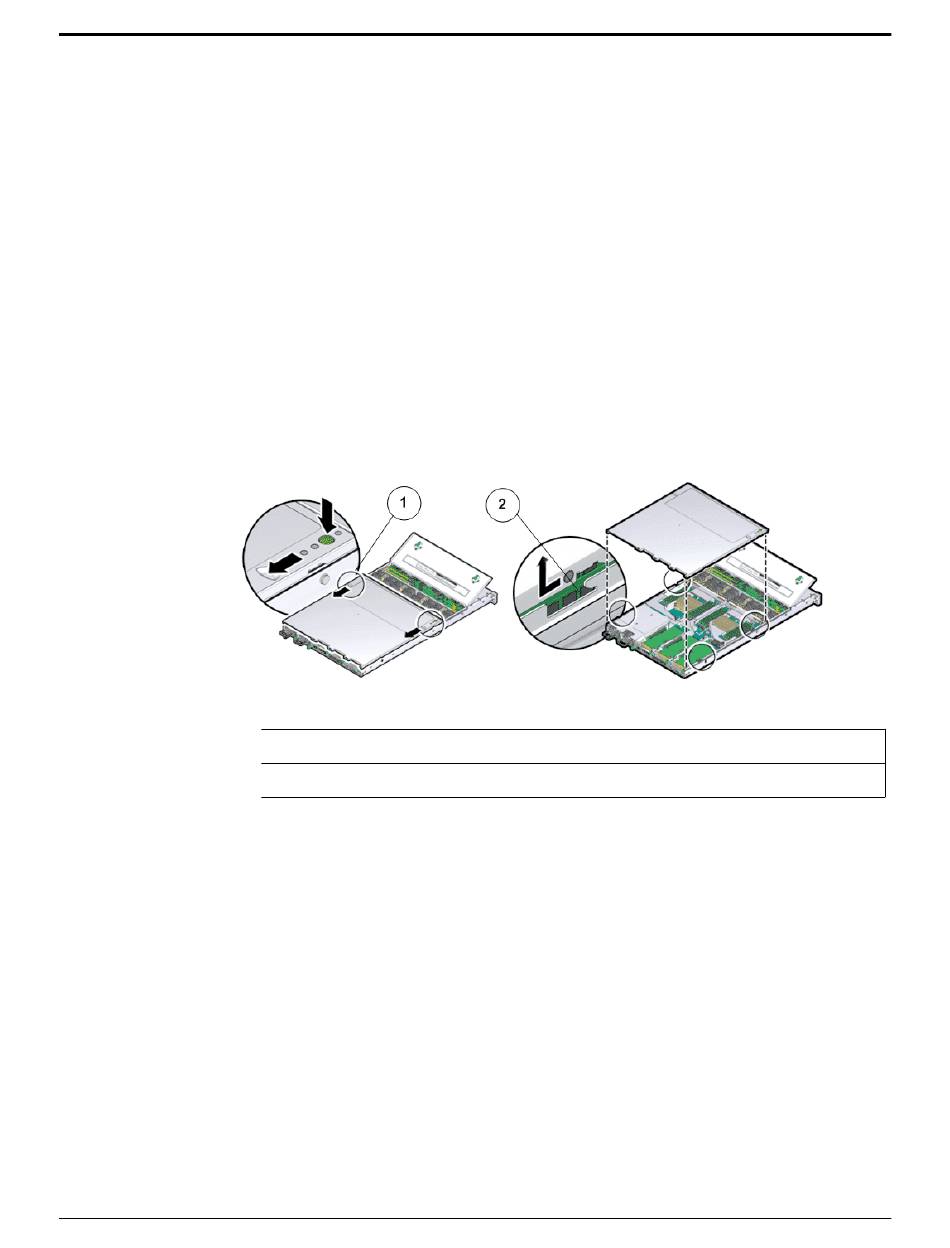

Figure 150: Pilot top cover removal

Legend
2 Lift the cover off the Pilot chassis and set it aside.

Remove a Battery

1 Remove the battery by placing your finger or a pointed tool like a
screwdriver under the battery on the side nearest to the back of the Pilot
and gently lifting the battery out of the retainer.
1 Push button to release top cover
2 Grooves to slide out top cover
Pilot Replacement Procedures
