Drive Enclosure Rails

To prepare a rack for adding Drive Enclosures to the Oracle Flash Storage
System, you must install rails in the rack for each Drive Enclosure that you plan
to add. Oracle includes rail kits in the Drive Enclosure packaging.
Use one of the following racks for the Drive Enclosure:
Sun Rack II 1042/1242 rack
•
Any 19-inch wide, four-post, EIA-compatible rack with a front-to-back
•
depth between vertical cabinet rails of 24 inches to 36 inches (61 cm to 91
cm)
Drive Enclosures rail kits can be installed in racks with the following types of
holes:
Square
•
Round
•
Threaded (must be M6 or 10-32 racks)
•
The following figure shows examples of supported rack holes.

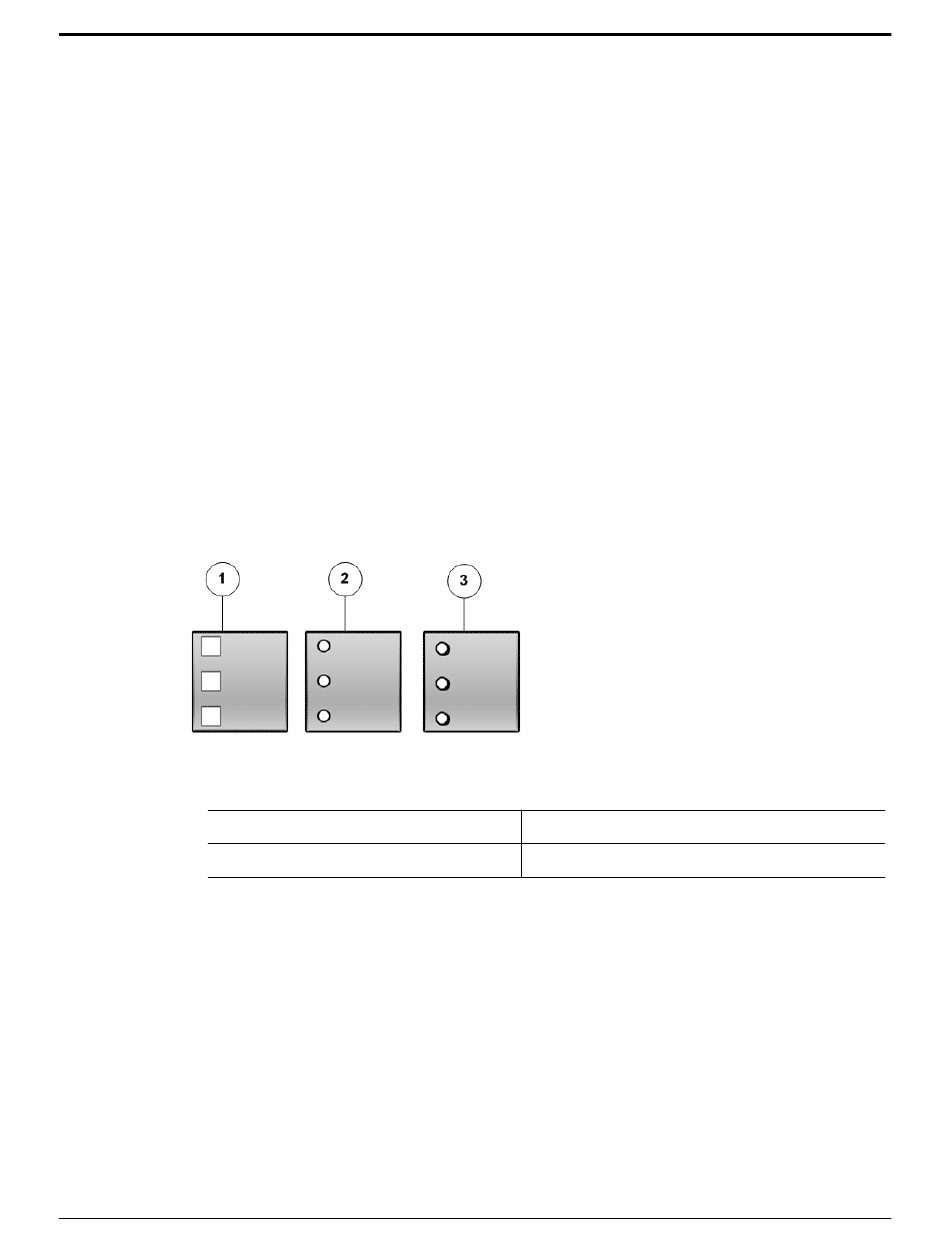

Figure 29: Examples of supported rack holes

Legend
1 Square holes
2 Round holes
The following figures show the rails for both Drive Enclosure types.
Oracle FS1–2 Global Procedures
3 Threaded holes
