Close The Controller Top Cover; Figure 100: Riser 3 Latch Locked - Oracle FS1-2 Customer Service Manual

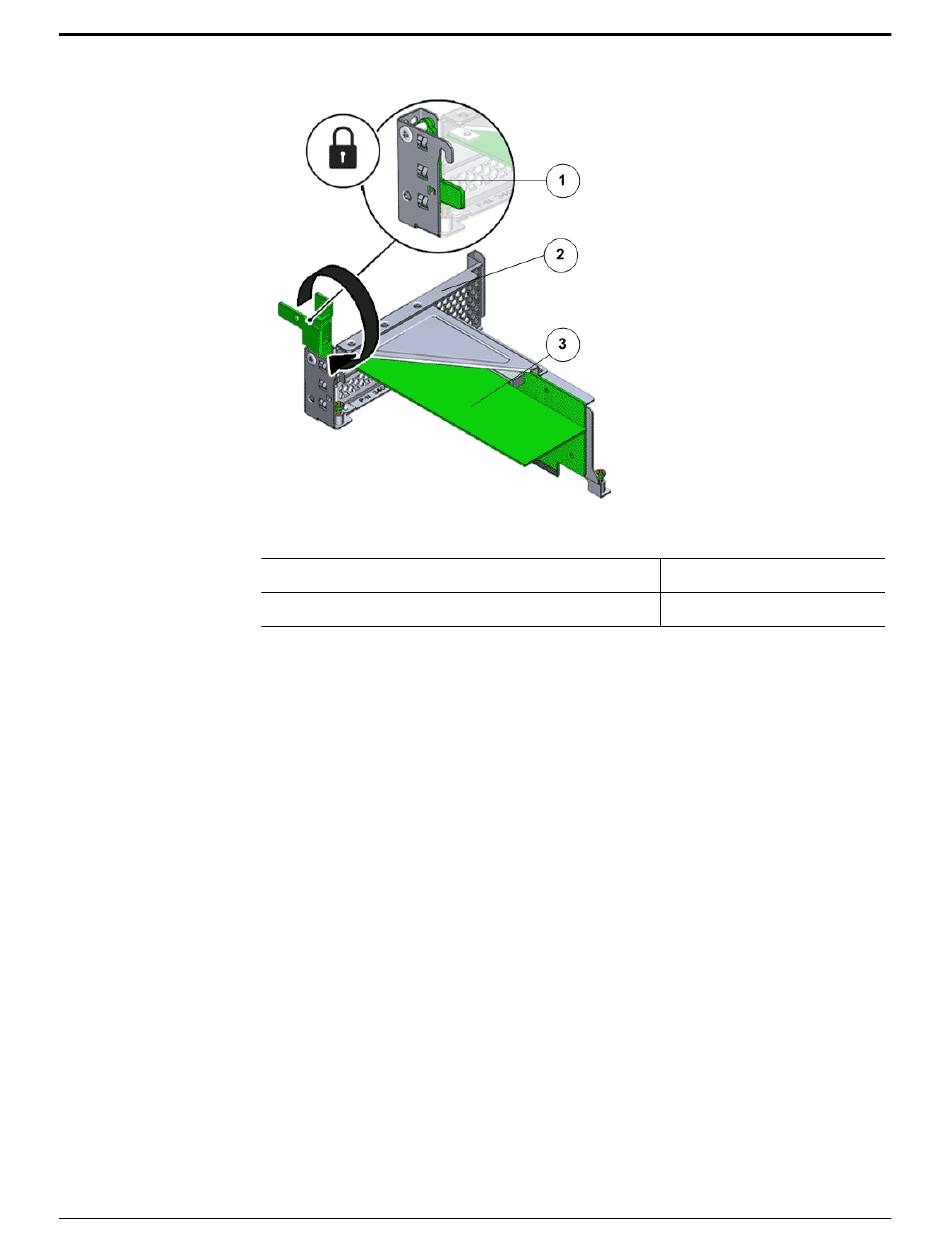

Figure 100: Riser 3 latch locked

Legend
3 Reconnect any previously removed internal or external cables to any HBAs
installed in the riser.
4 Repeat the above steps for any additional risers that you are installing.

Close the Controller Top Cover

Place the top cover of the Controller and tighten the two thumb screws at
the back of the Controller that secure the top cover.
1 Riser 3 latch
2 Riser 3
Controller Replacement Procedures
3 HBA
