Figure 167: Pilot Position During Component Replacement; Figure 168: Pilot Slide Lockout Release Tabs - Oracle FS1-2 Customer Service Manual

Flash storage system
Hide thumbs Also See for FS1-2:
Table of Contents

Advertisement

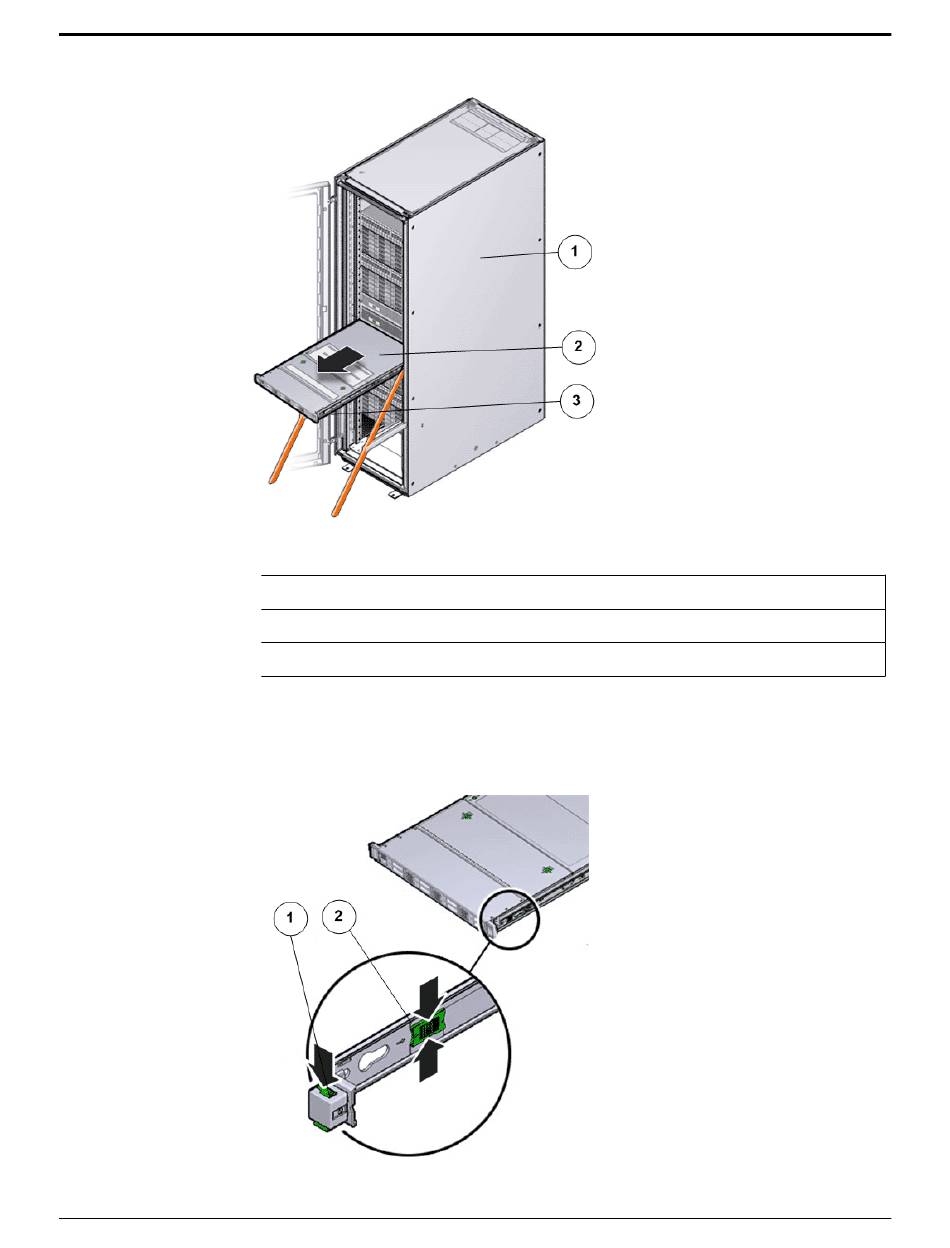

Figure 167: Pilot position during component replacement

Legend
1 Rack
2 Pilot chassis
3 Pilot rails
2
Slide the Pilot chassis fully forward until the slide lockout release tabs lock
into position.

Figure 168: Pilot slide lockout release tabs

Pilot Replacement Procedures
201
