Legend
2
Slide the top cover backwards 0.5 inches (13 mm) and lift the top cover
straight up and off the Controller chassis.
Remove a Fan Module
1
Using your thumb and forefinger, grasp the removal tab and gently lift the
fan module from the fan compartment.

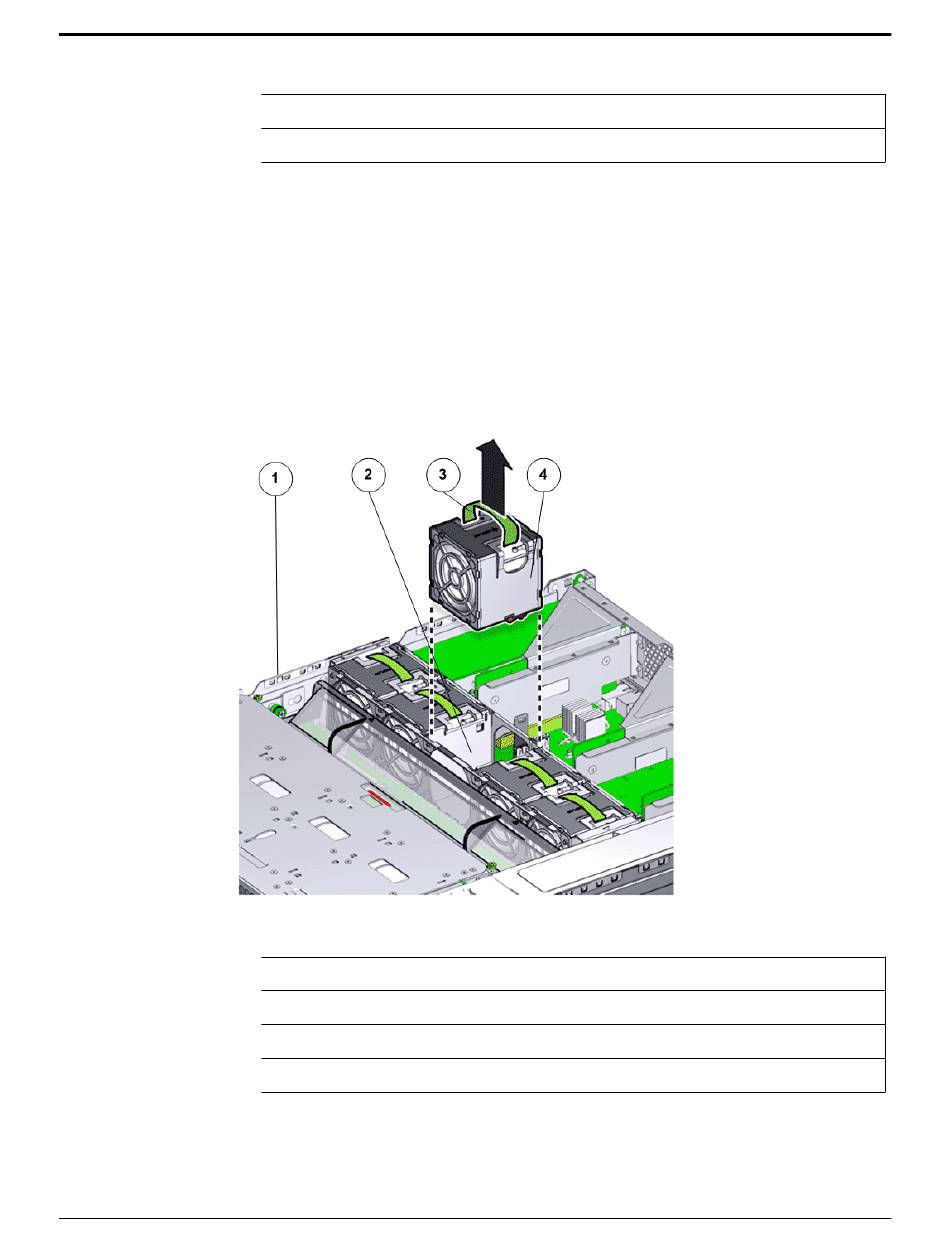

Figure 69: Remove fan module
Legend
Note: Pulling the green tab from the middle releases the locking tab for
each individual fan.
1 Controller top cover
2 Captive screws
1 Controller chassis
2 Fan compartment
3 Removal tab
4 Fan module
Controller Replacement Procedures
99
