Close Pilot Fan Door; Connect Power Cords On The Pilot; Slide Pilot To Rack Position; Figure 173: Pilot Top Cover Installed - Oracle FS1-2 Customer Service Manual

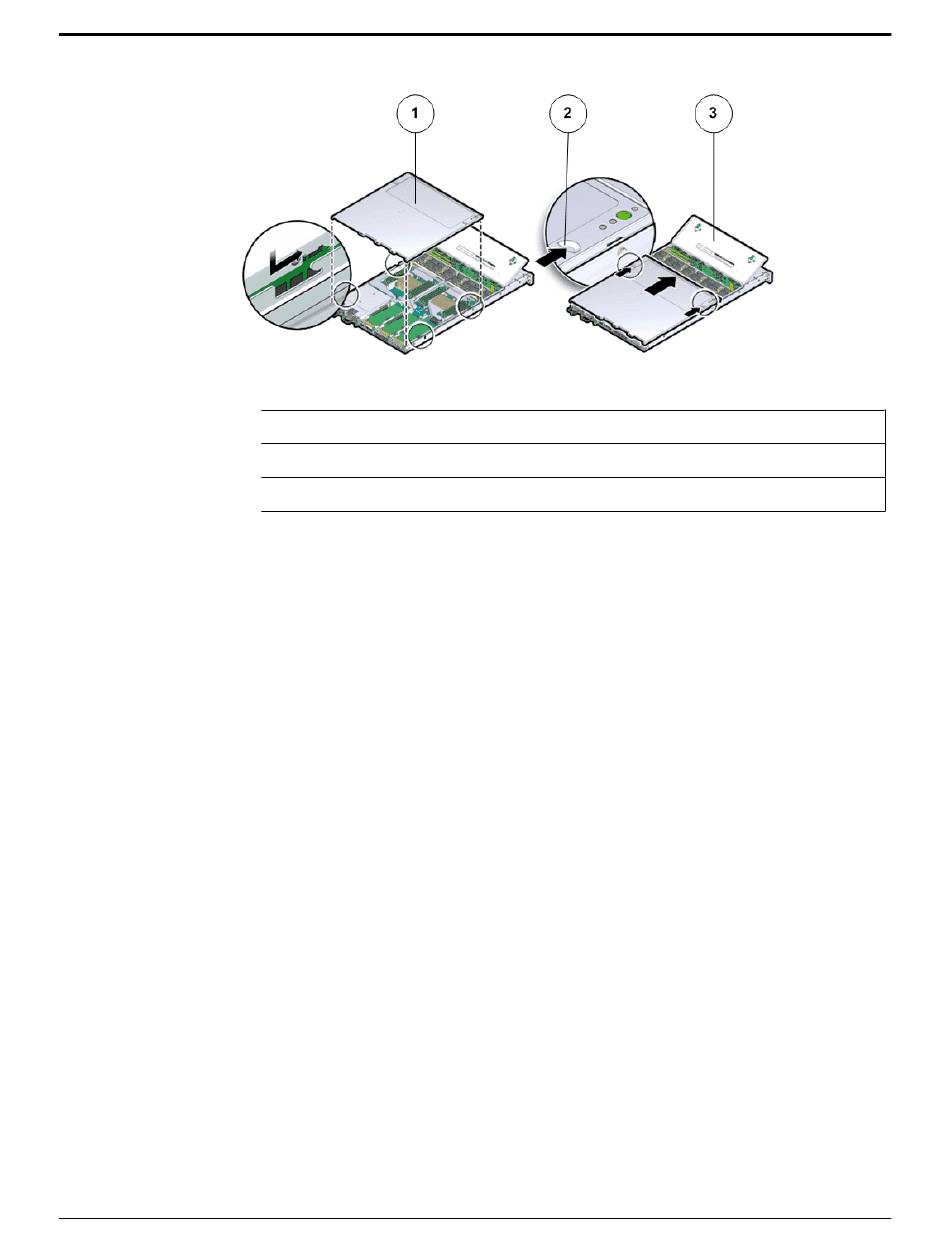

Figure 173: Pilot top cover installed

Legend

Close Pilot Fan Door

Close the Pilot fan door by pressing the two release tabs on both sides of
the fan door until it locks into place.

Connect Power Cords On the Pilot

Reconnect the power cords to the Pilot.
Note: After the power cords are connected, the SP (ILOM) LED blinks first.
The OK LED does not comes on until the SP is solid green.
Note: If you need to stop the Pilot from booting in order to check the BIOS,
you must wait until the SP LED is solid green and then press the power
button, which is located near the OK LED for 7-10 seconds. The OK LED
subsequently displays a slow blink.

Slide Pilot to Rack Position

1 Simultaneously pull and hold the two release tabs, one on each side of the
Pilot, toward the front of the Pilot while you push the Pilot into the rack.
1 Top cover
2 Grooves to slide the top cover
3 Fan door
Pilot Replacement Procedures
207
