Figure 57: Pilot With Mounting Brackets Inserted Into The Slide Rails - Oracle FS1-2 Customer Service Manual

management interface (PMI) and private interconnect (PI) cables have been
connected.
Caution: Work with a partner or use a mechanical lift for assistance. The Pilot
weighs approximately 39.9 lbs (18.1 kg). Two people are required to carry the
chassis.
Caution: Deploy any rack anti-tilt mechanisms before installing the Pilot into the
rack to prevent the rack from tipping over during component installation.
Caution: Always load equipment into a rack from the bottom up so that the rack
will not become top-heavy and tip over.
Caution: Slide rail mounted components are not to be used as a shelf or a work
space.
1 Push the slide rails as far as possible into the slide rail assemblies in the
rack.
2 Using two people, one at each side of the Pilot, position the Pilot so that the
back ends of the mounting brackets are aligned with the slide rail
assemblies that are mounted in the rack.
3 Insert the mounting brackets into the slide rails, and then push the Pilot
into the rack until the mounting brackets encounter the slide rail stops
(approximately 30 cm, or 12 inches).

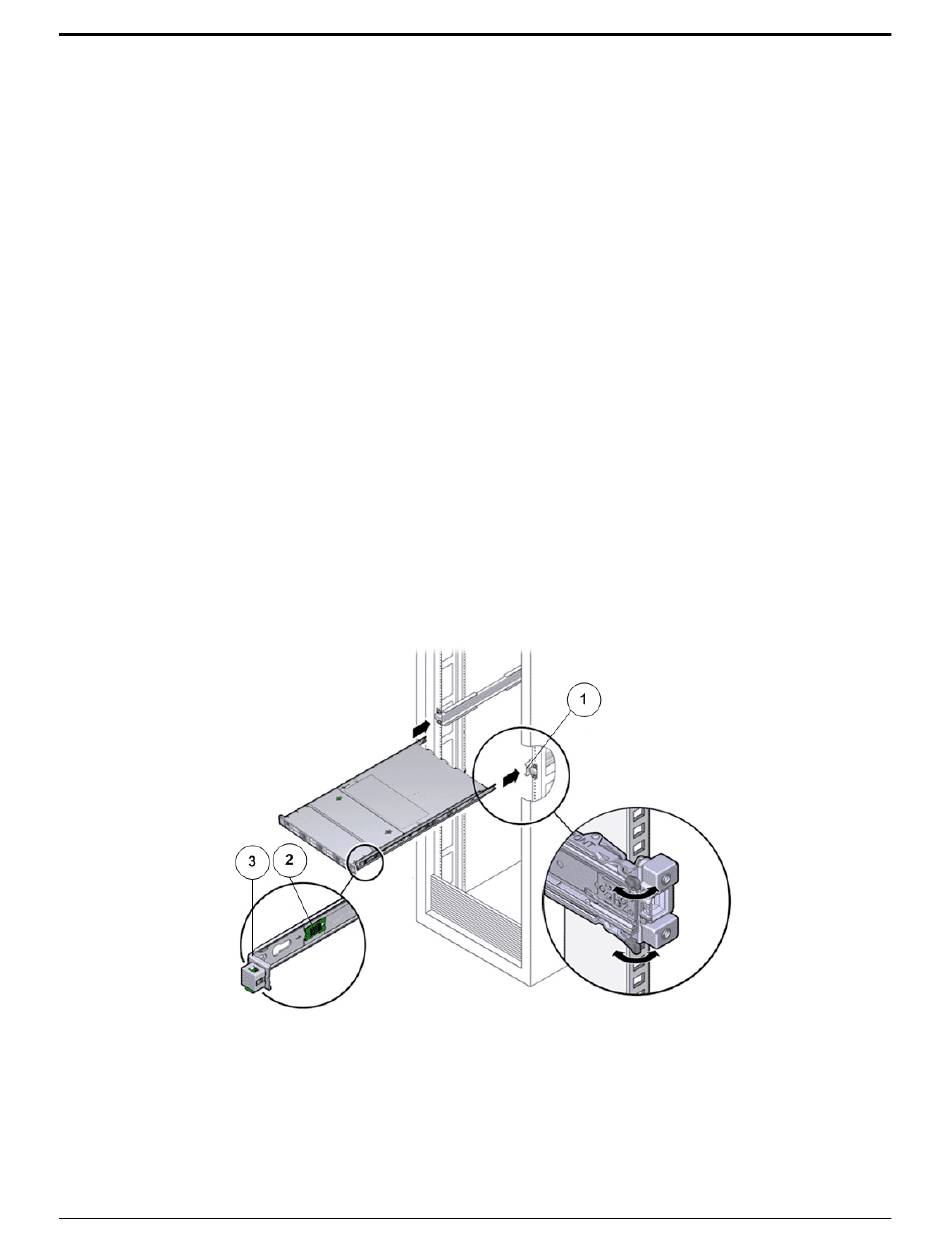

Figure 57: Pilot with mounting brackets inserted into the slide rails
