Figure 39: Cage Nut Installed In A Square-Hole Rack - Oracle FS1-2 Customer Service Manual

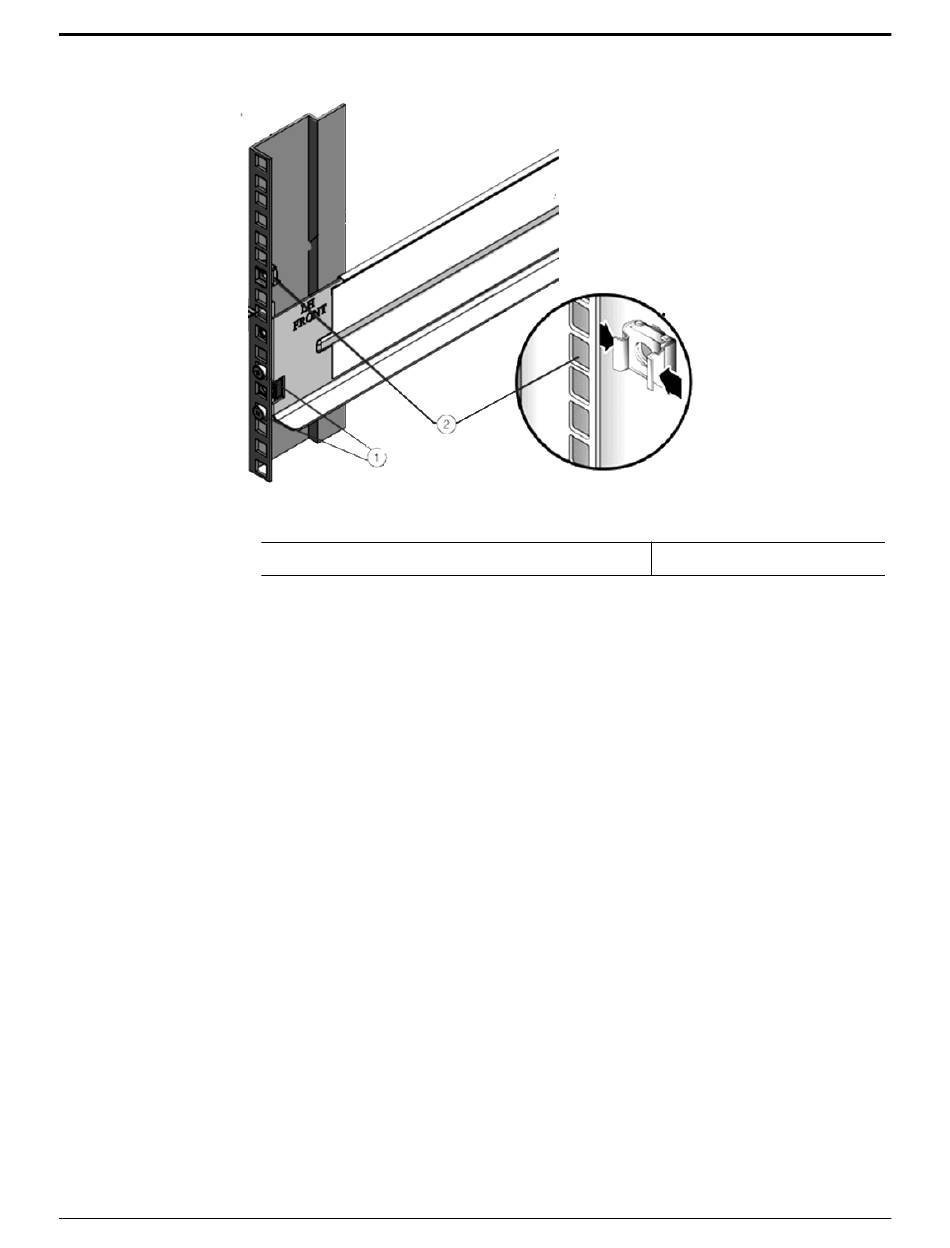

Figure 39: Cage nut installed in a square-hole rack

Legend
1 Rail-location pegs
4 Prepare the screws in each rail end.
Square-hole racks
No preparation is required.
Round-hole racks
Remove the two rail-location pegs from each rail end and replace them with
the special screws from the rail kit. The special screws are part number
0093340-02.
Threaded-hole rack
Remove the two rail-location pegs from each rail end and replace them in the
opposite direction from inside of the rail flange. Remove and discard the clip
nut from the front rail.
Oracle FS1–2 Global Procedures
2 Cage nut
