Raise The Drive Compartment To Service Position; Figure 108: Remove Air Filter; Figure 109: Cables Connected To The Backplane - Oracle FS1-2 Customer Service Manual

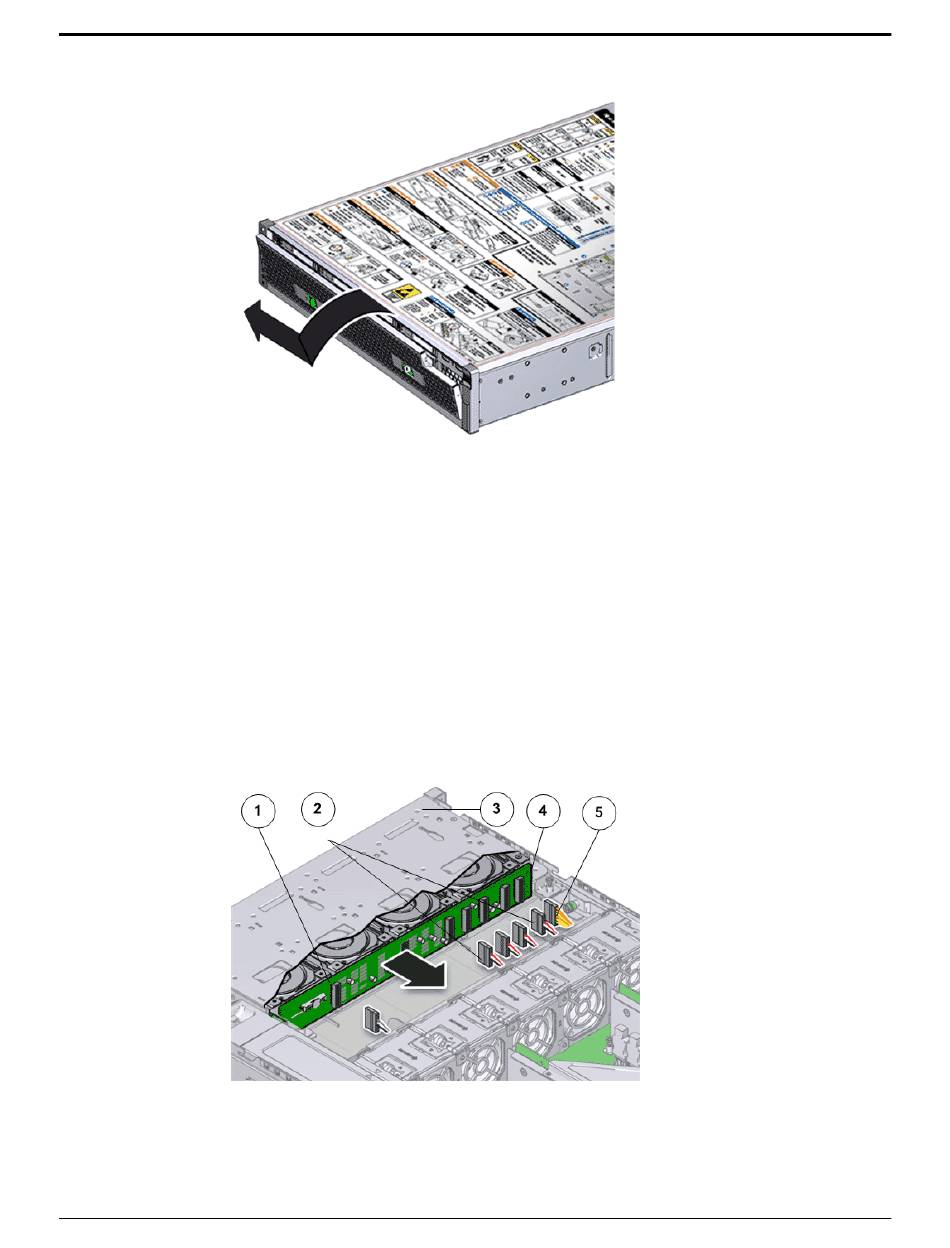

Figure 108: Remove air filter

4 Set the air filter aside.

Raise the Drive Compartment to Service Position

1 Disconnect the cables attached to the backplane.
Cables that must be disconnected include:

Figure 109: Cables connected to the backplane

SATA or drive cable
•
NV-DIMM cable
•
Motherboard to HDD backplane cable
•
USB board cable
•
Controller Replacement Procedures
143
