Table 5: Pilot Components And Descriptions; Figure 7: Pilot Back View - Oracle FS1-2 Customer Service Manual

the Oracle FS1 Flash Storage System components list. Part numbers are listed in
the components list.
The Pilot is a one rack-unit (1U) server and consists of several replaceable
components. Many Pilot components are customer replaceable (CRUs), while
others are field replaceable units (FRUs) that require Oracle Customer Support to
perform the replacement. Also, some components are hot-serviceable, meaning
that they can be replaced, while the Pilot is powered on. The following table
provides a summary of the Pilot FRUs and CRUs.

Table 5: Pilot components and descriptions

Pilot component
Battery
USB Oracle System Assistant (OSA)
flash drive
Disk backplane
8 GB DIMM module
Cable kit
CPU
300 GB SAS HDD
Fan module
Riser
SAS HBA [6 Gb/s]
Heat sink
Power supply

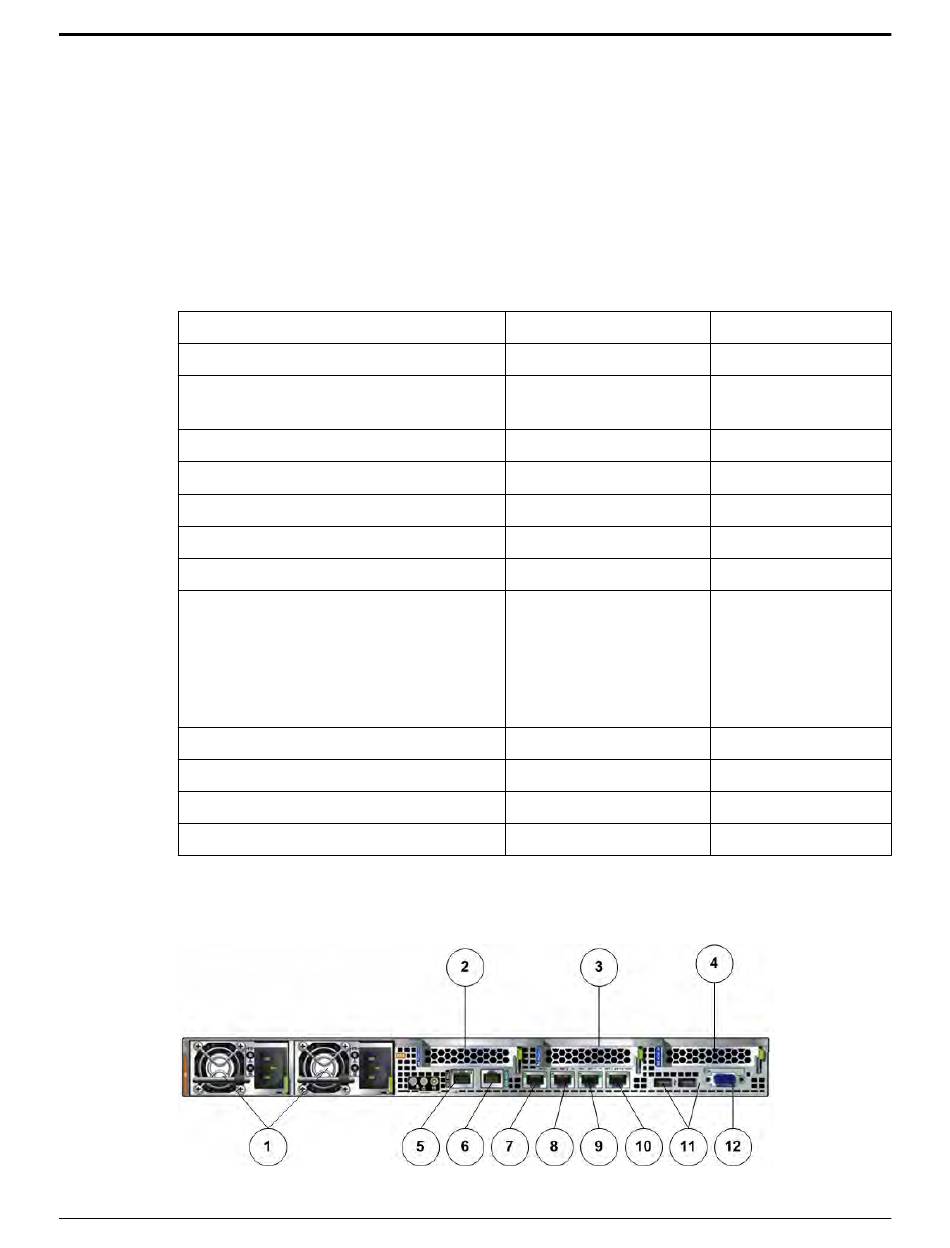

The following figure shows the components located at the back of the Pilot.

Figure 7: Pilot back view

Introduction to Oracle FS1-2 System Service Procedures
Type
CRU
CRU
FRU
CRU
FRU
FRU
FRU
CRU
CRU
CRU
FRU
CRU
Hot-serviceable
No
No
No
No
No
No
No
No
Note: GM support is
required to ensure
that failover has
occurred.
No
No
No
Yes
28
