Power Off The Pilot; Open Pilot Fan Door; Figure 169: Pilot With Fan Door Open - Oracle FS1-2 Customer Service Manual

Legend
Note: The slide-rail locks are located behind the flip-down handles on the
front of the Pilot chassis. The slide-rail locks are released when the flip-
down handles are pulled down. The slide lockout release tabs must be
released to push the Pilot chassis back into the rack.

Power Off the Pilot

1 Notify affected users that the Pilot will be powered off.
2 Ensure that the Pilot on which the replacement procedure must be
performed is powered off.
3 Disconnect the power cords from the back of the Pilot.

Open Pilot Fan Door

Press the two fan door release tabs simultaneously forward and swing the
Pilot fan door to the open position.
Note: Servicing the Pilot fan modules and other components located in the
front of the Pilot, such as the front indication module (FIM) and the disk
backplanes, require that the fan door be opened. It is also easier to remove
the Pilot's top cover if you open the fan door first.

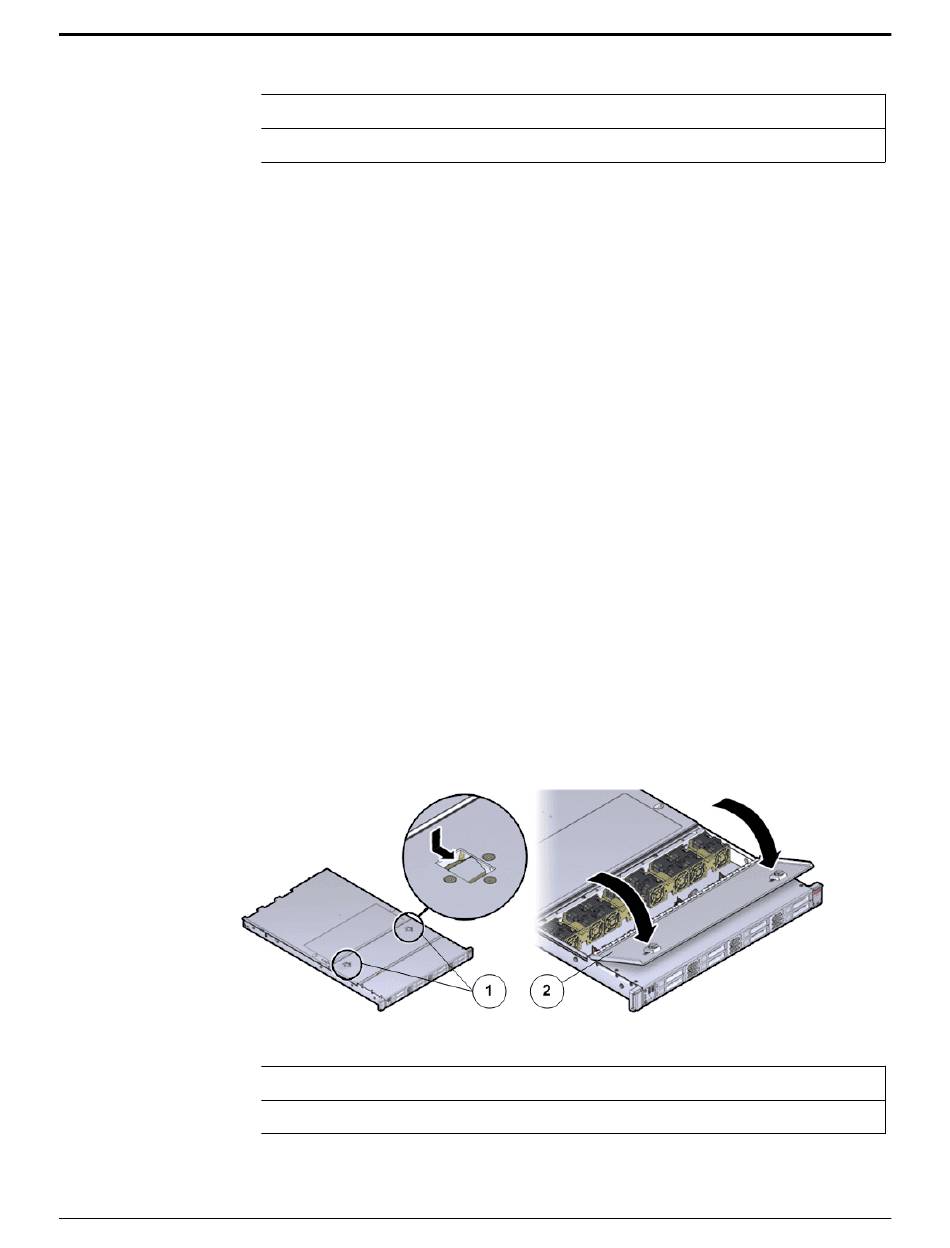

Figure 169: Pilot with fan door open

Legend
1 Slide rail lock
2 Slide lockout release tabs
1 Fan door release tabs
2 Pilot fan door in open position
Pilot Replacement Procedures
202
