Legend
Important: Ensure that any HBAs that must be removed from the failed
riser and placed onto the replacement rise are inserted into the same slots
on the replacement riser.

Remove an HBA

1 Disconnect any cables that are connected to the HBAs inside the riser.
If you have not done so already, note the ports from which the cables are
disconnected in the HBA, so that the cables can be reconnected to their
original ports when the HBA is replaced.
2 Swing the riser retainer latch (for riser 3) to its fully open (180 degrees)
position.

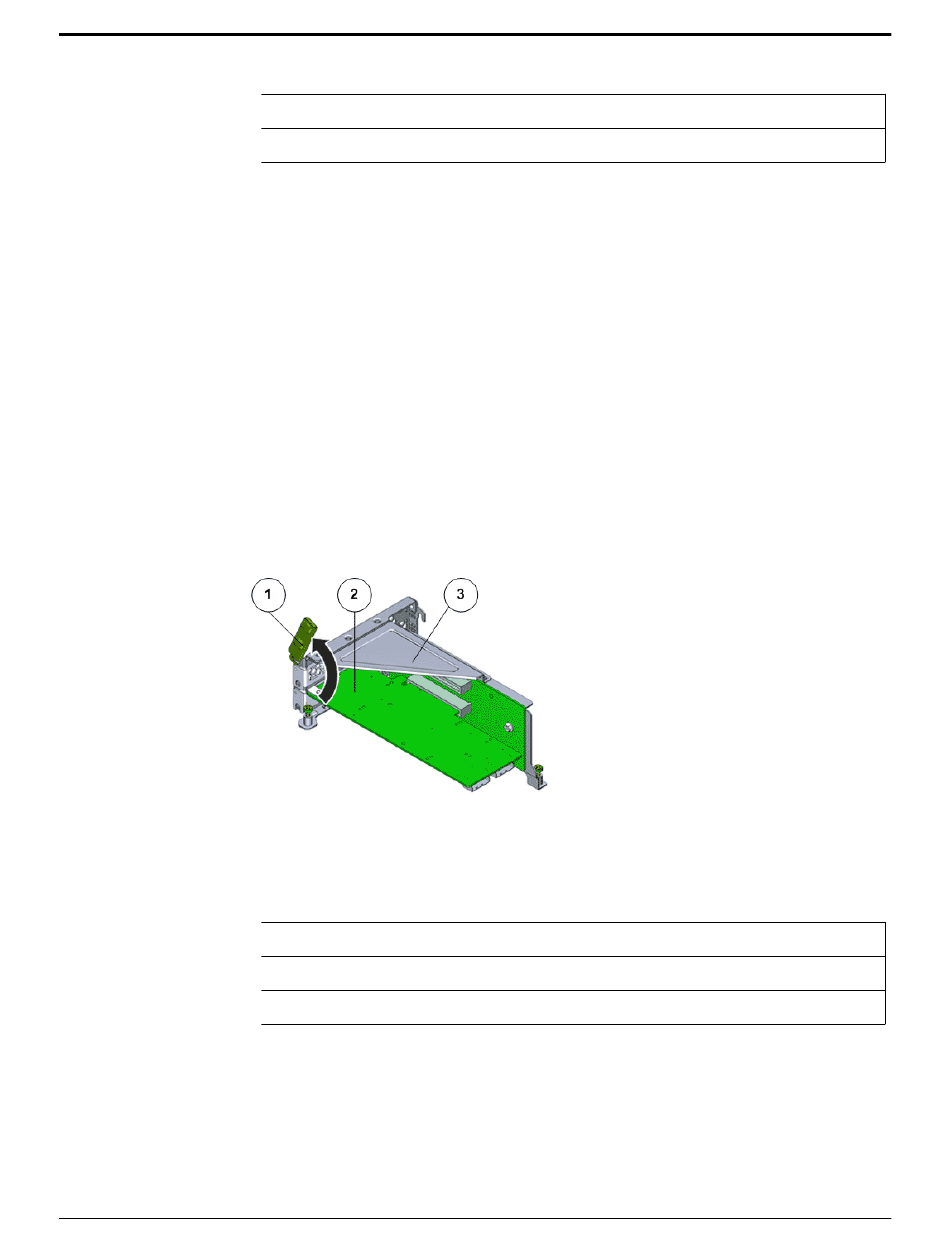

Figure 94: Unlock riser retainer latch to release HBA

Legend
3 Lift the HBA off of the alignment pin of the riser slot.
1 Riser
2 Controller motherboard
1 Riser retainer latch
2 HBA
3 Riser
Controller Replacement Procedures
129
