Slide Pilot to Service Position

1 Extend the rack's anti-tilt legs.

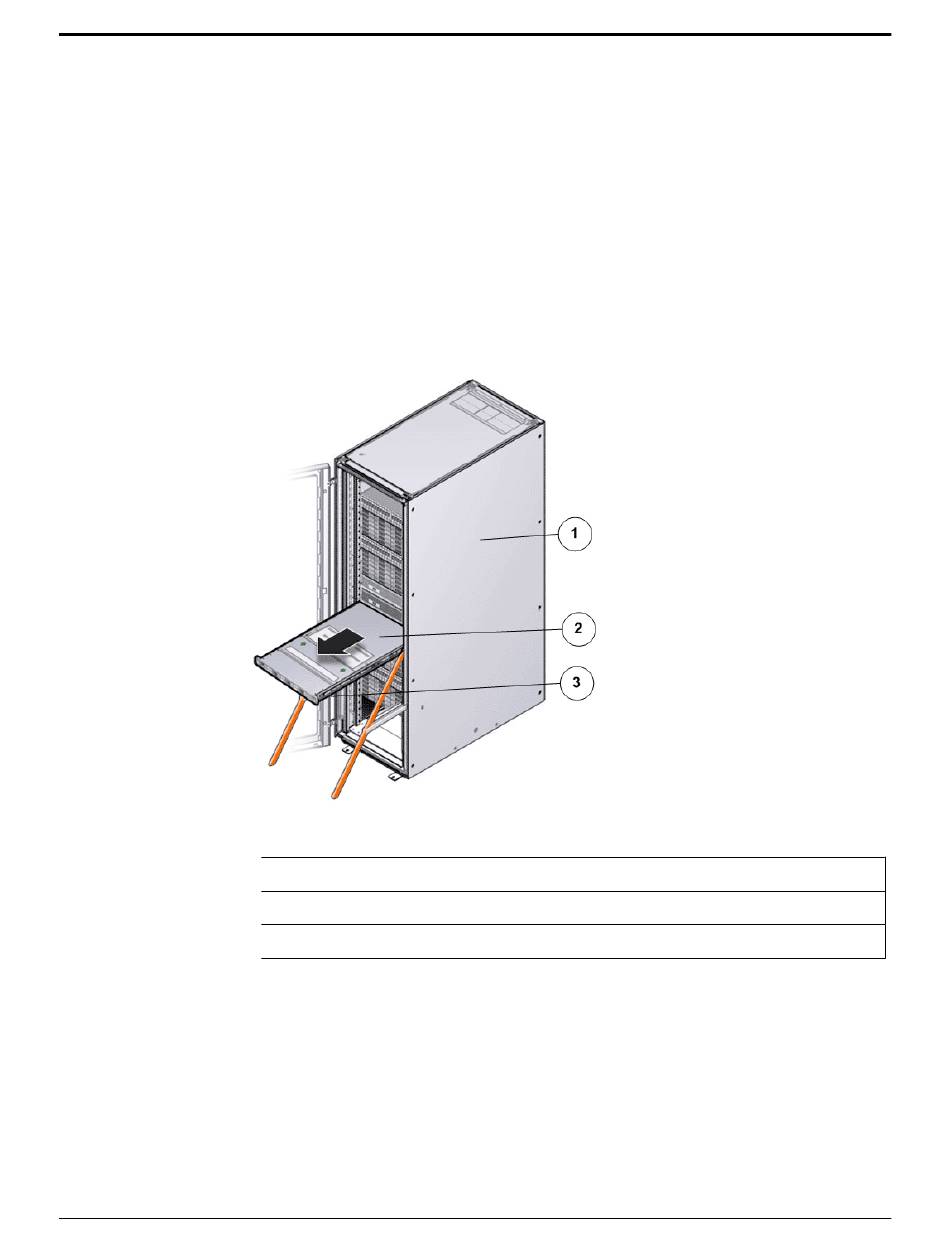

Figure 156: Pilot position during component replacement

Legend
2 Slide the Pilot chassis fully forward until the slide lockout release tabs lock
into position.
If you are replacing a power supply or a fan module, you are not
•
required to bring the Pilot offline. The power supplies and fan
modules are hot-serviceable.
Note: You can replace one power supply without bringing the Pilot
offline, as long as the second power supply remains online and
operational.
1 Rack
2 Pilot chassis
3 Pilot rails
