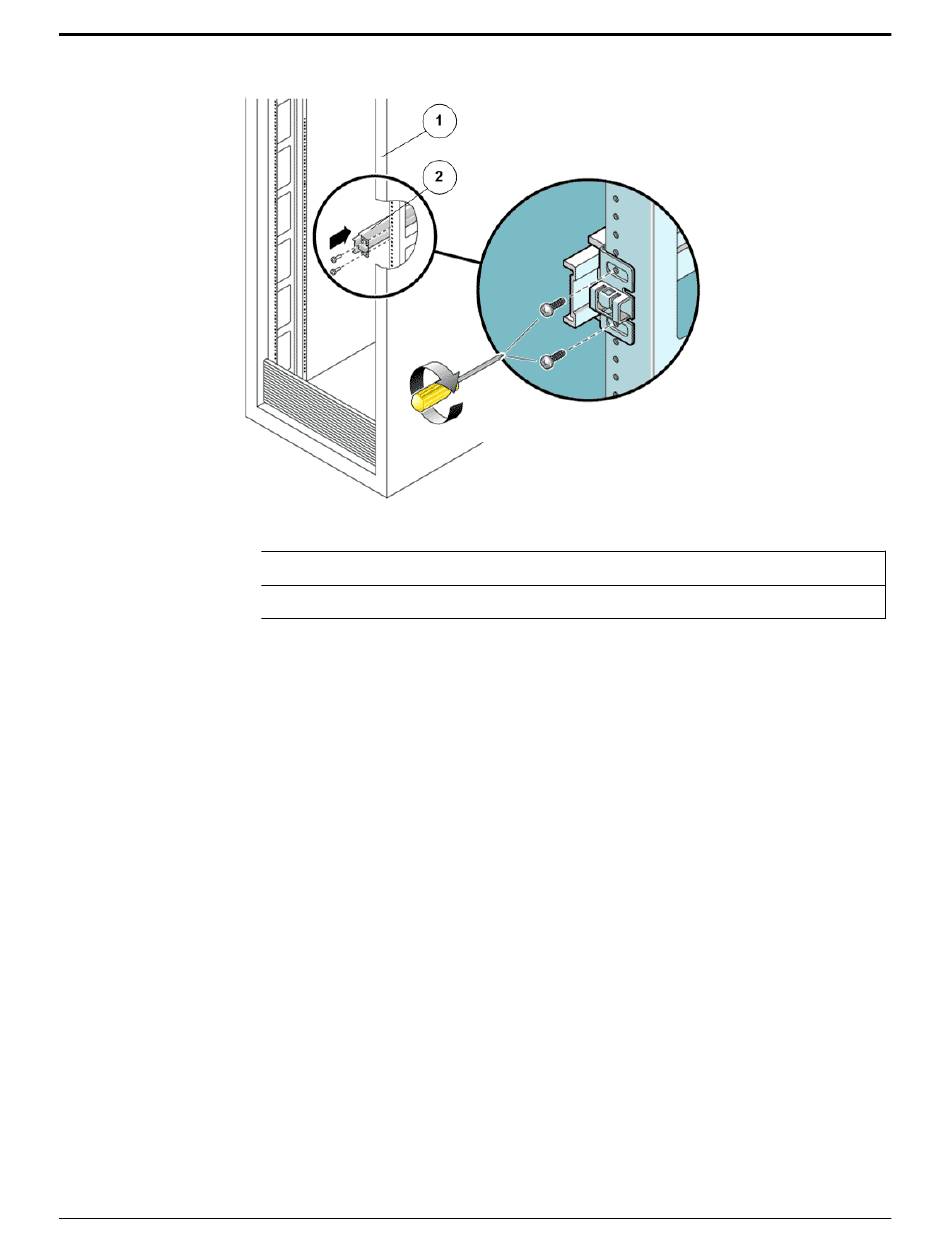

Figure 19: Slide rail mounted on the rack post

Legend
1 Rack post
2 Slide rail
Tip: Loosely attach the front of a slide rail to the right front rack post using
two screws but do not tighten the screws yet. Adjust the length of the slide
rail by sliding the back mounting flange to reach the outside edge of the
back rack post. Loosely attach the back of the slide rail to the back rack
post with two screws.
8 Attach the second slide rail to the left rack posts in a similar manner.
Tip: Do not tighten the screws.
9 Use the slide rail spacing tool to adjust the distance between the slide rails.
