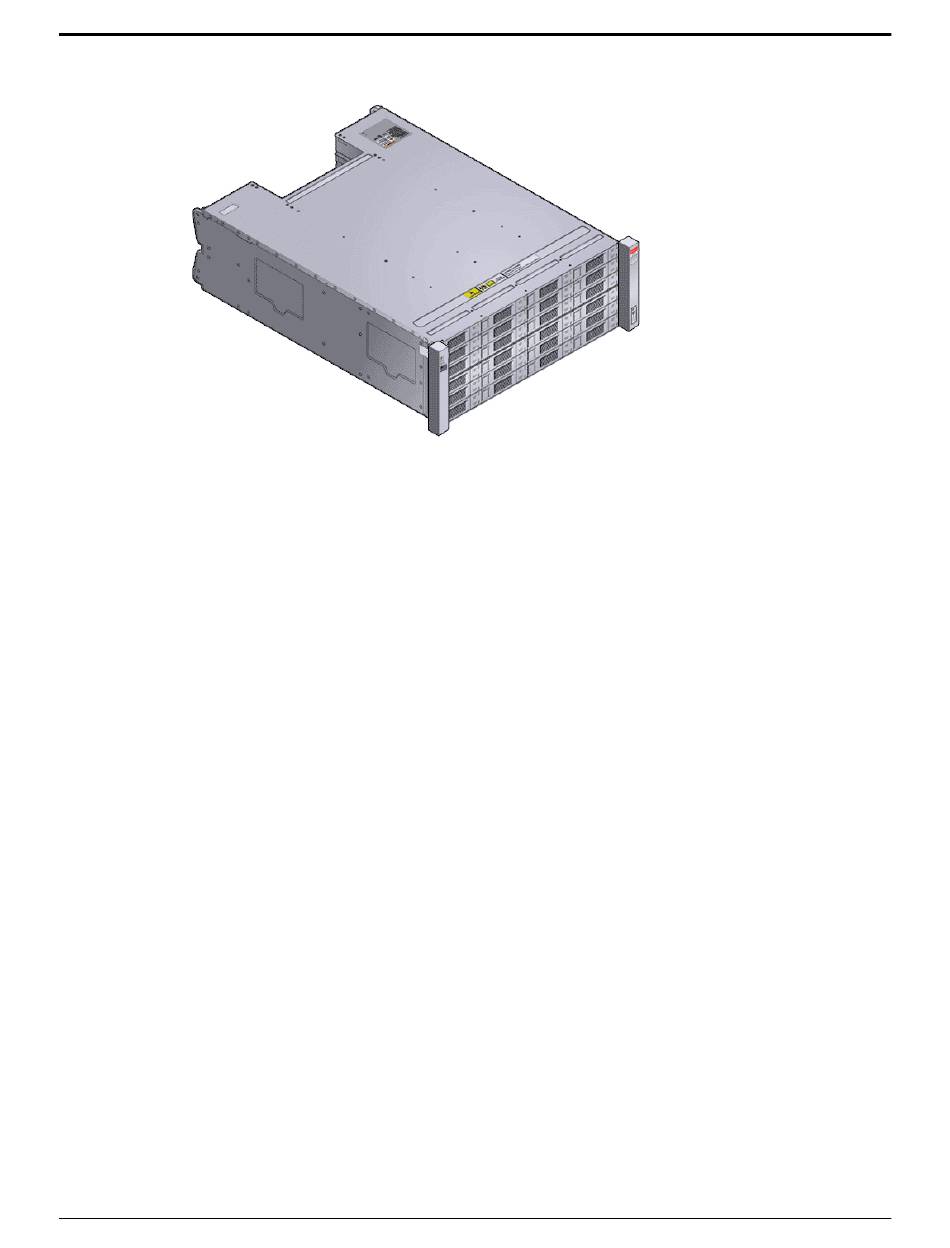

Figure 121: DE2-24C Drive Enclosure (front view)

Both types of Drive Enclosures have the following physical configuration:
Two hot-serviceable I/O modules with two interface slots that comply with
•
the Storage Bridge Bay (SBB) standard
Two hot-serviceable 580W power cooling modules with dual load-sharing
•
power supplies and integrated fans
19-inch rack‑compatible enclosure
•
Front access to all drives
•
Back access to the I/O modules and the power cooling modules
•
LEDs with status information for the I/O modules, the drives, and the
•
power cooling modules
The following figures show the back of the DE2-24P Drive Enclosure and the
DE2-24C Drive Enclosure.
