Figure 110: Disengaging The Backplane - Oracle FS1-2 Customer Service Manual

Flash storage system
Hide thumbs Also See for FS1-2:
Table of Contents

Advertisement

Legend
1 SATA or drive cable
2 NV-DIMM cables
3 Drive compartment
4 Backplane boards
5 Motherboard to HDD backplane cable
Note: The USB board cable is connected to the Controller display panel.
Note: All cables attached to the backplane must be disconnected before
raising the drive compartment. Otherwise, the cables might get damaged
or tear due to unnecessary flexure or pull.
Note: Note the location of all the cable connections to the backplane for
later re-connection of the cables after the replacement procedure is
completed.
Tip: Refer to the service label for more information on rotating the drive
compartment.
2
Disengage the backplane by loosening the four Phillips Number 2 thumb
screws on the four sides of the backplane using a Phillips Number 2
screwdriver and rotate the backplane at a 90 degrees angle.

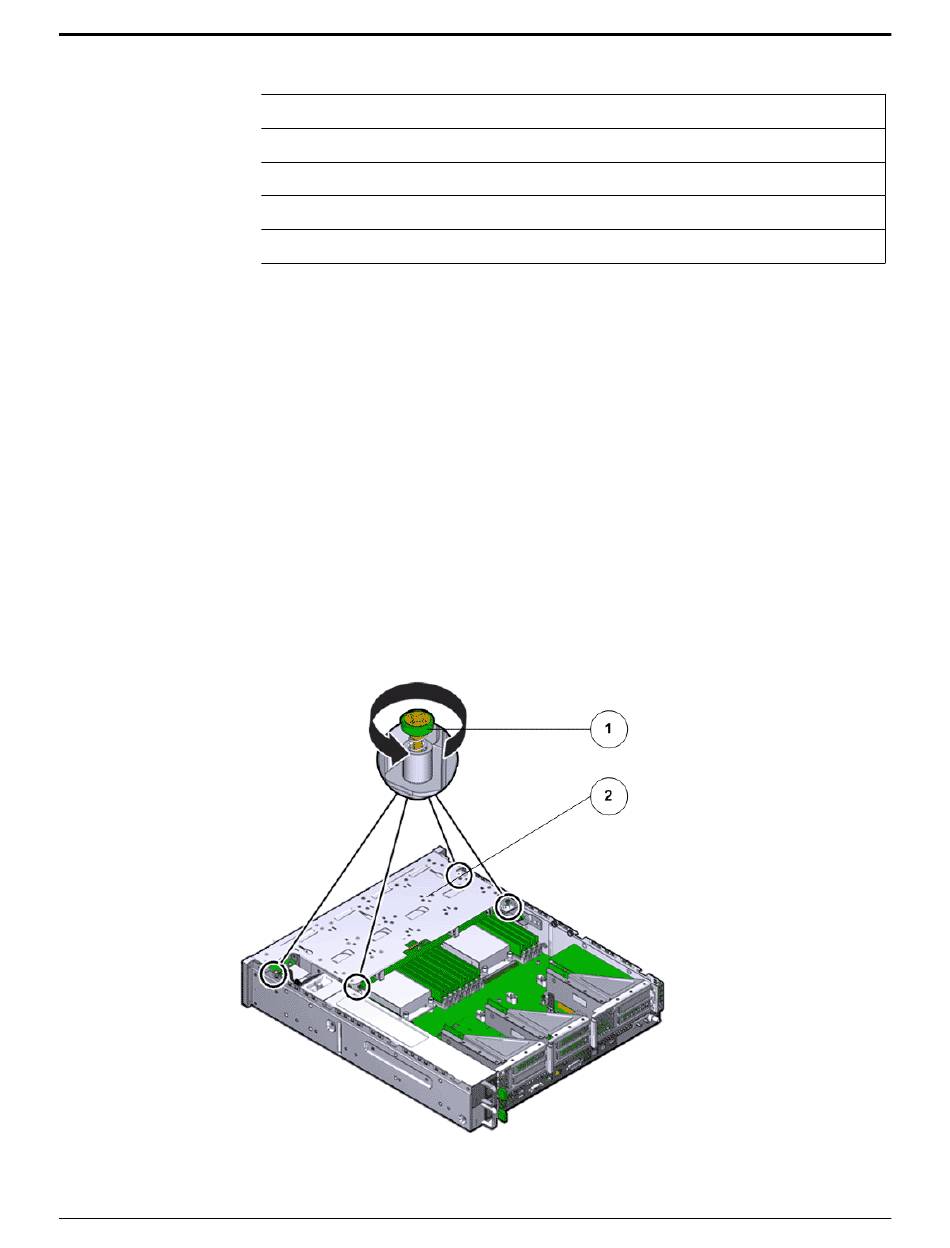

Figure 110: Disengaging the backplane

Controller Replacement Procedures
144
