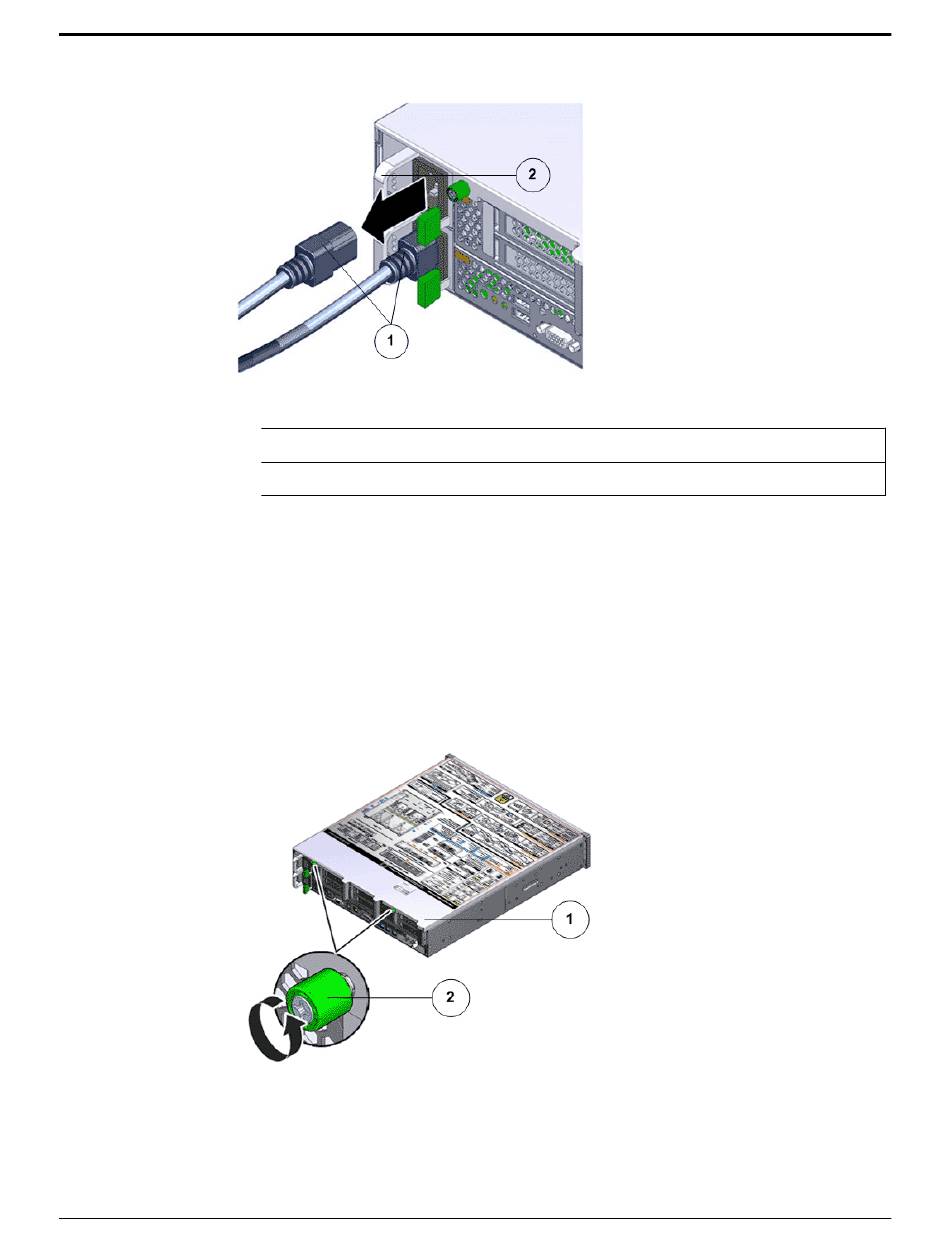

Figure 105: Remove power supply cords
Legend
Tip: Always notify affected users that the Controller will be powered off.
Open the Controller Top Cover
1
Fully loosen the two captive thumb screws at the back of the top cover
using the Phillips number 2 screwdriver, if necessary.
Figure 106: Captive thumb screws to remove the top cover
1 Power supply cords
2 Power supply handle
Controller Replacement Procedures
141
