MAINTENANCE MANUAL > Adjustment > Adjustment Items > [HEAD ADJUST] STAGGER ADJUST
SWJ-320S
Model
Issued 2013.03.08 Revised
4.2.6 [HEAD ADJUST] STAGGER ADJUST

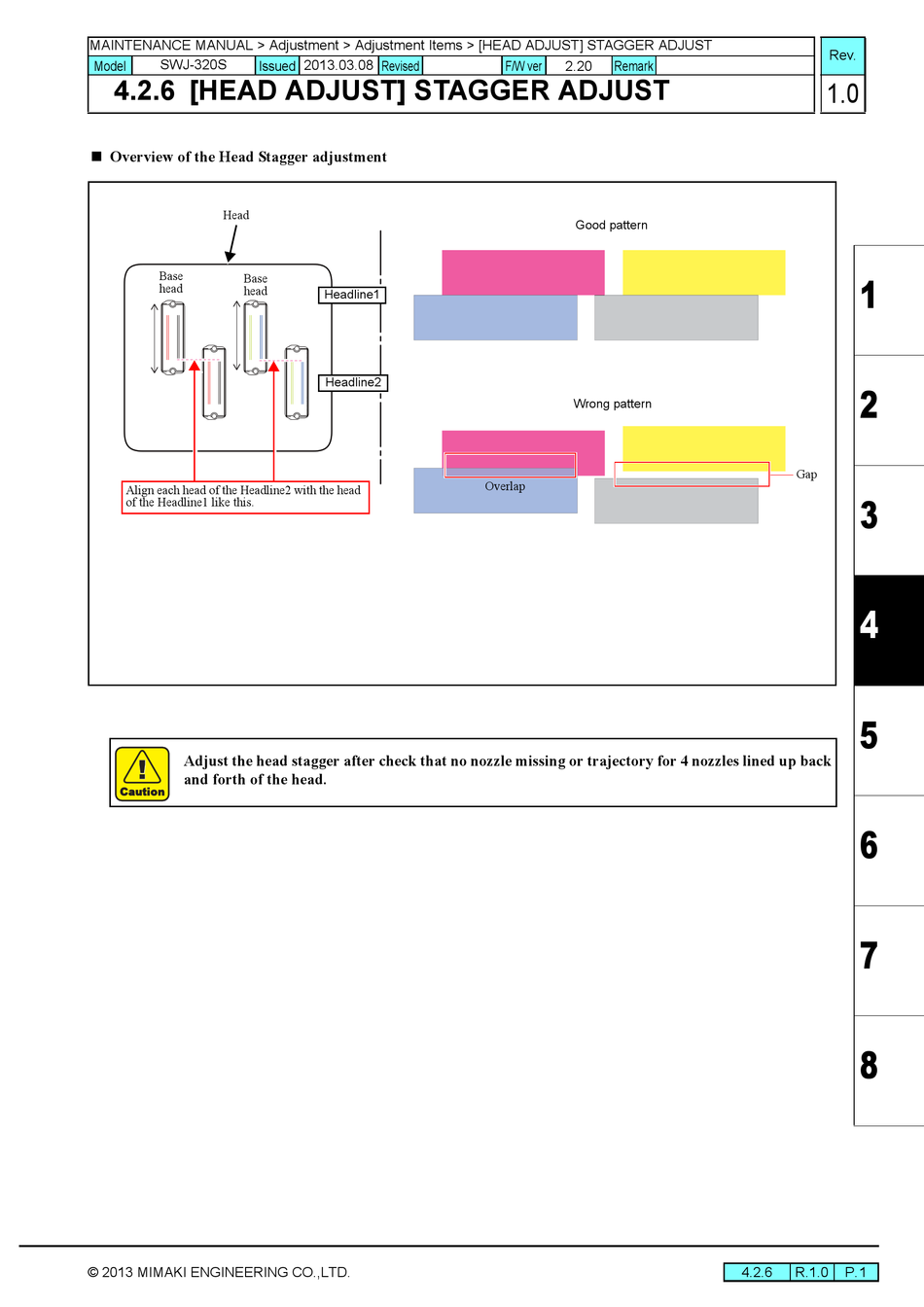

Overview of the Head Stagger adjustment
Head
Base
Base
head
head
Align each head of the Headline2 with the head
of the Headline1 like this.
Adjust the head stagger after check that no nozzle missing or trajectory for 4 nozzles lined up back
and forth of the head.
© 2013 MIMAKI ENGINEERING CO.,LTD.
Headline1
Headline2
Overlap
F/W ver
2.20
Remark
Good pattern
Wrong pattern
Rev.
1.0
1
2
Gap
3
4
5
6
7
8
4.2.6
R.1.0
P.1
