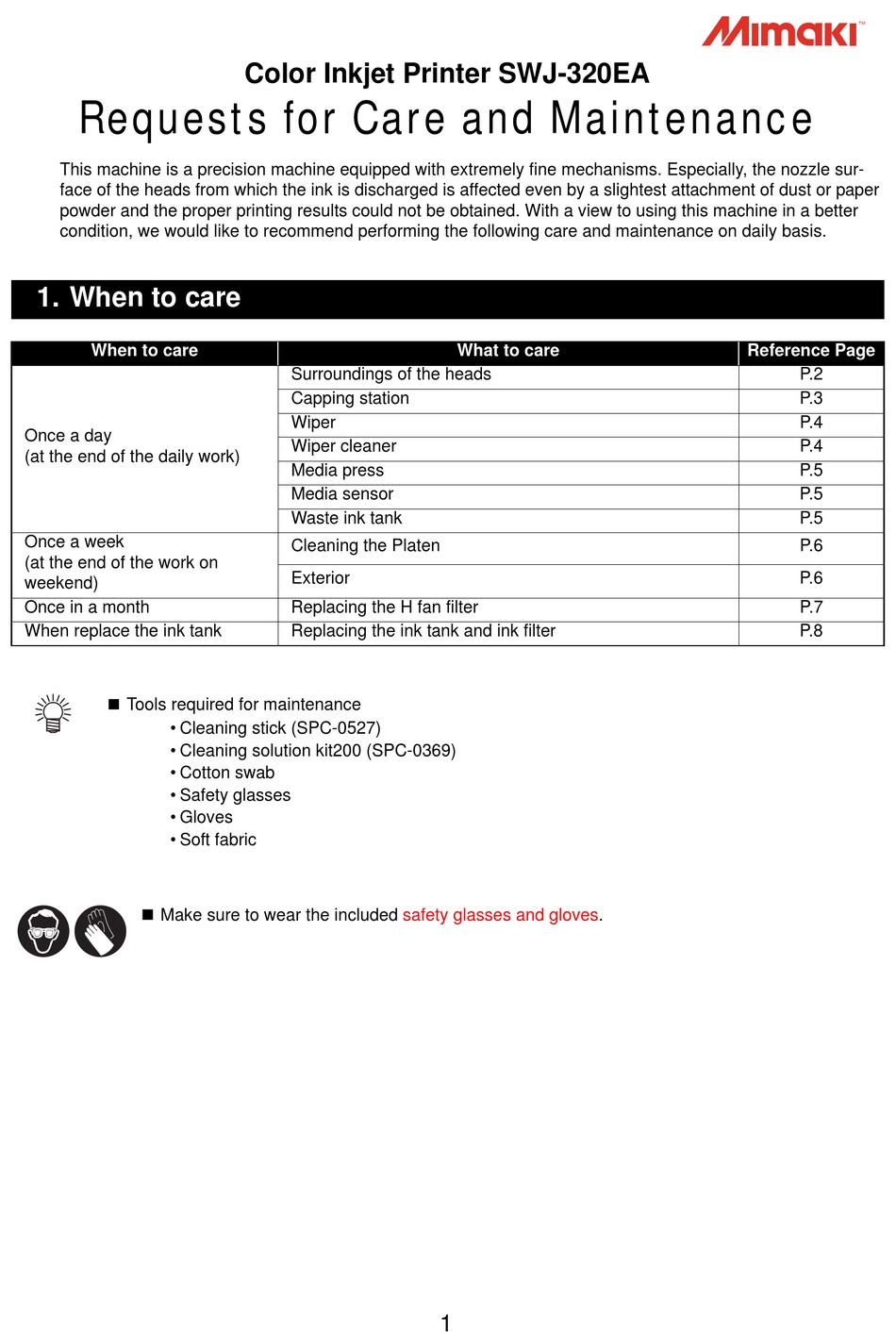

Requests for Care and Maintenance
This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur-
face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper
powder and the proper printing results could not be obtained. With a view to using this machine in a better
condition, we would like to recommend performing the following care and maintenance on daily basis.
1. When to care
When to care
Once a day
(at the end of the daily work)
Once a week
(at the end of the work on
weekend)
Once in a month
When replace the ink tank
Tools required for maintenance
• Cleaning stick (SPC-0527)
• Cleaning solution kit200 (SPC-0369)
• Cotton swab
• Safety glasses
• Gloves
• Soft fabric
Make sure to wear the included

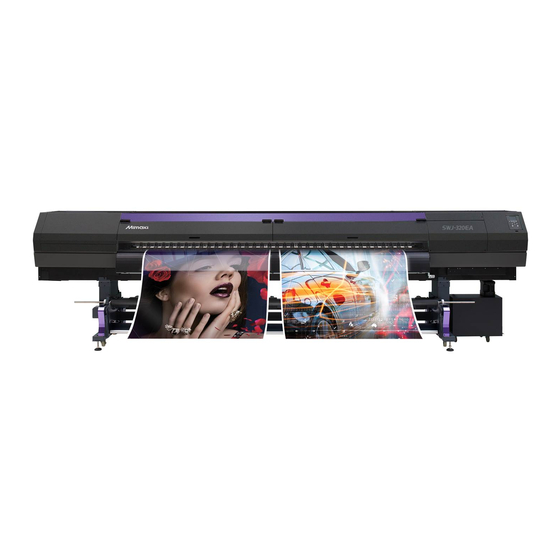

Color Inkjet Printer SWJ-320EA
Surroundings of the heads
Capping station
Wiper
Wiper cleaner
Media press
Media sensor
Waste ink tank
Cleaning the Platen
Exterior
Replacing the H fan filter
Replacing the ink tank and ink filter
safety glasses and
What to care
gloves.
1
Reference Page
P.2
P.3
P.4
P.4
P.5
P.5
P.5
P.6
P.6
P.7
P.8
Advertisement
Table of Contents
Related Manuals for MIMAKI SWJ-320EA
Summary of Contents for MIMAKI SWJ-320EA
- Page 1 Color Inkjet Printer SWJ-320EA Requests for Care and Maintenance This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur- face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper powder and the proper printing results could not be obtained.
-
Page 2: Daily Care
2. Daily care • When possible, use the cleaning stick (SPC-0527) for cleaning around the head/ capping station/ wiper. Using the other cotton bud may attach lint, then it may damage the machine. • Be sure to perform maintenance for the ink cap and the wiper of capping station every day. If you leave it dirty, dirt may adhere to the nozzle surface, or, dust and dry ink may be rubbed against the nozzle. - Page 3 (2) Capping Station ("Cleaning the Wiper and Cap" Chapter 4 of the Operation Manual) The surrounding area of the cap is also liable to be stained by the dust and ink. It is recommended to clean the head frequently using the cleaning liquid for maintenance suitable for the ink used to avoid the stains on the head.
- Page 4 (3) Wiper ("Cleaning the Wiper and Cap” Chapter 4 of the Operation Manual) On the wiper, the ink, dust and paper powder are liable to accumulate. Check the state of the wiper and if it is stained, clean it. Move the carriage and open the lower right Right side maintenance cover maintenance cover.
- Page 5 (5) Media press (“Cleaning the Media Press” Chapter 4 of the Operation Manual) When the cut dust of the media and other dusts accumulate between the media holder and the platen, it could cause the risks that the transfer of the media could not be performed prop- erly or such dusts stick to the nozzles and this could interfere the proper printings.
-
Page 6: Periodically Care (Once A Week)
3. Periodically care (Once a week) Users are advised to perform the maintenance works described below once a week so that the printer will keep its high performance and accuracy over an extended period of its life. (1) Platen (“Cleaning the Platen” Chapter 4 of the Operation Manual) Continuing to use the media while it is dirty may cause media to be fed incorrectly, or rubbing dirt or solid ink onto the head nozzle surface, resulting in discharge fail-... -
Page 7: Periodically Care (Once In A Month)
4. Periodically care (once in a month) (1) Replacing the H fan filter Replace it once in a week or two weeks. Move the carriage and open the rightside Right side maintenance cover maintenance cover. • Refer to the Step 1 to 4 of Chapter 4 “replace the H fan filter”... -
Page 8: Replacing The Ink Filter (When Replace The Ink Tank)
5. Replacing the ink filter (When replace the ink tank) To keep the ink in good quality in the ink tank, you need to replace the ink tank annually. When an appropriate warning message appears, be sure to replace tank in the following procedure: •... - Page 9 • Do not tighten the joint too much. Otherwise, the filter might be damaged. Be careful. • Do not pour the ink remaining in the removed ink tank into the new tank. • Request that an industrial waste disposal company process the disposal ink.
-
Page 10: Storage Of Media
6. Storage of media Media should be stored in the little dust area, and not in direct sunlight. Avoid storing the media in the area with high temperature and high humidity. 7. Storage of ink bottle Be careful of the followings to store. •... -
Page 11: Recovery Method Of Defective Nozzle Discharge
9. Recovery method of defective nozzle discharge When this printer has not been used for an extended period of time, or depending on the environmental tem- perature, the discharge at the nozzles could become unstable. In such a case, the following methods may be taken to recover the status of the nozzles. - Page 12 10. Supplies Name of part Part codes CS100-C-BB Solvent ink CS100 Cyan ink (2L bottle) CS100-M-BB Solvent ink CS100 Magenta ink (2L bottle) CS100-Y-BB Solvent ink CS100 Yellow ink (2L bottle) CS100-K-BB Solvent ink CS100 Black ink (2L bottle) CS200-C-BB Solvent ink CS200 Cyan ink (2L bottle) CS200-M-BB Solvent ink CS200 Magenta ink (2L bottle)
-
Page 13: Safety Precautions
11. Safety Precautions CAUTION Make sure to wear the included safety glasses and gloves. If ink should come into your eyes, immediately rinse with plenty of clean water for more than 15 minutes and rinse thoroughly to the back of the eyelids. Also, please consult a doctor as soon as possible. - Page 14 Memo...
- Page 15 Memo...
- Page 16 You can also download the latest manual from our website. 2018 MIMAKI ENGINEERING CO., LTD. D203280-12-03122020 FW :1.5...
