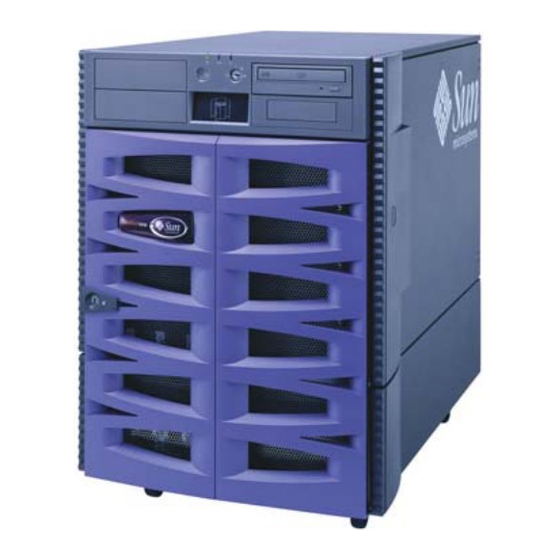

Sun Fire
V890 Server
Service Manual
Sun Microsystems, Inc.
www.sun.com
Part No. 817-3957-12
October 2005 Revision A
Submit comments about this document at:
http://www.sun.com/hwdocs/feedback

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fire V890 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Fire V890

Summary of Contents for Sun Microsystems Fire V890

  • Page 1 ™ Sun Fire V890 Server Service Manual Sun Microsystems, Inc. www.sun.com Part No. 817-3957-12 October 2005 Revision A Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
  • Page 2 Copyright 2005 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, Californie 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie qui est décrit dans ce document. En particulier, et sans la limitation, ces droits de propriété...

  • Page 3: Table Of Contents

    Contents Regulatory Compliance Statements xvii Declaration of Conformity xxi Preface xxiii Preparing to Service the System 1 How to Power On the System 2 Before You Begin 2 What to Do 2 What Next 4 How to Power Off the System 5 What to Do 5 About Hot-Pluggable and Hot-Swappable Components 6...
  • Page 4 Before You Begin 26 What to Do 26 Tools Required for Installation and Service 28 Servicing the Motherboard Side Components 29 How to Remove a CPU/Memory Board 30 Before You Begin 30 Sun Fire V890 Server Service Manual • October 2005...
  • Page 5 What to Do 30 What Next 34 How to Install a CPU/Memory Board 34 Before You Begin 34 What to Do 35 What Next 39 How to Remove a Memory Module 40 Before You Begin 40 What to Do 40 What Next 43 How to Install a Memory Module 44 Before You Begin 44...
  • Page 6 How to Install the Motherboard Fan Status Flex Circuit 65 Before You Begin 65 What to Do 65 What Next 66 How to Remove the Motherboard 66 Before You Begin 66 Sun Fire V890 Server Service Manual • October 2005...
  • Page 7 What to Do 66 What Next 70 How to Install the Motherboard 70 Before You Begin 70 What to Do 70 What Next 74 Servicing the Input/Output Board Side Components 75 How to Remove an I/O Fan Tray 76 Before You Begin 76 What to Do 76 What Next 77 How to Install an I/O Fan Tray 78...
  • Page 8 How to Install the PCI External LED Flex Circuit 107 Before You Begin 107 What to Do 107 What Next 108 How to Remove the I/O Fan LED Flex Circuit 109 viii Sun Fire V890 Server Service Manual • October 2005...
  • Page 9 Before You Begin 109 What to Do 109 What Next 110 How to Install the I/O Fan LED Flex Circuit 111 Before You Begin 111 What to Do 111 What Next 112 How to Remove the System ID PROM 112 Before You Begin 112 What to Do 113 What Next 113...
  • Page 10 How to Remove a Power Supply 155 Before You Begin 156 What to Do 156 What Next 160 How to Install a Power Supply 160 What to Do 161 What Next 162 Sun Fire V890 Server Service Manual • October 2005...
  • Page 11 How to Remove the System Status Assembly 163 Before You Begin 163 What to Do 164 What Next 166 How to Install the System Status Assembly 166 Before You Begin 166 What to Do 166 What Next 166 Removing and Installing Backplanes and Cables 167 How to Remove the Expansion FC-AL Backplane 168 Before You Begin 168 What to Do 168...
  • Page 12 Configuration Rules 223 About PCI Cards and Buses 225 Configuration Rules 228 About the System Controller Card and RSC Software 229 Configuration Rules 230 About Power Supplies 231 Configuration Rules 233 Sun Fire V890 Server Service Manual • October 2005...
  • Page 13 About Fan Trays 234 Configuration Rules 236 About Removable Media Devices 237 About Serial Ports 238 About USB Ports 239 About Hardware Jumpers 240 About Serial Port Jumpers 241 About Flash PROM Jumpers 242 System I/O Board 243 FC-AL Disk Backplane 246 Illustrated Parts Breakdown 247 Part Numbers 248 Assembly Illustrations 252...
  • Page 14 System Controller Ethernet Connector Signals 301 Reference for the System Controller Serial Connector 302 System Controller Serial Connector Diagram 302 System Controller Serial Connector Signals 302 System Specifications 303 Reference for Physical Specifications 304 Sun Fire V890 Server Service Manual • October 2005...
  • Page 15 Reference for Electrical Specifications 304 Reference for Environmental Requirements 305 Reference for Agency Compliance Specifications 306 Reference for Clearance and Service Access Specifications 307 Safety Precautions 309 Safety Agency Compliance Statements 310 Contents...
  • Page 16 Sun Fire V890 Server Service Manual • October 2005...

  • Page 17: Regulatory Compliance Statements

    FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP) cables. Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
  • Page 18 ICES-003 Class B Notice - Avis NMB-003, Classe B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. xviii Sun Fire V890 Server Service Manual • October 2005...

  • Page 19: Bsmi Class A Notice

    BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Regulatory Compliance Statements...
  • Page 20 Sun Fire V890 Server Service Manual • October 2005...

  • Page 21: Declaration Of Conformity

    Declaration of Conformity Compliance Model Number: Product Family Name: Sun Fire V890 European Union This equipment complies with the following requirements of the EMC Directive 89/336/EEC: As Telecommunication Network Equipment (TNE) in both Telecom Centers and Other Than Telecom Centers per (as applicable): EN300-386 V.1.3.1 (09-2001) Required Limits:...
  • Page 22 Sun Fire V890 Server Service Manual • October 2005...

  • Page 23: Preface

    Service providers who would like more general information about the system should refer to the appropriate chapter or section in the Sun Fire V890 Server Owner’s Guide. xxiii...

  • Page 24: How This Book Is Organized

    Refer to one or more of the following for this information: Software documentation that you received with your system ■ Solaris™ Operating System documentation, which is at ■ http://docs.sun.com xxiv Sun Fire V890 Server Service Manual • October 2005...

  • Page 25: Typographic Conventions

    Shell Prompts Shell Prompt C shell machine-name% C shell superuser machine-name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Typographic Conventions Typeface Meaning Examples The names of commands, files, Edit your.login file. AaBbCc123 and directories; on-screen Use ls -a to list all files. computer output % You have mail.

  • Page 26: Related Documentation

    Sun Fire V890 Dynamic Reconfiguration User’s Guide OpenBoot 4.x Command Reference Manual OpenBoot 4.x Quick Reference OpenBoot PROM Enhancements for Diagnostic Operation Remote System Sun Remote System Control (RSC) 2.2 User’s Guide Monitoring and Control xxvi Sun Fire V890 Server Service Manual • October 2005...

  • Page 27: Sun Welcomes Your Comments

    Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to: http://www.sun.com/hwdocs/feedback Please include the title and part number of your document with your feedback: Sun Fire V890 Server Service Manual, part number 817-3957-12 Preface xxvii...
  • Page 28 Sun Fire V890 Server Service Manual • October 2005...

  • Page 29: Preparing To Service The System

    C H A P T E R Preparing to Service the System This chapter tells you what you need to know about preparing for and completing service procedures. Note – Except for removing and installing power supplies and disk drives, this system must be serviced only by qualified service personnel.

  • Page 30: How To Power On The System

    1. Turn on power to any peripherals and external storage devices. 2. Turn on power to the alphanumeric terminal or local graphics console, if present. Sun Fire V890 Server Service Manual • October 2005...
  • Page 31 (default) configuration, refer to OpenBoot PROM Enhancements for Diagnostic Operation Guide, which is included on the Sun Fire V890 Documentation CD. Diagnostics position will enable the standard default OpenBoot configuration for running diagnostic tests. Your system will automatically run maximum POST and OpenBoot Diagnostics tests and display the output.

  • Page 32: What Next

    Normal position, try restarting the system in the Diagnostics mode to determine the source of the problem. Turn the front panel keyswitch to the Diagnostics position and power cycle the system. See: “How to Power Off the System” on page 5 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 33: How To Power Off The System

    “How to Power On the System” on page 2 ■ How to Power Off the System What to Do 1. Notify users that the system will be powered down. 2. Back up the system files and data, if necessary. 3. Ensure that the front panel keyswitch is in the Normal or Diagnostics position. Normal position Diagnostics...

  • Page 34: About Hot-Pluggable And Hot-Swappable Components

    7. Remove the key from the keyswitch and keep it in a secure place. About Hot-Pluggable and Hot-Swappable Components Sun Fire V890 systems feature a variety of components that can be serviced while the machine is running. Hot-pluggable components are components that a qualified service technician can install or remove while the system is running, without affecting the rest of the system’s capabilities.

  • Page 35: Fan Trays And Power Supplies

    AC power cords. Fan Trays and Power Supplies Sun Fire V890 fan trays and power supplies are hot-swappable—they can be removed or inserted at any time without requiring prior software preparations. Keep in mind that a power supply is not considered hot-swappable unless it is part of an N+1 redundant power configuration—a system configured with the third power...

  • Page 36: Disk Drives

    A5x00 series disk arrays or Sun Fire V890 internal storage arrays. For more information about luxadm, refer to the Sun Fire V890 Server Owner’s Guide. For complete disk hot-plug procedures, refer to Platform Notes: Using luxadm Software, which is available on the Sun Fire V890 Documentation CD. Refer also to the Sun Fire V890 Server Product Notes for late-breaking details.
  • Page 37 Solaris 8 7/01 Operating System or a subsequent release that supports Sun Fire V890 PCI hot-plug operations. Do not attempt to hot-plug a PCI card until you are certain that its device drivers provide the proper support; otherwise, you may cause a system panic.

  • Page 38: Pci Hot-Plug User Interfaces

    For detailed PCI hot-plug procedures, refer to the Sun Fire V890 Dynamic Reconfiguration User’s Guide, which is available at http://docs.sun.com, under Solaris on Sun Hardware. Refer to the Sun Fire V890 Server Product Notes for late- breaking details. How to Initiate a Reconfiguration Boot...

  • Page 39: Before You Begin

    This requirement does not apply to any component that is: Installed or removed as part of a hot-plug operation ■ Installed or removed before the operating system is installed ■ Installed as an identical replacement for a component that is already recognized ■...
  • Page 40 To customize the standard configuration after initial power-on, refer to the OpenBoot PROM Enhancements for Diagnostic Operation guide, which is included on the Sun Fire V890 Documentation CD. Sun Fire V890 Server Service Manual • October 2005...

  • Page 41: What Next

    6. At the ok prompt, type: ok env-on Environmental monitor is ON ok boot -r The env-on command re-enables the OpenBoot environmental monitor, which may have been disabled as a result of the abort key sequence. The boot -r command rebuilds the device tree for the system, incorporating any newly installed options so that the operating system will recognize them.

  • Page 42: About Power Button And Keyswitch Settings

    Note – Whenever possible, you should use the graceful shutdown method. Forcing an immediate hardware shutdown may cause disk drive corruption and loss of data. Use this method only as a last resort. Power button Sun Fire V890 Server Service Manual • October 2005...

  • Page 43: Security Keyswitch

    (default) configuration, refer to OpenBoot PROM Enhancements for Diagnostic Operation Guide, which is included on the Sun Fire V890 Documentation Locked The Locked setting: • Disables the system Power button to prevent unauthorized users from powering the system on or off •...

  • Page 44: About Setting Up A Console

    For information about establishing a tip connection, refer to the OpenBoot 4.x Command Reference Manual, which is available at http://docs.sun.com, under Solaris on Sun Hardware. Refer to the Sun Fire V890 Server Product Notes for late- breaking details. 3. Install a local graphics console on your server.

  • Page 45: How To Attach An Alphanumeric Terminal

    RSC provides remote system administration for geographically distributed or physically inaccessible systems. For additional details, refer to your Sun Fire V890 Server Owner’s Guide. Note – You cannot use an RSC console to perform the initial installation of the Solaris OS.

  • Page 46: What Next

    ■ See the documentation accompanying your terminal for more information. What Next You can now issue system commands and view system messages. Continue with your installation or diagnostic procedure as needed. Sun Fire V890 Server Service Manual • October 2005...

  • Page 47: How To Configure A Local Graphics Console

    How to Configure a Local Graphics Console Before You Begin If your server is configured without a local alphanumeric terminal, you need to install a local graphics console in order to install the operating system and to run diagnostic tests. Alternatively, you can attach an alphanumeric (ASCII) terminal, create a tip connection from another Sun system, or set up an RSC console.
  • Page 48 4. Attach the keyboard cable to one of the system’s USB ports. 5. Attach the mouse cable to the system’s remaining USB port, or to a USB port on the keyboard, if applicable. Sun Fire V890 Server Service Manual • October 2005...

  • Page 49: What Next

    What Next You can now issue system commands and view system messages. Continue with your service or diagnostic procedure as needed. How to Open and Remove a Side Door Before You Begin If you are not performing a hot-plug procedure, complete the following task: “How to Power Off the System”...

  • Page 50: What Next

    What Next To reassemble the system side door, complete the following task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 51: How To Close A Side Door

    How to Close a Side Door What to Do 1. If you removed the side door, remount it to the chassis. Position the side door mounting pins over the corresponding holes in the chassis rear panel and lower the side door into place. 2.
  • Page 52 3. Lock the side door with the system key. Sun Fire V890 Server Service Manual • October 2005...

  • Page 53: Locating Rear Panel Features

    A grounding screw is located just above the center power supply. When installing a a Sun Fire V890 server into a rack, or connecting the server to an external storage array, be sure to connect an appropriate grounding strap between the server’s grounding screw and the grounding screw on the rack enclosure or external storage array.

  • Page 54: How To Avoid Electrostatic Discharge

    Removing and installing the power distribution board ■ The AC power cord provides a discharge path for static electricity, so it should remain plugged in except when you are servicing the parts noted above. Sun Fire V890 Server Service Manual • October 2005...
  • Page 55 2. Use an antistatic mat or similar surface. When performing any option installation or service procedure, place static-sensitive parts, such as boards, cards, and disk drives, on an antistatic surface. The following items can be used as an antistatic surface: The bag used to wrap a Sun replacement part ■...

  • Page 56: Tools Required For Installation And Service

    Grounding wrist or foot strap ■ The latter two items help protect the server against damage due to electrostatic discharge. For more information, see “How to Avoid Electrostatic Discharge” on page Sun Fire V890 Server Service Manual • October 2005...

  • Page 57: Servicing The Motherboard Side Components

    C H A P T E R Servicing the Motherboard Side Components This chapter describes how to remove and install the system motherboard and components on the motherboard side of the system. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown”...

  • Page 58: How To Remove A Cpu/Memory Board

    For more information, see “About CPU/Memory Boards” on page 218. Note – Use only Sun Fire V890 CPU/Memory boards in the Sun Fire V890 system. Before You Begin Complete these tasks: “How to Power Off the System” on page 5 ■...
  • Page 59 2. Loosen the two captive screws securing the CPU/Memory board. 3. Rotate the green CPU/Memory board ejection levers outward so that the CPU/Memory board connectors disengage from the motherboard. Chapter 2 Servicing the Motherboard Side Components...
  • Page 60 Caution – A CPU air baffle must be installed into an empty CPU/Memory board slot to ensure proper cooling of the system. Spare CPU air baffles are located under the CPU side chassis top. Sun Fire V890 Server Service Manual • October 2005...
  • Page 61 a. Align the air baffle so that the tab on the end is under its slot in the chassis. b. Rotate the air baffle into position. c. Push in the plastic pin on the air baffle. 7. If you are not immediately replacing the CPU/Memory board, install a CPU/Memory board dust cover on that slot’s motherboard CPU/Memory board connectors.

  • Page 62: What Next

    CPU/Memory board in that slot may damage the motherboard and the CPU/Memory board. Note – Use only Sun Fire V890 CPU/Memory boards in the Sun Fire V890 system. Complete the following tasks: “How to Power Off the System” on page 5 ■...

  • Page 63: What To Do

    If you are replacing a faulty CPU/Memory board with a new one, you must transfer the memory modules from the faulty CPU/Memory board to the new one. See the following sections for more information about transferring memory modules: “About Memory Modules” on page 221 ■...
  • Page 64 Pull the plastic tab on the air baffle and rotate the baffle from its slot. b. Place the CPU air baffle into an empty CPU air baffle slot on the underside of the chassis top. Sun Fire V890 Server Service Manual • October 2005...
  • Page 65 4. Make sure that the green ejection levers on the CPU/Memory board are rotated out at least 90 degrees. 5. Slide the CPU/Memory board into the guides in the chassis. Slide the board into the system until the connectors on the board begin to engage the sockets on the motherboard and the ejection levers begin to contact the bracket.
  • Page 66 6. Push in the two ejection levers simultaneously until the board is fully engaged in its slot. 7. Hand-tighten the two captive screws on the CPU/Memory board. Sun Fire V890 Server Service Manual • October 2005...

  • Page 67: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation Chapter 2 Servicing the Motherboard Side Components...

  • Page 68: How To Remove A Memory Module

    Do not touch the components or any metal parts, including the gold contacts on the bottom edge of the module. Always wear a grounding strap when you handle the modules. Sun Fire V890 Server Service Manual • October 2005...
  • Page 69 1. Remove the plastic cover on the CPU/Memory board. Push the tabs inward until you can lift the cover free of the CPU/Memory board shroud. 2. Identify the memory module that you want to remove. Chapter 2 Servicing the Motherboard Side Components...
  • Page 70 Apply even pressure on both levers. 4. Grasp the top corners of the memory module and pull it up and out of its socket. 5. Place the memory module on an antistatic mat. Sun Fire V890 Server Service Manual • October 2005...

  • Page 71: What Next

    6. If you are not installing replacement memory modules immediately, replace the plastic cover on the CPU/Memory board. To fully engage the tabs on the cover, push both tabs at the same time until you hear a click. What Next To replace a memory module, complete this task: “How to Install a Memory Module”...

  • Page 72: How To Install A Memory Module

    Do not touch the components or any metal parts, including the gold contacts on the bottom edge of the module. Always wear a grounding strap when you handle the modules. Sun Fire V890 Server Service Manual • October 2005...
  • Page 73 1. Remove the plastic cover on the CPU/Memory board. Push the tabs inward until you can lift the cover free of the CPU/Memory board shroud. 2. Locate the slot into which you will install the memory module. 3. Rotate outward the memory module ejection levers for that slot. Chapter 2 Servicing the Motherboard Side Components...
  • Page 74 5. Push firmly and evenly on both ends of the memory module until its bottom edge is firmly seated in the socket. You will hear a click when the ejection levers are in the locked position. Sun Fire V890 Server Service Manual • October 2005...

  • Page 75: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation Chapter 2 Servicing the Motherboard Side Components...

  • Page 76: How To Remove A Cpu Fan Tray

    For additional details, see “About Hot-Pluggable and Hot-Swappable Components” on page Note – Use only Sun Fire V890 CPU fan trays in the Sun Fire V890 system. Before You Begin If you are not performing a hot-swap procedure, complete the following task: “How to Power Off the System”...
  • Page 77 2. Loosen the two captive screws holding the CPU fan tray in the chassis. 3. Slide the fan tray out from the system. Caution – If you are performing a hot-swap procedure, do not put your hand into the empty fan bay. The fans in the populated fan tray are still spinning. Caution –...

  • Page 78: What Next

    For additional details, see “About Hot-Pluggable and Hot-Swappable Components” on page Note – Use only Sun Fire V890 CPU fan trays in the Sun Fire V890 system. Before You Begin If you are not performing a hot-swap procedure, complete the following task: “How to Power Off the System”...

  • Page 79: What To Do

    What to Do 1. Identify the slot into which you want to install the CPU fan tray. The primary CPU fan tray occupies CPU fan tray slot 1. For information about CPU fan tray LEDs, see “About Fan Tray LEDs” on page 266.

  • Page 80: How To Remove A Motherboard Fan Tray

    1. Identify the motherboard fan tray that you want to remove. The primary motherboard fan tray occupies slot 5. The fan tray numbers are stamped into the chassis sheet metal at the base of each fan tray. Sun Fire V890 Server Service Manual • October 2005...
  • Page 81 2. Unplug the motherboard fan tray cable from the fan tray you are going to remove. If you are removing a redundant fan tray, drape the cable away from the other fan. Caution – If you are performing a hot-swap procedure, do not put your hand into the empty fan bay.

  • Page 82: What Next

    To replace the motherboard fan tray, complete this task: “How to Install a Motherboard Fan Tray” on page 55 ■ To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 83: How To Install A Motherboard Fan Tray

    How to Install a Motherboard Fan Tray Note – The motherboard fan tray is also referred to as the I/O bridge fan tray by the system’s firmware and environmental software. For more information about motherboard fan trays, see “About Fan Trays” on page 234.
  • Page 84 The fan in the populated fan tray is still spinning. 5. Tighten the captive screw on the fan tray. 6. Connect the motherboard fan tray cable to its connector. Sun Fire V890 Server Service Manual • October 2005...

  • Page 85: What Next

    What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ If you installed this part as a new option while the system was powered off, you need to perform a reconfiguration boot. A reconfiguration boot is required in order for the operating system to recognize the new device.

  • Page 86: What To Do

    What to Do 1. Disconnect the CPU fan status cable from the top of the assembly. Press the tab on the cable connector. Sun Fire V890 Server Service Manual • October 2005...

  • Page 87: What Next

    2. Remove the two Phillips screws securing the assembly to the chassis. 3. Carefully pull the fan status assembly out of the system and place it on an antistatic mat. What Next To replace the CPU fan status assembly, complete this task: “How to Install the CPU Fan Status Assembly”...

  • Page 88: How To Install The Cpu Fan Status Assembly

    The CPU fan status cable connector is on the top of the assembly. The sheet metal bracket is keyed on the bottom so that you can install the assembly only one way. 2. Fasten the two Phillips screws that attach the assembly to the chassis. Sun Fire V890 Server Service Manual • October 2005...

  • Page 89: What Next

    3. Connect the fan tray status cable to the assembly. What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ How to Remove the CPU/Memory Board Status Assembly Before You Begin Complete these tasks: “How to Power Off the System”...

  • Page 90: What To Do

    3. Place the status assembly on an antistatic mat. What Next To replace the CPU/Memory board status assembly, complete this task: “How to Install the CPU/Memory Board Status Assembly” on page 63 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 91: How To Install The Cpu/Memory Board Status Assembly

    How to Install the CPU/Memory Board Status Assembly Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Connect the CPU/Memory board status cable to the connector on the back of the status assembly.

  • Page 92: What Next

    4. Place the flex circuit on an antistatic mat. What Next To replace the motherboard fan status flex circuit, complete this task: “How to Install the Motherboard Fan Status Flex Circuit” on page 65 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 93: How To Install The Motherboard Fan Status Flex Circuit

    How to Install the Motherboard Fan Status Flex Circuit Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Position the flex circuit in the system and fasten the two Phillips screws that secure it to its bracket.

  • Page 94: What Next

    3. Disconnect the motherboard power cable (P9) from the motherboard at connector J4701 (48 Volt Power). 4. Disconnect the base backplane FC-AL cable (A and B) from the motherboard at connectors A(FCALIN) and B(FCALOUT). Sun Fire V890 Server Service Manual • October 2005...
  • Page 95 5. Remove the Gigabit Ethernet housing from the rear panel. Remove the two Phillips screws securing the housing to the chassis rear panel. Chapter 2 Servicing the Motherboard Side Components...
  • Page 96 6. Remove the 15 M4 Phillips screws securing the motherboard to the centerplane. Sun Fire V890 Server Service Manual • October 2005...
  • Page 97 7. If the system I/O board is installed, disengage the motherboard from the system by rotating the two ejection levers away from the motherboard. 8. Remove the motherboard from the system. a. Carefully pull the motherboard away from the centerplane so that the plastic motherboard air duct slides off the metal motherboard air guide.

  • Page 98: What Next

    Carefully slide the plastic motherboard air duct over the metal motherboard air guide. c. Use the two guideposts that fit through two holes near the top of the motherboard to align the motherboard against the centerplane. Sun Fire V890 Server Service Manual • October 2005...
  • Page 99 3. If the system I/O board is installed, seat the motherboard in the system by evenly and firmly pushing on the top outer ends of the motherboard stiffener and ejection assembly. Caution – Do not push on the ejection levers to seat the motherboard in the system. Chapter 2 Servicing the Motherboard Side Components...
  • Page 100 Insert the top left and right screws and tighten them by two turns. d. Repeat this pattern for the remaining screws until they are all installed. e. Fully tighten the screws in the pattern described until the board is fully seated. Sun Fire V890 Server Service Manual • October 2005...
  • Page 101 5. Replace the two Phillips screws that secure the Gigabit Ethernet connector housing to the rear panel. 6. Connect the motherboard power cable (P8) to the motherboard at connector J4702 (Main Power). 7. Connect the motherboard power cable (P9) to the motherboard at connector J4701 (48 Volt Power).

  • Page 102: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation Sun Fire V890 Server Service Manual • October 2005...

  • Page 103: Servicing The Input/Output Board Side Components

    C H A P T E R Servicing the Input/Output Board Side Components This chapter describes how to remove and replace the system input/output (I/O) board and components on the I/O side of the system. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown”...

  • Page 104: How To Remove An I/O Fan Tray

    1. Identify the fan tray that you want to remove. The primary I/O fan tray is in slot 3. For information about I/O fan tray LEDs, see “About Fan Tray LEDs” on page 266. Sun Fire V890 Server Service Manual • October 2005...

  • Page 105: What Next

    2. Loosen the two captive Phillips screws securing the fan tray to the brackets. 3. Slide the fan tray out from the brackets. Caution – If you are performing a hot-swap procedure, do not put your hand into the empty fan bay. The fans in the populated fan tray are spinning. What Next Note –...

  • Page 106: How To Install An I/O Fan Tray

    The label on the I/O fan tray indicates the orientation of the fan tray. Caution – If you are performing a hot-swap procedure, do not put your hand into the empty fan bay. The fans in the populated fan tray are spinning. Sun Fire V890 Server Service Manual • October 2005...

  • Page 107: What Next

    3. Tighten the two captive Phillips screws that secure the fan tray to the brackets. What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ If you installed this part as a new option while the system was powered off, you need to perform a reconfiguration boot.

  • Page 108: How To Remove A Pci Card

    “About Hot-Pluggable and Hot-Swappable Components” on page 6 ■ Sun Fire V890 Dynamic Reconfiguration User’s Guide, which is available at ■ http://www.sun.com, under Solaris on Sun Hardware. Note – PCI and disk hot-plug operations are not supported when the system ok prompt is displayed.
  • Page 109 4. Pinch the PCI card retaining clip until it releases from the back of the card and rotate the clip outward. 5. Carefully pull the PCI card from the I/O board. Chapter 3 Servicing the Input/Output Board Side Components...

  • Page 110: What Next

    To replace the PCI card, complete this task: “How to Install a PCI Card” on page 83 ■ To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 111: How To Install A Pci Card

    “About Hot-Pluggable and Hot-Swappable Components” on page 6 ■ Sun Fire V890 Dynamic Reconfiguration User’s Guide, which is available at ■ http://www.sun.com, under Solaris on Sun Hardware] Note – PCI and disk hot-plug operations are not supported when the system ok prompt is displayed.

  • Page 112: What To Do

    Pinch the PCI card retaining clip until it releases from the top of the filler panel and rotate the clip outward. b. Slide the filler panel out from the rear panel. Sun Fire V890 Server Service Manual • October 2005...
  • Page 113 3. Insert the PCI card into the appropriate slot on the I/O board. If you are installing a PCI long card: a. Insert the faceplate side of the PCI card into the appropriate opening on the rear panel. At the same time, insert the other end of the card into the corresponding groove on the PCI card bracket.

  • Page 114: What Next

    5. If necessary, connect any internal cables to the PCI card’s internal connectors. 6. If necessary, connect any external cables to the PCI card. What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 115: How To Remove The System Controller Card

    For more details about PCI card hot-plug procedures and system requirements, “About Hot-Pluggable and Hot-Swappable Components” on page 6 ■ Sun Fire V890 Dynamic Reconfiguration User’s Guide, which is available at ■ http://www.sun.com, under Solaris on Sun Hardware If you installed this part as a new option while the system was powered off, you need to perform a reconfiguration boot.

  • Page 116: What To Do

    2. Locate the system controller card. The system controller card is installed in a slot on the system I/O board. It is labeled “SC” on the rear panel. System controller sot Sun Fire V890 Server Service Manual • October 2005...
  • Page 117 3. Disconnect any external cables attached to the faceplate of the system controller card. 4. Using a Phillips No. 1 screwdriver, remove the screw securing the card to the system rear panel. 5. Pull the system controller card from its slot. Hold the system controller card by the faceplate and its opposite edge, and pull up while carefully rocking the card from end to end until it is freed from its slot.

  • Page 118: What Next

    Caution – Do not apply excessive force to one end or one side of the card. Doing so could damage the card. 6. Place the system controller card on an antistatic mat. What Next To replace the system controller card, complete this task: Sun Fire V890 Server Service Manual • October 2005...

  • Page 119: How To Install The System Controller Card

    “How to Install the System Controller Card” on page 91 ■ How to Install the System Controller Card Caution – The system controller card is not a hot-pluggable component. You must shut down the system and disconnect all the power cords from the system before performing this procedure.
  • Page 120 I/O board. c. Push the card into the connectors on the system I/O board. Apply even pressure along the edge of the card. Sun Fire V890 Server Service Manual • October 2005...
  • Page 121 3. Secure the system controller card faceplate to the rear panel with the Phillips screw. 4. Connect the Ethernet and/or serial cable to the appropriate connector on the system controller card faceplate. 5. Reconnect the AC power cords to the power supplies. Chapter 3 Servicing the Input/Output Board Side Components...

  • Page 122: What Next

    “How to Close a Side Door” on page 23 ■ How to Remove the Sun StorEdge PCI Dual Fibre Channel Host Adapter Card For information about FC-AL host adapters, refer to your Sun Fire V890 Server Owner’s Guide. Before You Begin Complete these tasks: “How to Power Off the System”...
  • Page 123 3. Pinch the PCI card retaining clip until it releases from the back of the card and rotate the clip outward. Chapter 3 Servicing the Input/Output Board Side Components...
  • Page 124 6. If you are not immediately replacing the Sun StorEdge PCI Dual Fibre Channel Host Adapter card, install a PCI filler panel into the system rear panel. a. Slide a PCI filler panel into the slot on the system rear panel. Sun Fire V890 Server Service Manual • October 2005...

  • Page 125: What Next

    b. Rotate the PCI retaining clip over the back of the filler panel until it snaps into place. 7. If you are not immediately replacing the card, remove the Sun StorEdge PCI Dual Fibre Channel Host Adapter FC-AL cable from the system. a.

  • Page 126: How To Install The Sun Storedge Pci Dual Fibre Channel Host Adapter Card

    How to Install the Sun StorEdge PCI Dual Fibre Channel Host Adapter Card For information about FC-AL host adapters, refer to your Sun Fire V890 Server Owner’s Guide. Note – Do not use the internal port of the Sun StorEdge PCI Dual Fibre Channel Host Adapter card to connect to the Loop A port of an FC-AL disk backplane.

  • Page 127: What To Do

    What to Do 1. Locate the PCI slot for the Sun StorEdge PCI Dual Fibre Channel Host Adapter card. Note – For optimal performance, install the Sun StorEdge PCI Dual Fibre Channel Host Adapter card into a 66-MHz PCI slot (slot 7 or 8) on the I/O board. The Sun StorEdge PCI Dual Fibre Channel Host Adapter card will function in a 33-MHz or 66-MHz PCI slot.
  • Page 128 5. Rotate the PCI retaining clip over the back of the card faceplate until it snaps into place. Sun Fire V890 Server Service Manual • October 2005...
  • Page 129 6. If you are installing the card for the first time, route and connect the Sun StorEdge PCI Dual Fibre Channel Host Adapter FC-AL cable in the system in the following manner: a. Attach the three tie wraps provided with the Sun StorEdge PCI Dual Fibre Channel Host Adapter FC-AL cable onto the lances on the chassis power bay cover.

  • Page 130: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation How to Remove the PCI Internal LED...

  • Page 131: What Next

    2. Remove the three Phillips screws securing the flex circuit to the PCI card bracket and pull the flex circuit from the system. 3. Place the flex circuit on an antistatic mat. What Next To replace the PCI internal LED flex circuit, complete this task: “How to Install the PCI Internal LED Flex Circuit”...

  • Page 132: How To Install The Pci Internal Led Flex Circuit

    Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Align the PCI internal LED flex circuit with the PCI card bracket. Sun Fire V890 Server Service Manual • October 2005...

  • Page 133: What Next

    2. Replace the three Phillips screws that secure the flex circuit to the bracket. 3. Connect the PCI internal status cable (P37) to the connector on the back of the flex circuit. What Next To reassemble the system, complete this task: “How to Close a Side Door”...

  • Page 134: How To Remove The Pci External Led Flex Circuit

    1. Disconnect the PCI external status cable (P24) from the back of the PCI external LED flex circuit. 2. Remove the six Phillips screws securing the flex circuit to the rear panel. 3. Remove the flex circuit from the rear panel. Sun Fire V890 Server Service Manual • October 2005...

  • Page 135: What Next

    4. Place the flex circuit on an antistatic mat. What Next To replace the PCI external LED flex circuit, complete this task: “How to Install the PCI External LED Flex Circuit” on page 107 ■ How to Install the PCI External LED Flex Circuit Before You Begin Complete this task:...

  • Page 136: What Next

    3. Connect the PCI external status cable (P24) to the connector on the back of the flex circuit. What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 137: How To Remove The I/O Fan Led Flex Circuit

    How to Remove the I/O Fan LED Flex Circuit Before You Begin Complete these tasks: “How to Power Off the System” on page 5 ■ “How to Open and Remove a Side Door” on page 21 ■ “How to Avoid Electrostatic Discharge” on page 26 ■...

  • Page 138: What Next

    4. Place the flex circuit on an antistatic mat. What Next To replace the I/O fan LED flex circuit, complete this task: “How to Install the I/O Fan LED Flex Circuit” on page 111 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 139: How To Install The I/O Fan Led Flex Circuit

    How to Install the I/O Fan LED Flex Circuit Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Position the I/O fan LED flex circuit on the bottom I/O fan tray bracket. 2.

  • Page 140: What Next

    “How to Power Off the System” on page 5 ■ “How to Open and Remove a Side Door” on page 21 ■ “How to Avoid Electrostatic Discharge” on page 26 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 141: What To Do

    What to Do 1. Locate the system ID PROM module on the I/O board. 2. Pull the ID PROM module from its socket. 3. Place the ID PROM module on an antistatic mat. What Next To replace the system ID PROM, complete this task: “How to Install the System ID PROM”...

  • Page 142: How To Install The System Id Prom

    ID PROM with the existing host ID and Ethernet address. Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 143: What To Do

    What to Do 1. Carefully seat the system ID PROM module into its socket on the I/O board. The socket is keyed to ensure proper orientation of the ID PROM module. 2. Press evenly and firmly until the ID PROM module is fully seated in the socket. What Next To reassemble the system, complete this task: “How to Close a Side Door”...

  • Page 144: How To Remove The I/O Board

    1. Disconnect all AC power cords from the power supplies. Sun Fire V890 Server Service Manual • October 2005...
  • Page 145 2. Remove the eight PCI card dividers and set them aside. Hold the divider by the front edge and pull it out from the divider base. 3. Remove the PCI card bracket. a. Disconnect the PCI internal status cable (P36) from the I/O board at connector J3102(P37).
  • Page 146 For cable connector locations, see “Cable Connector Locations” on page 212. a. DVD-ROM cable (P1) from connector J3402(P1) b. I C cable (P18) from connector J3805(P18) c. System status assembly cable (P32) from connector J3803(P32) Sun Fire V890 Server Service Manual • October 2005...
  • Page 147 d. Fan power cable from connectors J3804(P6), J3807(P10), and J3806(P3) e. Fan status cable (P28) from connector J3801(P28) f. I/O signal cable (P26) from connector J3201(P26) g. I/O board remote sense cable (P29) from connector J3202(P29) h. I/O board power cable (P14) from connector J3203(P14) i.
  • Page 148 6. Remove the serial port plate from the rear panel. Remove the two Phillips screws securing the plate in the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 149 7. Remove the PCI divider card base. a. Remove the four Phillips screws securing the divider base to the centerplane. b. Pull the divider base from the system and set it aside. Chapter 3 Servicing the Input/Output Board Side Components...
  • Page 150 Caution – If the motherboard is not installed, hold the I/O board steady while removing the last few screws to prevent the I/O board from falling out of the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 151 9. If the motherboard is installed, disengage the I/O board from the motherboard by rotating outward the two green ejection levers on the top of the I/O board. 10. Remove the I/O board from the system. 11. Place the I/O board on an antistatic mat. 12.

  • Page 152: What Next

    Caution – Be sure that the I/O boards are on antistatic mats when you transfer the ID PROM. 2. Position the I/O board in the system against the centerplane. Use the pins on the back of the I/O board to align it in the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 153 3. If the motherboard is in the system, connect the I/O board to the motherboard connectors by firmly pushing on the I/O board stiffener/ejection assembly. Caution – Do not push on the ejection levers to seat the I/O board in the system. Chapter 3 Servicing the Input/Output Board Side Components...
  • Page 154 Insert the top left and right screws and tighten them by two turns. d. Insert the remaining screws and tighten them by two turns. e. Fully tighten the screws in the pattern described until the board is fully seated. Sun Fire V890 Server Service Manual • October 2005...
  • Page 155 5. Secure the PCI card divider base to the I/O board with four Phillips screws. Chapter 3 Servicing the Input/Output Board Side Components...
  • Page 156 6. Replace the serial port plate on the system rear panel. Replace the two Phillips screws that secure the plate to the rear panel. Sun Fire V890 Server Service Manual • October 2005...
  • Page 157 7. Replace the hex standoffs that secure the serial port plate to the system rear panel. 8. Reconnect the following cables to the I/O board: For cable connector locations, see “Cable Connector Locations” on page 212. a. I/O board power cable (P14) to connector J3203(P14) b.
  • Page 158 PCI card bracket. b. Push the card firmly into the tabs on the divider base. Sun Fire V890 Server Service Manual • October 2005...

  • Page 159: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation Chapter 3 Servicing the Input/Output Board Side Components...
  • Page 160 Sun Fire V890 Server Service Manual • October 2005...

  • Page 161: Removing And Installing Storage Devices

    The system’s disk drive hot-plug feature lets you remove a disk drive without shutting down the operating system or turning off the system power. For more information about disk drives, refer to the Sun Fire V890 Server Owner’s Guide. For more information about hot-plugging, see: “About Hot-Pluggable and Hot-Swappable Components”...

  • Page 162: What To Do

    6. Using your thumb and forefinger, push the drive latch upward to release the drive handle. Swing the handle away from the drive until you feel the drive connector disengage from the backplane. Do not use excessive force. Sun Fire V890 Server Service Manual • October 2005...

  • Page 163: What Next

    Caution – If you are hot-plugging the disk drive, after disconnecting it from the backplane, allow 30 seconds or so for the drive to spin down completely before removing it from the system. 7. Holding the drive by the handle, carefully slide it out of the drive bay. 8.

  • Page 164: How To Install A Disk Drive

    The system’s disk drive hot-plug feature lets you install a disk drive without shutting down the operating system or turning off the system power. For more information about disk drives, refer to the Sun Fire V890 Server Owner’s Guide. For more information about hot-plugging, see: “About Hot-Pluggable and Hot-Swappable Components”...
  • Page 165 5. Release the drive handle on the disk drive to be installed. Use your thumb and forefinger to pinch the drive latch upward to open it. 6. Align the disk drive with its drive bay. Orient the drive so that the drive handle’s hinge faces the bottom of the drive bay. 7.

  • Page 166: What Next

    “How to Power Off the System” on page 5 ■ “How to Open and Remove a Side Door” on page 21 ■ “How to Avoid Electrostatic Discharge” on page 26 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 167: What To Do

    What to Do 1. Remove the removable media bezel from the front of the system. Remove the two Phillips screws securing the bezel to the front of the system. 2. Remove the cables connected to the back of the DVD-ROM drive. Chapter 4 Removing and Installing Storage Devices...
  • Page 168 3. Remove the two Phillips screws securing the DVD-ROM drive to the chassis. 4. Pull the DVD-ROM drive from the system. The DVD-ROM drive slides out on guides located on its sides. Sun Fire V890 Server Service Manual • October 2005...

  • Page 169: What Next

    What Next To replace the DVD-ROM drive, complete this task: “How to Install the DVD-ROM Drive” on page 141 ■ To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ If you are not replacing this part right away, you need to perform a reconfiguration boot in order for the operating system to recognize the configuration change.

  • Page 170: What To Do

    If you are replacing a faulty DVD-ROM drive, transfer the guide rails to the new drive. 3. Align the DVD-ROM drive with the guides in the DVD-ROM drive slot. 4. Slide the drive into the slot. Sun Fire V890 Server Service Manual • October 2005...
  • Page 171 5. Insert and tighten the two Phillips screws that secure the DVD-ROM drive to the chassis. 6. Connect the DVD-ROM drive cables to the back of the device. Chapter 4 Removing and Installing Storage Devices...

  • Page 172: What Next

    “How to Power Off the System” on page 5 ■ “How to Open and Remove a Side Door” on page 21 ■ “How to Avoid Electrostatic Discharge” on page 26 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 173: What To Do

    What to Do 1. Remove the removable media bezel from the front of the system. Remove the two Phillips screws securing the bezel to the front of the system. 2. Remove the cables connected to the back of the device. Chapter 4 Removing and Installing Storage Devices...
  • Page 174 3. Remove the two Phillips screws securing the device to the chassis. 4. Pull the device from the system. The device slides out on guides located on its sides. Sun Fire V890 Server Service Manual • October 2005...

  • Page 175: What Next

    5. If you are not immediately replacing the device, complete the following steps: a. Install a metal filler panel into the device’s slot. b. Replace the removable media bezel. Replace the two Phillips screws that secure the bezel to the system chassis. c.

  • Page 176: How To Install A Tape Drive

    How to Install a Tape Drive Before You Begin The Sun Fire V890 server does not come with a tape drive. If you are installing a SCSI tape drive for the first time, you must order and install the following...

  • Page 177: What To Do

    What to Do 1. Remove the removable media bezel from the front of the system. Remove the two Phillips screws securing the bezel to the front of the system. 2. If there is a metal filler panel in the slot, remove it. Using a flathead screwdriver, carefully pry the metal filler panel from the slot.
  • Page 178 6. Slide the device into the slot. 7. Insert and tighten the two Phillips screws that secure the device to the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 179 8. Connect the appropriate plug (P2 or P3) of the Ultra Wide SCSI data cable (Sun part number 530-3302) to the back of the tape drive. For proper plug connections, see “Cable Routing” on page 215. 9. Route the SCSI data cable and connect the cable to the SCSI adapter card (Sun part number X6758A).
  • Page 180 11. If you are installing a device into an empty slot, remove that slot’s plastic filler panel from the removable media bezel. 12. Replace the removable media bezel. Replace the two Phillips screws that secure the bezel to the system chassis. Sun Fire V890 Server Service Manual • October 2005...

  • Page 181: What Next

    What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ If you installed this part as a new option, you need to perform a reconfiguration boot in order for the operating system to recognize the new device. See: “How to Initiate a Reconfiguration Boot”...
  • Page 182 Sun Fire V890 Server Service Manual • October 2005...

  • Page 183: Removing And Installing Miscellaneous Assemblies

    C H A P T E R Removing and Installing Miscellaneous Assemblies This chapter describes how to remove and install miscellaneous assemblies in the system. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown” on page 247.

  • Page 184: Before You Begin

    Note – Use only Sun Fire V890 200-240 VAC power supplies in the Sun Fire V890 system. Before You Begin It is not necessary to power off the system if you are removing a redundant power supply. For more information about power supplies, see: “About Power Supplies”...
  • Page 185 2. Release the AC power cord from the strain-relief tie-wrap on the power supply. Press the tab on the head of the tie-wrap to release it. Chapter 5 Removing and Installing Miscellaneous Assemblies...
  • Page 186 3. Unplug the AC power cord from the power supply and the AC power outlet. Sun Fire V890 Server Service Manual • October 2005...
  • Page 187 4. Loosen the two captive Phillips screws securing the power supply to the system rear panel. 5. Pull the power supply out from its bay. Use one hand to pull the power supply out while using the other hand to support the power supply as it is removed from the system.

  • Page 188: What Next

    Note – Use only Sun Fire V890 200-240 VAC power supplies in the Sun Fire V890 system. Sun Fire V890 Server Service Manual • October 2005...

  • Page 189: What To Do

    What to Do 1. Identify the bay into which you want to install the power supply. For information about LEDs, see “About Power Supply LEDs” on page 265. 2. Slowly slide the power supply into its bay until the connectors on the power supply are fully engaged with the connectors on the power distribution board.

  • Page 190: What Next

    A reconfiguration boot is required in order for the operating system to recognize the new device. See: “How to Initiate a Reconfiguration Boot” on page 10 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 191: How To Remove The System Status Assembly

    How to Remove the System Status Assembly Before You Begin Complete these tasks: “How to Power Off the System” on page 5 ■ “How to Open and Remove a Side Door” on page 21 ■ “How to Avoid Electrostatic Discharge” on page 26 ■...

  • Page 192: What To Do

    What to Do 1. Remove the removable media bezel from the system. Remove the two Phillips screws securing the bezel to the front of the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 193 2. Remove the two No. 2 Phillips screws and the three No. 1 Phillips screws securing the system status assembly to the front of the system. Take care not to damage the flex circuit. Cable 3. Carefully remove the status assembly from the front of the system. The status assembly is held in place by tabs on the left side and right top of the assembly.

  • Page 194: What Next

    Replace the two Phillips screws that secure the bezel to the system front. What Next To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 195: Removing And Installing Backplanes And Cables

    C H A P T E R Removing and Installing Backplanes and Cables This chapter describes how to remove and install backplanes and cables in the system. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown”...

  • Page 196: How To Remove The Expansion Fc-Al Backplane

    3. Disconnect the I C cable (P20) from the expansion backplane at connector J0800. 4. Disconnect the FC-AL data cables (A and B) from the expansion backplane at connectors A(J0201) and B(J0200). Sun Fire V890 Server Service Manual • October 2005...
  • Page 197 5. Disconnect the FC-AL data cables (D and C) from the expansion backplane at connectors D(J01101) and C(J01100). Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 198 J0801 on the base FC-AL backplane. 11. If you are not immediately replacing the expansion FC-AL backplane, disconnect the FC-AL data cable (F and E) from connectors F(J0501) and E(J0500) on the base FC-AL backplane. Sun Fire V890 Server Service Manual • October 2005...

  • Page 199: What Next

    What Next To replace the expansion FC-AL backplane, complete this task: “How to Install the Expansion FC-AL Backplane” on page 171 ■ To reassemble the system, complete this task: “How to Close a Side Door” on page 23 ■ If you are not replacing this part right away, you need to perform a reconfiguration boot in order for the operating system to recognize the configuration change.

  • Page 200: What To Do

    2. Position the expansion backplane in the system against the disk cage. Align the three screw holes on the backplane with the screw holes on the disk cage. Sun Fire V890 Server Service Manual • October 2005...
  • Page 201 3. Fasten the three screws and nylon washers that secure the backplane to the disk cage. If you are installing the expansion backplane for the first time, the nylon washers are included with the backplane kit. 4. Connect the expansion FC-AL backplane cables to the backplane. If you are installing an expansion backplane in the system for the first time, install the following cables: a.
  • Page 202 C cable (P20) to connector J0800 on the expansion backplane 5. Connect the Loop B FC-AL data cable (H and G) to connectors H(J01103) and G(J01102) on the base backplane and to connectors C(J01100) and D(J01101) on the expansion backplane. Sun Fire V890 Server Service Manual • October 2005...
  • Page 203 6. Connect the two disk status flex circuit cables to the expansion backplane at connectors J01000 and J01001. 7. To reassemble the system, complete these tasks: “How to Install a Disk Drive” on page 136 “How to Install an I/O Fan Tray” on page 78 “How to Close a Side Door”...
  • Page 204 # luxadm display enclosure-name where enclosure-name is the enclosure name assigned to the Sun Fire V890 internal storage array—by default, FCloop. If you need to verify the enclosure name first, use the luxadm probe subcommand.

  • Page 205: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation How to Remove the Base FC-AL...

  • Page 206: What To Do

    FC-AL data cable (F and E) from the base backplane at connectors F(J01103) and E(J01102) 2. Disconnect the disk status flex circuit cables from the base backplane at connectors J01001 and J01000. Sun Fire V890 Server Service Manual • October 2005...

  • Page 207: What Next

    3. Remove the three Phillips screws and nylon washers securing the base backplane to the disk cage. 4. Remove the backplane from the system. 5. Place the backplane on an antistatic mat. What Next To replace the base FC-AL backplane, complete this task: “How to Install the Base FC-AL Backplane”...

  • Page 208: How To Install The Base Fc-Al Backplane

    “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Position the base FC-AL backplane against the disk cage. Align the three screw holes on the backplane with the screw holes on the disk cage. Sun Fire V890 Server Service Manual • October 2005...
  • Page 209 2. Fasten the three screws and nylon washers that secure the backplane to the disk cage. 3. Connect the disk status flex circuit cables to the base backplane at connectors J01001 and J01000. 4. If the expansion FC-AL backplane is installed, connect the following cables: For cable connector locations, see “Cable Connector Locations”...
  • Page 210 # luxadm display enclosure-name where enclosure_name is the enclosure name assigned to the Sun Fire V890 internal storage array—by default, FCloop. If you need to verify the enclosure name first, use the luxadm probe subcommand.

  • Page 211: What Next

    Note – For more information about the luxadm utility, refer to Platform Notes: Using luxadm Software, which is included on the Sun Fire V890 Documentation CD. 10. Once the firmware synchronization process is complete, you can restore the system to multiuser mode.

  • Page 212: What To Do

    If a Sun StorEdge PCI Dual Fibre Channel Host Adapter card is connected to the base backplane, the FC-AL data cables from the base backplane at connectors C(J01100) and D(J01101) Sun Fire V890 Server Service Manual • October 2005...
  • Page 213 3. Remove the I/O side fender from the system. a. Remove the Phillips screw from the top of the fender. b. Holding the front of the fender, rotate it out and away from the chassis. The fender is held in place by two tabs on the back of the fender that fit into the lower chassis.
  • Page 214 Loosen the two captive screws securing the lower section of the disk cage to the chassis. The captive screws are accessed from two cutouts in the chassis, under the mounting point for the CPU fan tray guide. Sun Fire V890 Server Service Manual • October 2005...
  • Page 215 5. Remove the eight I/O side screws securing the disk cage to the system. 6. Carefully pull the disk cage forward about 2 inches (5 cm), enough to give you clear access to the remaining cables on the base backplane. 7.

  • Page 216: What Next

    8. Slide the disk cage out fully from the system. 9. Place the disk cage on an antistatic mat. What Next To replace the disk cage, complete this task: “How to Install the FC-AL Disk Cage” on page 189 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 217: How To Install The Fc-Al Disk Cage

    How to Install the FC-AL Disk Cage Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ What to Do 1. Carefully align the FC-AL disk cage with the disk cage bay. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 218 3. Connect the base backplane FC-AL data cable (A and B) from the motherboard to the base backplane at connectors A(J0201) and B(J0200). 4. Slide the disk cage fully into the system. Sun Fire V890 Server Service Manual • October 2005...
  • Page 219 5. On the I/O side of the system, loosely fasten the eight Phillips screws that secure the disk cage to the chassis. Do not fully tighten the screws. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 220 6. On the CPU side of the system, loosely fasten the six Phillips screws that secure the disk cage to the chassis. Do not fully tighten the screws. Sun Fire V890 Server Service Manual • October 2005...
  • Page 221 7. On the I/O side of the system, fully tighten the eight Phillips screws that secure the disk cage to the chassis. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 222 C(J01100) and D(J01101) 11. If the expansion FC-AL disk backplane is installed, connect the following cables: a. Base/expansion cable (P2 and P43) to the expansion backplane at connectors J0801 and J0100 Sun Fire V890 Server Service Manual • October 2005...
  • Page 223 b. Base/expansion cable (P1) to the base backplane at connector J0801 c. I C cable (P20) to the expansion backplane at connector J0800 12. Replace the lower I/O fan tray bracket. a. Connect the fan status cable (P27) to the connector on the back of the I/O fan status flex circuit.
  • Page 224 14. Replace the I/O side fender. a. Holding the front of the fender, align the tabs with the cutouts on the chassis and rotate the fender until it snaps into place. Sun Fire V890 Server Service Manual • October 2005...

  • Page 225: What Next

    b. Replace the Phillips screw on the top of the fender. What Next To reassemble the system, complete these tasks: “How to Install the CPU Fan Status Assembly” on page 60 ■ “How to Install a CPU Fan Tray” on page 50 ■...

  • Page 226: How To Remove The Power Distribution Board

    RME power cable (P17) from the power distribution board at connector P17/J6(RME) d. I/O signal cable (P25) from the power distribution board at connector P25/J9(Signals) e. I/O board power cable (P13) from the power distribution board at connector P13/J5(I/O BOARD) Sun Fire V890 Server Service Manual • October 2005...
  • Page 227 2. Remove the PCI air deflector from the power distribution board bracket. Pull out the two plastic pins securing the PCI air deflector and remove it from the system. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 228 Remove the two Phillips screws securing the lower I/O fan tray bracket to the centerplane. c. Rotate the lower I/O fan tray bracket out from the system. d. Place the bracket on an antistatic mat. Sun Fire V890 Server Service Manual • October 2005...
  • Page 229 4. Loosen the captive Phillips screw securing the power distribution board to its bracket. Access the captive screw from the front of the system, through disk drive Slot 3. 5. Carefully pull the power distribution board out from the system until you can easily access the two cable assemblies still attached to the power distribution board.
  • Page 230 Pull the power distribution board out until it clears the tab on the centerplane. Sun Fire V890 Server Service Manual • October 2005...
  • Page 231 b. Carefully rotate the board away from the power distribution board bracket. c. Pull the power distribution board out from the system enough so that you can disconnect the two cables still attached to the board. 6. Disconnect the following cables from the power distribution board: a.

  • Page 232: What Next

    “How to Install the Power Distribution Board” on page 204 ■ How to Install the Power Distribution Board Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 26 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 233: What To Do

    What to Do 1. Angle the power distribution board into its position in the chassis far enough to still easily access connectors P7/J4 and P7/J11(MOTHERBOARD) and P38/J10(Sense/5Vstby) on the power distribution board. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 234 This ensures that the tabs on the end of the power distribution board are aligned with their cutouts in the sidewall of the chassis. Sun Fire V890 Server Service Manual • October 2005...
  • Page 235 b. Slide the board fully into the chassis until the tabs on the end of the power distribution board are in their cutouts on the chassis sidewall and the tab on the centerplane is in the hole on the top of the power distribution board. Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 236 4. Tighten the captive Phillips screw that secures the backplane to the backplane bracket. Access the captive screw from the front of the system, through disk drive Slot 3. Sun Fire V890 Server Service Manual • October 2005...
  • Page 237 5. Attach the PCI air deflector to the power distribution board bracket. a. Align the cutout on the air deflector with the tab on the bracket. b. Push in the two plastic pins that secure the PCI air deflector to the bracket. 6.
  • Page 238 Ensure that the ribbon cables behind the lower I/O fan bracket remain flat against the centerplane. c. Fasten the two Phillips screws that secure the lower I/O fan tray bracket to the centerplane. Sun Fire V890 Server Service Manual • October 2005...

  • Page 239: What Next

    Note – Be sure to run POST and OpenBoot Diagnostics tests to verify that the system functions correctly with the parts you have just installed. Refer to OpenBoot PROM Enhancements for Diagnostic Operation on the Sun Fire V890 Documentation Chapter 6 Removing and Installing Backplanes and Cables...

  • Page 240: Cable Connector Locations

    Cable Connector Locations P7/J11 P7/J4 Power Distribution Board Sun Fire V890 Server Service Manual • October 2005...
  • Page 241 J0800 J0801 J0100 J01000 J01001 J0800 J0801 J0100 J01000 J01001 FC-AL Backplane Chapter 6 Removing and Installing Backplanes and Cables...
  • Page 242 I/O Board Sun Fire V890 Server Service Manual • October 2005...

  • Page 243: Cable Routing

    Cable Routing Cable Name Part Number Cable end Connect to I/O board power cable 530-2818 I/O board at P14(J3203) PDB at P13/J5(I/O BOARD) C cable 530-2840 I/O board at P18(J3805) Base backplane at J0800 Expansion backplane at J0800 Base backplane power cable 530-2841 PDB at P15/J8(DISKS) Base backplane at J0100...
  • Page 244 Upper 5.25-inch RME device DVD-ROM 3.25-inch RME device DVD cable 530-3298 I/O board at P1(J3402) DVD-ROM RME wide SCSI cable 530-3302 SCSI adapter card (option) Lower 5.25-inch RME device Upper 5.25-inch RME device Sun Fire V890 Server Service Manual • October 2005...

  • Page 245: Hardware Configuration

    ■ “About Flash PROM Jumpers” on page 242 ■ Note – For configuration information about the internal mass storage subsystem and network interfaces, refer to the Sun Fire V890 Server Owner’s Guide, available on the Sun Fire V890 Documentation CD.

  • Page 246: About Cpu/Memory Boards

    With this dual-threaded architecture, each UltraSPARC IV processor consists of two virtual processors with shared memory. A dynamic arbitration scheme enables each thread to make optimal use of the available memory, resulting in higher performance. Sun Fire V890 Server Service Manual • October 2005...
  • Page 247 The following illustration shows the four CPU/Memory board slots on the system motherboard. The slots are labeled A through D from bottom to top. The virtual processors (CPUs) in the system have unique numbers, depending on the slot where each CPU/Memory board resides. For example, a CPU/Memory board installed in slot D always contains CPUs 5 and 21 and 7 and 23, even if there are no other CPU/Memory boards installed in the system.
  • Page 248 MPEG-2 decompression at full broadcast quality with no additional hardware support. The Sun Fire V890 server employs a shared-memory multiprocessor architecture with all processors sharing the same physical address space. The system processors, main memory, and I/O subsystem communicate via a high-speed system interconnect bus, operating at a clock rate of 150 MHz.

  • Page 249: About Memory Modules

    The system reads from, or writes to, all four DIMMs in a group simultaneously. DIMMs, therefore, must be added in sets of four. The figure below shows the DIMM slots and DIMM groups on a Sun Fire V890 CPU/Memory board. Every fourth slot belongs to the same DIMM group. The four groups are designated A0, A1, B0, and B1.

  • Page 250: Memory Interleaving

    One processor controls DIMM groups A0 and A1, while the other processor controls DIMM groups B0 and B1. The Sun Fire V890 system uses a shared memory architecture. During normal system operations, the total system memory is shared by all procesors in the system.

  • Page 251: Configuration Rules

    Processor Number CPU/Memory Slot Associated DIMM Groups Slot C A0, A1 Slot C B0, B1 Slot D A0, A1 Slot D B0, B1 Configuration Rules DIMMs must be added four-at-a-time within the same group of DIMM slots; ■ every fourth slot belongs to the same DIMM group. Each group used must have four identical DIMMs installed—that is, all four ■...
  • Page 252 Eight-way interleaving if all 16 slots (group B1). DIMMs are identical; four-way interleaving between any two groups configured identically; two-way interleaving in any group that does not match the capacities used in any other group Sun Fire V890 Server Service Manual • October 2005...

  • Page 253: About Pci Cards And Buses

    You can hot-plug any standard PCI card, provided that its Solaris device drivers support PCI hot-plug operations, and the system is running a Solaris Operating System that supports Sun Fire V890 PCI hot-plug operations. In addition, the PCI card must comply with the PCI Hot-Plug Specification Revision 1.1.
  • Page 254 PCI hot-plug operations; otherwise, you may cause a system panic. For a list of Sun PCI cards and device drivers that support PCI hot-plug operations, refer to the Sun Fire V890 Server Product Notes. Status LEDs provide power, fault, and hot-plug status indications for each PCI slot.
  • Page 255 The following figure shows the PCI slots on the I/O board. Slot 8 – 33/66 MHz, 3.3V Slot 7 – 33/66 MHz, 3.3V Slot 6 – 33 MHz, 5V Slot 5 – 33 MHz, 5V Slot 4 – 33 MHz, 5V Slot 3 –...

  • Page 256: Configuration Rules

    You can improve overall system availability by installing redundant network or storage interfaces on separate PCI buses and PCI bridges. For additional information, refer to the Sun Fire V890 Server Owner’s Guide. Caution – All internal options (except disk drives and power supplies) must be installed only by qualified service personnel.

  • Page 257: About The System Controller Card And Rsc Software

    RSC Software The system controller (SC) card, combined with the Remote System Control (RSC) software, enables access, monitoring, and control of the Sun Fire V890 server from a remote location. It is a fully independent processor card with its own resident firmware, power-on self-test (POST) diagnostics, and real-time operating system.

  • Page 258: Configuration Rules

    Caution – All internal options (except disk drives and power supplies) must be installed only by qualified service personnel. Sun Fire V890 Server Service Manual • October 2005...

  • Page 259: About Power Supplies

    Sun Fire V890 power supplies are modular units, designed for fast, easy installation or removal, even while the system is fully operational. Power supplies are installed in bays at the rear of the system, as shown in the following figure.
  • Page 260 Power supply 2 Power supply 1 Power supply 0 Sun Fire V890 Server Service Manual • October 2005...

  • Page 261: Configuration Rules

    For additional details, see “About Power Supply LEDs” on page 265. Configuration Rules Sun Microsystems recommends that you connect each power supply to a ■ dedicated AC circuit. Consult your local electrical codes for any additional requirements. The minimum system configuration requires two power supplies. The basic ■...

  • Page 262: About Fan Trays

    One fan tray with two 4-inch fans Secondary I/O fan tray One fan tray with two 4-inch fans Primary motherboard fan tray One 3-inch fan Secondary motherboard fan tray One 3-inch fan Sun Fire V890 Server Service Manual • October 2005...
  • Page 263 Fan speed is controlled by the environmental monitoring subsystem in response to temperature conditions inside the system. For additional details, refer to the Sun Fire V890 Server Owner’s Guide. Chapter 7 Hardware Configuration...

  • Page 264: Configuration Rules

    After removing a fan tray, if the system is left with fewer than three working fan trays, you must install a replacement fan tray immediately to avoid an automatic thermal shutdown. For more information, refer to the Sun Fire V890 Server Owner’s Guide.

  • Page 265: About Removable Media Devices

    About Removable Media Devices The Sun Fire V890 system provides front-panel access to three mounting bays. One bay houses an IDE DVD-ROM drive, which comes standard in all system configurations. The other two bays can house optional wide (68-pin) SCSI removable devices, which must be ordered separately.

  • Page 266: About Serial Ports

    For more information about configuring the serial port jumpers, see “About Serial Port Jumpers” on page 241. “Reference for the Serial Port A and B Connectors” on page 298 for the connector diagram, rear panel icon, and pin assignments. Sun Fire V890 Server Service Manual • October 2005...

  • Page 267: About Usb Ports

    For USB port locations, see “Locating Rear Panel Features” on page Note – For Sun Fire V890 servers, you must order the keyboard and mouse as options. If the version of your Sun Type-6 keyboard does not have an integrated USB hub, the keyboard and mouse will consume both USB ports on the system rear panel.

  • Page 268: About Hardware Jumpers

    About Hardware Jumpers The hardware jumpers in the Sun Fire V890 server have the following functions: J2902 and J2903 on the system I/O board are used to configure the serial ports for ■ either EIA-423 or EIA-232D operation. For information about the EIA-423 and EIA-232D jumper settings, see “About Serial Port Jumpers”...

  • Page 269: About Serial Port Jumpers

    About Serial Port Jumpers The serial port jumpers (J2902 and J2903) on the system I/O board configure the system’s two serial ports for either EIA-423 or EIA-232D signal levels. EIA-423 levels are the default standard for North American users. EIA-232D levels are required for digital telecommunication in nations of the European Community.

  • Page 270: About Flash Prom Jumpers

    About Flash PROM Jumpers The Sun Fire V890 system uses flash PROMs to enable the reprogramming of specific firmware code blocks held in nonvolatile system memory, and to enable remote reprogramming of that code by an authorized system administrator over a local area network.

  • Page 271: System I/O Board

    System I/O Board The locations and functions of the flash PROM jumpers on the system I/O board are shown below. Chapter 7 Hardware Configuration...
  • Page 272 Shunt on Pins 2 + 3 Selects Default Setting OpenBoot flash PROM For factory use only 1 + 2 Write-protect Write-enable 2 + 3 High half booting Normal booting 2 + 3 Sun Fire V890 Server Service Manual • October 2005...
  • Page 273 Note – Jumper J3003 is factory-set so that the flash PROM is write-enabled. You use the keyswitch located on the front panel to write-protect the flash PROM. When the switch is set to the Locked position, the flash PROM is write-protected. When the switch is set to the Normal position or to the Diagnostics position, the flash PROM is write-enabled.

  • Page 274: Fc-Al Disk Backplane

    High half booting, Loop B Normal booting, Loop B 2 + 3 High half booting, Loop A Normal booting, Loop A 2 + 3 Flash PROM For factory use only 1 + 2 Sun Fire V890 Server Service Manual • October 2005...

  • Page 275: Illustrated Parts Breakdown

    A P P E N D I X Illustrated Parts Breakdown This appendix consists of a sequence of illustrations that show how the various pieces of the system fit together. Part numbers are also provided.

  • Page 276: Part Numbers

    Part Numbers The following items for the Sun Fire V890 server can be replaced at the customer site by a qualified service provider. Note – The part numbers listed in this section are correct as of the manual publication date but are subject to change without notice. Consult your authorized Sun sales representative or service provider to confirm a part number prior to ordering a replacement part.
  • Page 277 Category Part Part Number 18-GB 10K FC-AL Disk Drive Not supported in the Sun Fire V890 Server 36-GB 10K FC-AL Disk Drive 540-4525 72-GB 10K FC-AL Disk Drive 540-4905 540-4508 DVD-ROM Drive 390-0025 Fan Trays CPU Fan Tray 541-0134 Motherboard Fan Tray...
  • Page 278 5.25-inch RMA Metal Filler Panel 340-5933 (Not a FRU) 3.5-inch RMA Plastic Filler Panel 330-2400 (Not a FRU) 5.25-inch RMA Plastic Filler Panel 330-2399 (Not a FRU) PCI Filler Panel 340-6627 (Not a FRU) Sun Fire V890 Server Service Manual • October 2005...
  • Page 279 Appendix A Illustrated Parts Breakdown...

  • Page 280: Assembly Illustrations

    Assembly Illustrations I/O Side Components Sun Fire V890 Server Service Manual • October 2005...
  • Page 281 Description Part Number I/O Fan LED Flex Circuit 370-3962 I/O Fan Bracket Not a FRU I/O Fan Tray 540-3615 Side Door Not a FRU PCI Internal LED Flex Circuit 370-3964 PCI Dividers Not a FRU PCI Divider Holder Not a FRU I/O Board 501-6737 I/O Air Guide...

  • Page 282: Cpu Side Components

    CPU Side Components Sun Fire V890 Server Service Manual • October 2005...
  • Page 283 Description Part Number 1.05-GHz CPU/Memory board 501-6809 1.35-GHz CPU/Memory board 501-6962 (not shown) 1.5-GHz CPU/Memory board 501-7058 (not shown) CPU/Memory Board Status Assembly 541-0126 CPU Fan Tray 541-0134 CPU/Memory Board Air Baffle 540-4431 CPU Fan Status Assembly 540-4453 CPU Fan Filler Panel 330-3838 Motherboard Fan Tray 540-4025...

  • Page 284: Front Side Components

    Front Side Components Sun Fire V890 Server Service Manual • October 2005...
  • Page 285 Description Part Number FC-AL Backplane 501-5993 36-GB 10K FC-AL Disk Drive 540-4525 Lower Disk LED Flex Circuit 370-3957 Disk Cage Not a FRU Upper Disk LED Flex Circuit 370-3958 System Status Assembly 540-3964 DVD-ROM Drive 390-0161 RMA Bezel 540-4167 3.5-inch RMA Plastic Filler Panel 330-2400 5.25-inch RMA Plastic Filler Panel 330-2399...
  • Page 286 Sun Fire V890 Server Service Manual • October 2005...

  • Page 287: System Leds

    A P P E N D I X System LEDs This appendix gives you reference information about the LEDs on the Sun Fire V890 server. Topics covered in this appendix include: “About Front Panel LEDs” on page 259 ■ “About CPU/Memory Slot LEDs” on page 262 ■...
  • Page 288 Since all front panel status LEDs are powered by the system’s 5-volt standby power source, fault LEDs remain lit for any fault condition that results in a system shutdown. Sun Fire V890 Server Service Manual • October 2005...

  • Page 289: Appendix

    During system startup, the front panel LEDs are individually toggled on and off to verify that each one is working correctly. After that, the front panel LEDs operate as described in the following table. Name Icon LED Function Power/OK This green LED lights when the system power is on. System Fault This amber LED lights to indicate a serious system fault.

  • Page 290: About Cpu/Memory Slot Leds

    CPU/Memory slots B and C and are visible when the right side door is open. There are two LEDs for each CPU/Memory slot, as shown below. Icon Name LED Function Power On Lights when the slot is receiving power. Fault Reserved for future use. Sun Fire V890 Server Service Manual • October 2005...

  • Page 291: About Pci Slot Leds

    About PCI Slot LEDs The PCI slot LEDs are located on the vertical bracket on the right side of the PCI slots and are visible when the left side door is open. There are three LEDs for each PCI slot, as shown below. Icon Name LED Function...
  • Page 292 LED. For more information about PCI cards and hot-plug operations, see: “About PCI Cards and Buses” on page 225 ■ “About Hot-Pluggable and Hot-Swappable Components” on page 6 ■ Sun Fire V890 Server Service Manual • October 2005...

  • Page 293: About Power Supply Leds

    About Power Supply LEDs There are three LEDs located on the rear of each power supply, as shown below. Icon Name LED Function Fault Lights when the power supply encounters a fault. AC-Present Lights when AC power input is present and within acceptable Status operating limits.

  • Page 294: About Fan Tray Leds

    Lights when the fan tray encounters a fault. OK-to- Lights when it is safe to remove the fan tray assembly from a Remove powered-on system (only when redundant fan trays are present). Sun Fire V890 Server Service Manual • October 2005...

  • Page 295: About Disk Drive Leds

    The following table shows how to interpret the various possible LED patterns. Interpretation The fan tray is not receiving power or is improperly inserted. The fan tray is receiving power and operating normally. The fan tray has encountered a fault and can be safely removed from a powered-on system.
  • Page 296 Lights when the disk drive encounters a fault. OK-to- Lights when it is safe to remove the disk drive during a hot-plug Remove operation. Blinks (under software control) to direct attention to a disk drive. Sun Fire V890 Server Service Manual • October 2005...
  • Page 297 Disk drive has encountered a fault. Disk drive can be safely removed as part of a hot-plug operation. For more information about disk drives, refer to the Sun Fire V890 Server Owner’s Guide. For more information about hot-plug operations, see “About Hot-Pluggable and Hot-Swappable Components”...

  • Page 298: About Gigabit Ethernet Leds

    Indicates data activity on the transmit channel. Full Duplex Indicates that the Gigabit Ethernet interface is operating in full-duplex mode. Link Link Present Indicates that a link is established with a link partner. Sun Fire V890 Server Service Manual • October 2005...

  • Page 299: Split Backplane Configurations

    Note – The procedures described in this appendix should be performed only by qualified service personnel. Two split backplane configurations are available for Sun Fire V890 servers that are equipped with both a base backplane and an expansion backplane: Split backplane single-loop configuration ■...

  • Page 300: About The Split Backplane Configurations

    Configurations The procedures in this appendix enable you to set up the new split backplane configurations for Sun Fire V890 servers that are equipped with both a base backplane and an expansion backplane. Before you perform the procedures: Verify that the prerequisite firmware patches have been installed. See “Firmware...

  • Page 301: Firmware Patches Required

    Firmware Patches Required Before the Solaris Operating System can recognize the split backplane configurations, the following patches must be installed to upgrade the Sun Fire V890 server Fibre Channel backplane firmware: For systems running the Solaris 8 Operating System, install Patch 111474-07 or ■...

  • Page 302: How To Set Up The Split Backplane Single-Loop Configuration

    PCI Dual FC Network Adapter on an antistatic surface and use an antistatic wrist strap. 1. Set the OpenBoot configuration variable auto-boot? to false. 2. Power off the server. Sun Fire V890 Server Service Manual • October 2005...

  • Page 303: Reference For Pci Slot Locations

    3. Remove the primary and secondary I/O fan tray assemblies. “How to Remove an I/O Fan Tray” on page 76 for instructions. 4. Disconnect the following cables (if installed) from the expansion backplane and the base backplane: For cable connector locations, see “Reference for Cable Routing and Connector Locations”...
  • Page 304 Note – Route the FC-AL data cable under the I/O fan tray assembly brackets and along the floor of the I/O compartment. Use tie-wraps to secure the FC-AL data cable to the tie-wrap notches on the I/O compartment floor. Sun Fire V890 Server Service Manual • October 2005...
  • Page 305 8. Install the primary and secondary I/O fan trays. (See “How to Install an I/O Fan Tray” on page 78 for instructions.) Check that the FC-AL data cable does not interfere with the fans. If necessary, use tie-wraps to attach the cable to the internal wall near the backplanes.
  • Page 306 FC-AL backplane. Notice that the display shows the same enclosure name (FCloop in the example) for both backplanes. Also note the logical path name of each device. You need this information to perform Step Sun Fire V890 Server Service Manual • October 2005...
  • Page 307 13. Change the enclosure name of one of the FC-AL backplanes. Type the luxadm enclosure_name command. Each backplane must have a unique enclosure name. Use the luxadm enclosure_name command to assign a unique name by changing one of the enclosure names as shown in the following example. To change the enclosure name, assign the new name (FCloop2 in the example) and enter the path name (/dev/es/ses2 in the example) of the appropriate backplane.
  • Page 308 SSC100’s - 0=Base Bkpln, 1=Base LoopB, 2=Exp Bkpln, 3=Exp LoopB SSC100 #0: O.K.(922A/ 8D3C) SSC100 #1: O.K.(922A/ 8D3C) SSC100 #2: Not Installed SSC100 #3: Not Installed Temperature Sensors - 0 Base, 1 Expansion 0:22ºC 1Not Installed Sun Fire V890 Server Service Manual • October 2005...
  • Page 309 Backplanes - A=Base, B=Expansion A: O.K. B: Not Installed Default Language is USA English, ASCII The following example shows the luxadm display output for the expansion backplane (FCloop2 in the example). # luxadm display FCloop2 SUNWGS INT FCBPL DISK STATUS SLOT DISKS (Node WWN)

  • Page 310: How To Set Up The Split Backplane Dual-Loop Configuration

    The following procedure is based on the assumption that the expansion backplane is already installed. If you need to install the expansion backplane, see “How to Install the Expansion FC-AL Backplane” on page 171 for instructions. Sun Fire V890 Server Service Manual • October 2005...

  • Page 311: What To Do

    What to Do To set up the split backplane dual-loop configuration, complete the following steps: Caution – Printed circuit boards contain electronic components that are extremely sensitive to static electricity. Ordinary amounts of static from your clothes or the work environment can destroy components. Do not touch the components or any metal parts without taking proper antistatic precautions.
  • Page 312 For one of the PCI Dual FC Network Adapters in slots 0 through 6, connect a new FC-AL data cable (P3 and P4) from network adapter connectors J3 (P3) and J4 (P4) to expansion backplane connectors (C) J0200 and (D) J0201. Sun Fire V890 Server Service Manual • October 2005...
  • Page 313 b. For the other PCI Dual FC Network Adapter in slots 0 through 6, connect a new FC-AL data cable (P3 and P4) from network adapter connectors J3 (P3) and J4 (P4) to expansion backplane connectors (C) J01100 and (D) J01101. c.
  • Page 314 LiD HA LUN --- Port WWN --- ----- Disk description ----- 21000004cfce7fa0 SEAGATE ST336752FSUN36G 0408 5080020000197549 SUNW SUNWGS INT FCBPL922A 2100002037e758d3 SEAGATE ST336704FSUN36G 0726 21000004cfce7fca SEAGATE ST336752FSUN36G 0408 21000004cfce7fc4 SEAGATE ST336752FSUN36G 0408 Sun Fire V890 Server Service Manual • October 2005...
  • Page 315 21000004cfce7fc8 SEAGATE ST336752FSUN36G 0408 21000004cfce7fd5 SEAGATE ST336752FSUN36G 0408 /pci@8,600000/SUNW,qlc@2 LiD HA LUN --- Port WWN --- ----- Disk description ----- 21000004cfce8257 SEAGATE ST336752FSUN36G 0408 21000004cfce7fd3 SEAGATE ST336752FSUN36G 0408 21000004cf837f8d SEAGATE ST336605FSUN36G 0438 5080020000197379 SUNW SUNWGS INT FCBPL922A 21000004cfce7fb7 SEAGATE ST336752FSUN36G 0408 2100002037b3f76c SEAGATE ST336704FSUN36G 0726 2100002037e7efec...
  • Page 316 FC-AL backplane. Notice that the display shows the same enclosure name (FCloop in the example) for both backplanes. Also note the logical path name of each device. You need this information to perform Step Sun Fire V890 Server Service Manual • October 2005...
  • Page 317 13. Change the enclosure name of one of the FC-AL backplanes. Type the luxadm enclosure_name command. Each backplane must have a unique enclosure name. Use the luxadm enclosure_name command to assign a unique name by changing one of the enclosure names as shown in the following example. To change the enclosure name, assign the new name (FCloop2 in the example) and enter the path name (/dev/es/ses2 in the example) of the appropriate backplane.
  • Page 318 Box ID:0 Node WWN:5080020000197378 Enclosure Name:FCloop SSC100’s - 0=Base Bkpln, 1=Base LoopB, 2=Exp Bkpln, 3=Exp LoopB SSC100 #0: O.K.(922A/ 8D3C) SSC100 #1: O.K.(922A/ 8D3C) SSC100 #2: Not Installed SSC100 #3: Not Installed Sun Fire V890 Server Service Manual • October 2005...
  • Page 319 Temperature Sensors - 0 Base, 1 Expansion 0:22ºC 1Not Installed Backplanes - A=Base, B=Expansion A: O.K. B: Not Installed Default Language is USA English, ASCII The following example shows the luxadm display output for the expansion backplane (FCloop2 in the example). # luxadm display FCloop2 SUNWGS INT FCBPL DISK STATUS...
  • Page 320 O.K.(922A/ 8D3C) SSC100 #3: O.K.(922A/ 8D3C) Temperature Sensors - 0 Base, 1 Expansion 0:24ºC 1Not Installed Backplanes - A=Base, B=Expansion A: Not Installed B: O.K. Default Language is USA English, ASCII Sun Fire V890 Server Service Manual • October 2005...

  • Page 321: Reference For Cable Routing And Connector Locations

    Reference for Cable Routing and Connector Locations Cable connection information for the split backplane single-loop and dual-loop configurations is shown in the following table. Cable Name Cable End Connect to Connections for Single-Loop Configuration FC-AL data cable Expansion backplane at J0200 Expansion backplane at J0201 PCI Dual FC Network Adapter at J3 PCI Dual FC Network Adapter at J4...
  • Page 322 The locations of the base and expansion backplane connectors are shown in the following figure. J01103 J01102 J01101 J01100 J0501 J0500 J0801 J0201 J0200 Sun Fire V890 Server Service Manual • October 2005...
  • Page 323 The locations of the connectors on the PCI Dual FC Network Adapter are shown in the following figure. Port 1 Port 2 Appendix C Split Backplane Configurations...

  • Page 324: Reference For Pci Slot Locations

    Slot 6 – 33-MHz, 5V Slot 5 – 33-MHz, 5V Slot 4 – 33-MHz, 5V Slot 3 – 33-MHz, 5V Slot 2 – 33-MHz, 5V Slot 1 – 33-MHz, 5V Slot 0 – 33-MHz, 5V Sun Fire V890 Server Service Manual • October 2005...

  • Page 325: Connector Pinouts

    A P P E N D I X Connector Pinouts This appendix gives you reference information about the system’s rear panel ports and pin assignments. Topics covered in this appendix include: “Reference for the Serial Port A and B Connectors” on page 298 ■...

  • Page 326: Reference For The Serial Port A And B Connectors

    Data Carrier Detect A No Connection No Connection No Connection No Connection No Connection Data Terminal Ready B Transmit Clock A (Internal) Data Carrier Detect B Transmit Clock B Clear To Send B Sun Fire V890 Server Service Manual • October 2005...

  • Page 327: Reference For The Usb Connectors

    Reference for the USB Connectors Two Universal Serial Bus (USB) connectors are located on the system I/O board and can be accessed from the rear panel. USB Connector Diagram USB Connector Signals Signal Description Signal Description +5 VDC +5 VDC Port Data_N Port Data_N Port Data_P...

  • Page 328: Reference For The Twisted-Pair Ethernet Connector

    TPE Connector Signals Signal Description Signal Description Transmit Data + Common Mode Termination Transmit Data - Receive Data - Receive Data + Common Mode Termination Common Mode Termination Common Mode Termination Sun Fire V890 Server Service Manual • October 2005...

  • Page 329: Reference For The System Controller Ethernet Connector

    Reference for the System Controller Ethernet Connector The system controller Ethernet connector is an RJ-45 connector located on the system controller board and can be accessed from the rear panel. System Controller Ethernet Connector Diagram System Controller Ethernet Connector Signals Signal Description Signal Description Transmit Data +...

  • Page 330: Reference For The System Controller Serial Connector

    System Controller Serial Connector Diagram System Controller Serial Connector Signals Signal Description Signal Description Ready To Send Ground Data Terminal Ready Receive Data Transmit Data No Connection Ground Clear To Send Sun Fire V890 Server Service Manual • October 2005...

  • Page 331: System Specifications

    A P P E N D I X System Specifications This appendix provides the following specifications for the Sun Fire V890 server: “Reference for Physical Specifications” on page 304 ■ “Reference for Electrical Specifications” on page 304 ■ “Reference for Environmental Requirements” on page 305 ■...

  • Page 332: Reference For Physical Specifications

    0 to 50 A Maximum DC Power Output 2509 Watts Maximum System AC Power Consumption 3200 Watts Maximum System Heat Dissipation 10,912 BTU/hr Volt-Ampere Rating 2078 VA with 1629 Watt load (PF=0.98) Sun Fire V890 Server Service Manual • October 2005...

  • Page 333: Reference For Environmental Requirements

    Reference for Environmental Requirements The operating and non-operating environmental requirements for the system are as follows. Parameter Value Operating Temperature 5˚C to 35˚C (41˚F to 95˚F)—IEC 68-2-1, 68-2-2 Humidity 20% to 80% RH, noncondensing; 27 ˚C max wet bulb—IEC 68-2-2, 68-2-3 Altitude 0 to 3000 meters (0 to 10,000 feet)—IEC 68-2-40, 68-2-41...

  • Page 334: Reference For Agency Compliance Specifications

    Japan VCCI Class A Taiwan CNS 13438 Class A US FCC 47CFR15.B Class A Immunity EN55024 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 X-ray US DHHS 21CFR Subchapter J PTB German X-ray Decree Sun Fire V890 Server Service Manual • October 2005...

  • Page 335: Reference For Clearance And Service Access Specifications

    Reference for Clearance and Service Access Specifications Minimum clearances needed for proper cooling are as follows. Blockage Required Clearance Front blockage only 3.0 in. (7.6 cm) Rear blockage only 3.5 in. (8.9 cm) Front and rear blockage Front clearance 3.5 in. (8.9 cm) Rear clearance 4.0 in.
  • Page 336 Sun Fire V890 Server Service Manual • October 2005...

  • Page 337: Safety Precautions

    A P P E N D I X Safety Precautions...

  • Page 338: Safety Agency Compliance Statements

    Depending on the type of power switch your device has, one of the following symbols may be used: On – Applies AC power to the system. Off - Removes AC power from the system. Standby – The On/Standby switch is in the standby position. Sun Fire V890 Server Service Manual • October 2005...

  • Page 339: Placement Of A Sun Product

    Modifications to Equipment Do not make mechanical or electrical modifications to the equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product. Placement of a Sun Product Caution – Do not block or cover the openings of your Sun product.

  • Page 340: Lithium Battery

    System Unit Cover You must open the side doors of your Sun Fire V890 server to add cards, memory, or internal options. Be sure to close and secure the doors before powering on your system. Caution – Do not open. Qualified Service Personnel Only.

  • Page 341: Laser Compliance Notice

    Laser Compliance Notice Sun products that use laser technology comply with Class 1 laser requirements. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1 CD-ROM Caution – Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 342 /Wartezustand-Schalter steht auf Wartezustand. Änderungen an Sun-Geräten. Nehmen Sie keine mechanischen oder elektrischen Änderungen an den Geräten vor. Sun Microsystems, übernimmt bei einem Sun-Produkt, das geändert wurde, keine Verantwortung für die Einhaltung behördlicher Vorschriften Sun Fire V890 Server Service Manual • October 2005...
  • Page 343 Aufstellung von Sun-Geräten Achtung – Um den zuverlässigen Betrieb Ihres Sun-Geräts zu gewährleisten und es vor Überhitzung zu schützen, dürfen die Öffnungen im Gerät nicht blockiert oder verdeckt werden. Sun-Produkte sollten niemals in der Nähe von Heizkörpern oder Heizluftklappen aufgestellt werden. Achtung –...
  • Page 344 Massenspeicher hinzuzufügen. Bringen Sie die obere Gehäuseabdeckung wieder an, bevor Sie Ihr System einschalten. Achtung – Nicht öffnen. Nur für qualifiziertes Service-Personal. Bei Nichtbeachtung kann es zu Personenschäden bzw. zu Beschädigungen am System kommen. Sun Fire V890 Server Service Manual • October 2005...
  • Page 345 Strahlungen zur Folge haben. Conformité aux normes de sécurité Ce texte traite des mesures de sécurité qu’il convient de prendre pour l’installation d’un produit Sun Microsystems. Mesures de sécurité Pour votre protection, veuillez prendre les précautions suivantes pendant l’installation du matériel : Suivre tous les avertissements et toutes les instructions inscrites sur le matériel.
  • Page 346 Marche/Veilleuse est en position « Veilleuse ». Modification du matériel Ne pas apporter de modification mécanique ou électrique au matériel. Sun Microsystems n’est pas responsable de la conformité réglementaire d’un produit Sun qui a été modifié. Positionnement d’un produit Sun Attention: –...
  • Page 347 Connexion du cordon d’alimentation Attention: – les produits Sun sont conçus pour fonctionner avec des alimentations monophasées munies d’un conducteur neutre mis à la terre. Pour écarter les risques d’électrocution, ne pas brancher de produit Sun dans un autre type d’alimentation secteur. En cas de doute quant au type d’alimentation électrique du local, veuillez vous adresser au directeur de l’exploitation ou à...

  • Page 348: Batterie Au Lithium

    Laser KLasse 1 CD-ROM Attention: – L’utilisation de contrôles, de réglages ou de performances de procédures autre que celle spécifiée dans le présent document peut provoquer une exposition à des radiations dangereuses. Sun Fire V890 Server Service Manual • October 2005...

  • Page 349: Normativas De Seguridad

    Normativas de seguridad El siguiente texto incluye las medidas de seguridad que se deben seguir cuando se instale algún producto de Sun Microsystems. Precauciones de seguridad Para su protección observe las siguientes medidas de seguridad cuando manipule su equipo: Siga todas los avisos e instrucciones marcados en el equipo. ■...

  • Page 350: Cumplimiento De La Normativa Selv

    Modificaciones en el equipo No realice modificaciones de tipo mecánico o eléctrico en el equipo. Sun Microsystems no se hace responsable del cumplimiento de las normativas de seguridad en los equipos Sun modificados. Ubicación de un producto Sun Precaución – Para asegurar la fiabilidad de...

  • Page 351: Tapa De La Unidad Del Sistema

    Precaución – Para eliminar completamente la alimentación de esta unidad, desconecte todos los cables de alimentación. La siguiente advertencia se aplica solamente a equipos con un interruptor de encendido que tenga una posición "En espera": Precaución – El interruptor de encendido de este producto funciona exclusivamente como un dispositivo de puesta en espera.
  • Page 352 Klasse 1 Laser Apparat Laser KLasse 1 CD-ROM Precaución – El manejo de los controles, los ajustes o la ejecución de procedimientos distintos a los aquí especificados pueden exponer al usuario a radiaciones peligrosas. Sun Fire V890 Server Service Manual • October 2005...

  • Page 353: Nordic Lithium Battery Cautions

    GOST-R Certification Mark Nordic Lithium Battery Cautions Norge ADVARSEL – Litiumbatteri — Eksplosjonsfare.Ved utskifting benyttes kun batteri som anbefalt av apparatfabrikanten. Brukt batteri returneres apparatleverandøren. Sverige VARNING – Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
  • Page 354 Sun Fire V890 Server Service Manual • October 2005...

Table of Contents
