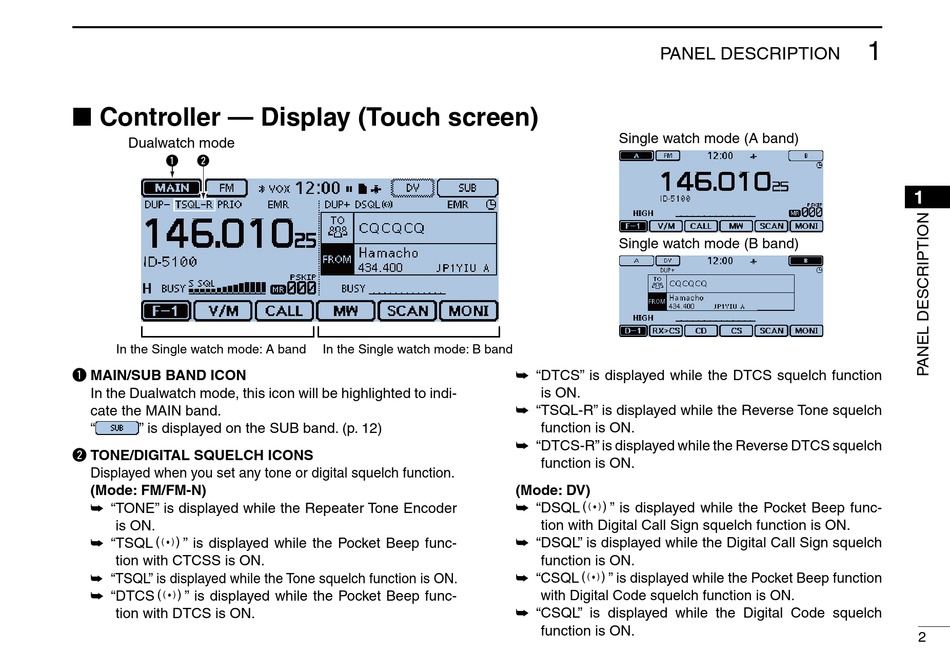

■ Controller — Display (Touch screen)
Dualwatch mode
q w
In the Single watch mode: A band
q MAIN/SUB BAND ICON
In the Dualwatch mode, this icon will be highlighted to indi-
cate the MAIN band.
" " is displayed on the SUB band. (p. 12)
w TONE/DIGITAL SQUELCH ICONS
Displayed when you set any tone or digital squelch function.
(Mode: FM/FM-N)
" TONE" is displayed while the Repeater Tone Encoder
➥
is ON.
" TSQL S" is displayed while the Pocket Beep func-
➥
tion with CTCSS is ON.
" TSQL" is displayed while the Tone squelch function is ON.
➥
S" is displayed while the Pocket Beep func-
" DTCS
➥
tion with DTCS is ON.
In the Single watch mode: B band
PANEL DESCRIPTION
Single watch mode (A band)
Single watch mode (B band)
" DTCS" is displayed while the DTCS squelch function
➥
is ON.
" TSQL-R" is displayed while the Reverse Tone squelch
➥
function is ON.
" DTCS-R" is displayed while the Reverse DTCS squelch
➥
function is ON.
(Mode: DV)
S" is displayed while the Pocket Beep func-
" DSQL
➥
tion with Digital Call Sign squelch function is ON.
" DSQL" is displayed while the Digital Call Sign squelch
➥
function is ON.
" CSQL S" is displayed while the Pocket Beep function
➥
with Digital Code squelch function is ON.
" CSQL" is displayed while the Digital Code squelch
➥
function is ON.
