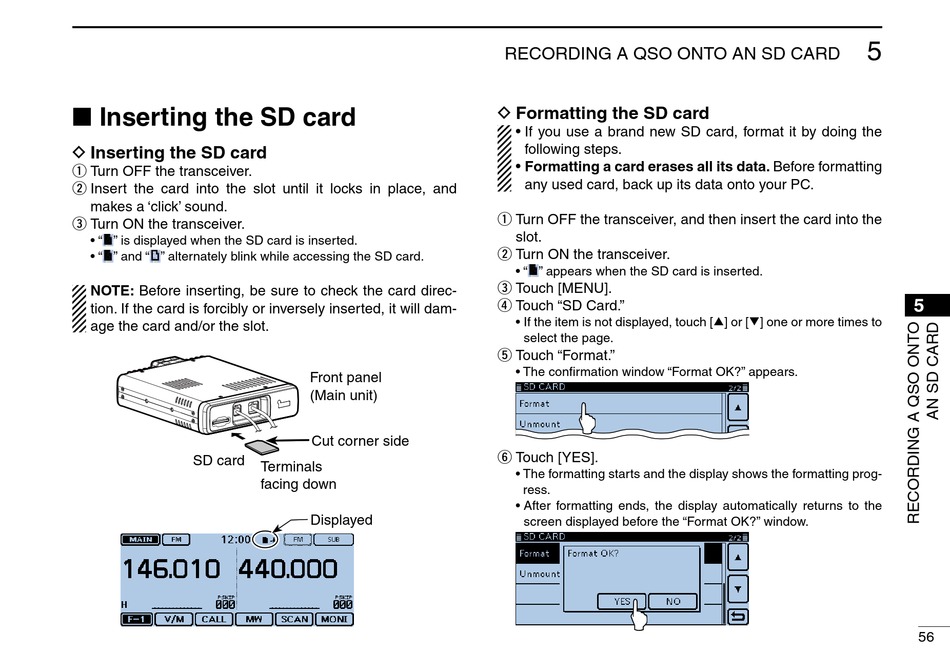

■ Inserting the SD card

D Inserting the SD card
Turn OFF the transceiver.
q
Insert the card into the slot until it locks in place, and
w
makes a 'click' sound.
Turn ON the transceiver.
e
• " " is displayed when the SD card is inserted.
• " " and " " alternately blink while accessing the SD card.
NOTE: Before inserting, be sure to check the card direc-
tion. If the card is forcibly or inversely inserted, it will dam-
age the card and/or the slot.
SD card
Front panel
(Main unit)
Cut corner side
Terminals
facing down
Displayed
RECORDING A QSO ONTO AN SD CARD
D Formatting the SD card
• If you use a brand new SD card, format it by doing the
following steps.
• Formatting a card erases all its data. Before formatting
any used card, back up its data onto your PC.
Turn OFF the transceiver, and then insert the card into the
q
slot.
Turn ON the transceiver.
w
• " " appears when the SD card is inserted.
Touch [MENU].
e
Touch "SD Card."
r
• If the item is not displayed, touch [∫] or [√] one or more times to
select the page.
Touch "Format."
t
• The confirmation window "Format OK?" appears.
Touch [YES].
y
• The formatting starts and the display shows the formatting prog-
ress.
• After formatting ends, the display automatically returns to the
screen displayed before the "Format OK?" window.
5
5
56
