FRONT SUSPENSION

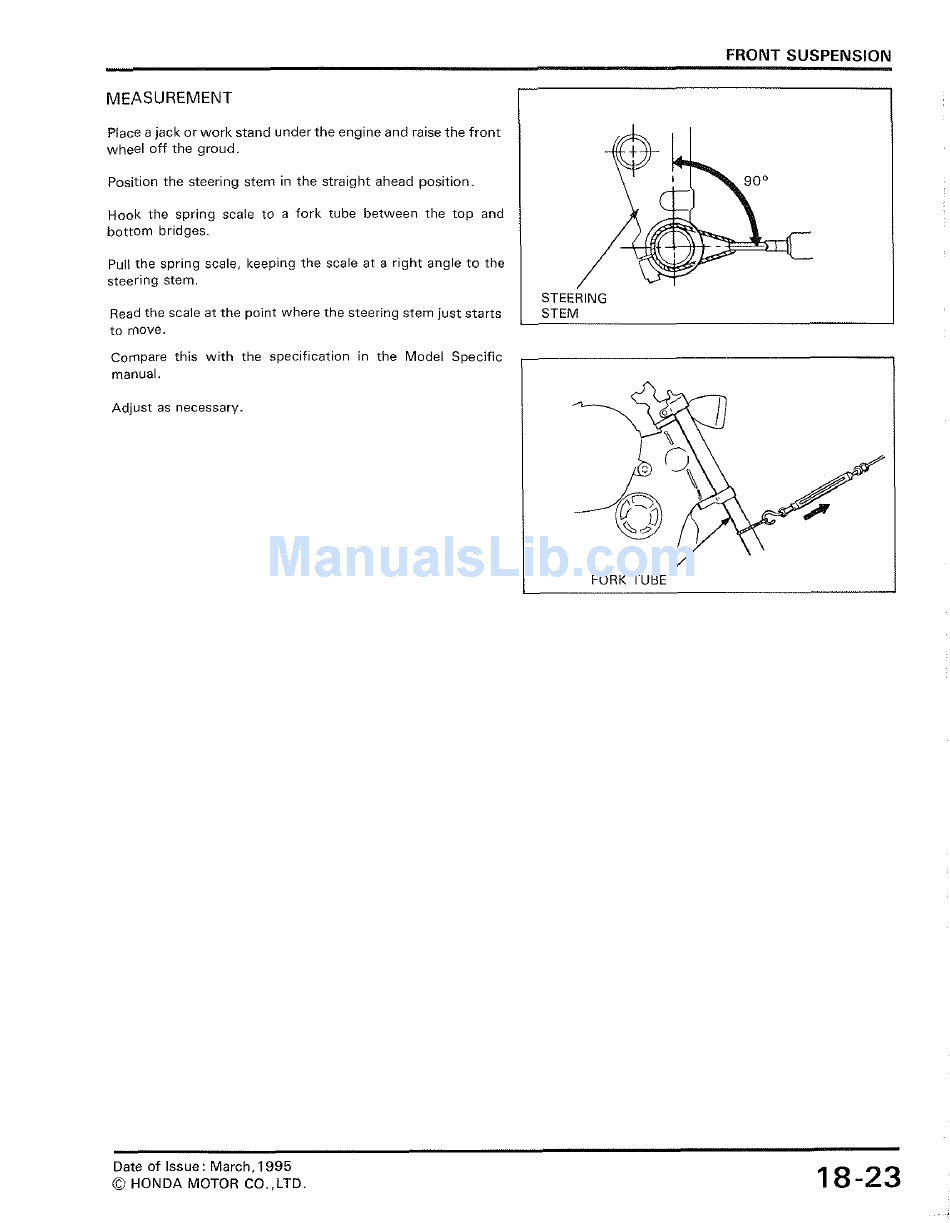

MEASUREMENT
'
Place a jack or work stand under the engine and raise the front
wheel off the groud
Position the steering stem in the straight ahead position.
Hook the spring scale to a fork tube between the top and
bottom bridges.
Pull the spring scale, keeping the scale at a right angle t o the
steering stem.
Read the scale at the point where the steering stem just starts
to move.
Compare this with the specification in the Model Specific
manual.
Adjust as necessary.
STEERING
STEM
I
/
FORK TUBE
Date of Issue: March.
1995
