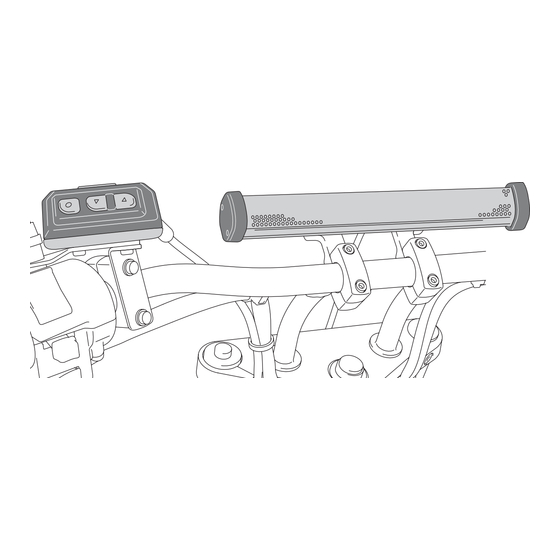

Honda Digital Audio System for Motorcycle Owner's Manual

Digital audio system for honda motorcycle.
Hide thumbs

Advertisement

Thank you for purchasing a Honda Motorcycle Digital Audio System.
Read this Owner's Manual carefully before use and store it in a safe and convenient
place where you can refer to the manual easily whenever necessary.
• This digital audio system is specially designed for Honda motorcycles. Consult with
your authorized Honda motorcycle dealer for the applicable models.
• Please note that American Honda Motor Co., Inc. does not assume any responsibilities
for any damage (e.g. personal injury, machine failure, equipment damage, etc.) from
use of this accessory on a model that is not specified.
• Installation of this accessory on a Honda motorcycle requires technical skill and
experience. For safety, consult with your authorized Honda motorcycle dealer for
installation.
• This Owner's Manual should be included with this accessory when it is resold.
for Honda Motorcycles
Owner's Manual

Advertisement

   Related Manuals for Honda Digital Audio System for Honda Motorcycle

   Summary of Contents for Honda Digital Audio System for Honda Motorcycle

  • Page 1

    for Honda Motorcycles Owner’s Manual Thank you for purchasing a Honda Motorcycle Digital Audio System. Read this Owner’s Manual carefully before use and store it in a safe and convenient place where you can refer to the manual easily whenever necessary. •...

  • Page 3: Table Of Contents

    CONTENTS SERVICE PRECAUTIONS ..........4 • Power supply • Preventing a discharged battery • Cleaning • When you have a problem • Applicable portable audio unit • Storage of portable audio unit connected to this accessory • Leaving the motorcycle SAFETY INFORMATION ..........

  • Page 4: Service Precautions

    SERVICE PRECAUTIONS Although this accessory was designed and manufactured with vibration-proof performance in mind, always remember to ride your motorcycle safely on paved roads. The temperature of the amplifier unit rises when it is used for a prolonged time. This is normal.

  • Page 5: Applicable Portable Audio Unit

    Applicable portable audio unit A commercially available portable audio player with a stereo mini jack terminal can be connected to this accessory. (An attachment kit designed for the model is necessary to connect the portable audio player to this accessory.) American Honda Motor Co., Inc. recommends you use a shock-resistant portable audio player such as a flash-memory player (e.g.

  • Page 6: Safety Information

    SAFETY INFORMATION For your safe use of the product, read this carefully before use. After reading, keep the information handy so that you can read it again if necessary. Safety information Actions that may cause an injury to the rider or others are described as follows: DANGER You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.

  • Page 7

    • Use this accessory only for the specified model. Use of the accessory on a model other than the specified model can cause an error in wiring, which possibly leads to fire, machine failure or other accident. • Use all the parts included in the accessory kit and the attachment kit designed for the model.

  • Page 8

    CAUTION • If you notice any machine failure (i.e. the digital audio system does not sound, faulty amplifier unit, etc.) or any abnormal symptom such as smoke or abnormal smell from the accessory, stop using the accessory immediately and consult with your authorized Honda motorcycle dealer.

  • Page 9: Features

    FEATURES This accessory is a digital audio system specially designed for Honda motorcycles. It allows you to listen to music while riding by connecting a commercially available portable audio player to this accessory. SPEAKER The speaker is waterproof and specially designed for motorcycles that are subject to various weather conditions.

  • Page 10: Parts List

    PARTS LIST This digital audio system consists of the following parts. Check for the missing parts against the Parts List before installation. OWNER’S MANUAL AMPLIFIER UNIT Honda EMBLEM Digital amplifier EMBLEM SPEAKER Emblem installation position Honda Emblem Digital amplifier EMBLEM Clean the surface where the emblem will be attached Refer to the model-specific Installation using isopropyl alcohol.

  • Page 11: Explanations Of Parts

    EXPLANATIONS OF PARTS You can turn the power ON and OFF and adjust the sound level with the amplifier unit. It is not designed to operate the portable audio unit connected to this accessory. • Note tha03.63.6550112 9.80 sohould b soet 03.n tadequte te...

  • Page 12: Operation Procedure

    OPERATION PROCEDURE Turning power ON to listen to music. Connect the digital audio system to the portable audio unit with the sub cord. STEREO MINI JACK TERMINAL OF PORTABLE AUDIO UNIT. etc. (ø3.5 mm 3-pin terminal, e.g. SUB CORD headphone terminal, etc.) Turn the portable audio unit ON that is connected to the digital audio system.

  • Page 13: Turning Power Off

    Turning power OFF Turn the power OFF as follows: Push the VOLUME DOWN button to turn the sound down to the minimum. Push the amplifier unit POWER button to turn the power OFF. POWER LIGHT The light should go OFF. Turn OFF the power of the portable audio unit connected to the amplifier unit.

  • Page 14: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE MEASURES Digital audio system does Power is OFF. Push the POWER button to turn not sound or sound level is the power ON. low. Volume is set at the minimum. Raise the volume either on the amplifier unit or on the portable audio unit connected to the digital audio system.

  • Page 15: Specifications

    SPECIFICATIONS AMPLIFIER Max. output 20 W + 20 W Load impedance 4 ohms Power source DC 13.2 V (Service range: DC 10 ~ 16 V) Grounding type Negative ground External dimension 69(W) x 38(H) x 122.5(D) (mm) Weight 315 g SPEAKER Max.

  • Page 16

    08A08-9H1-0000-81 MII 11775 (0610) © 2006 American Honda Motor Co., Inc - All Rights Reserved. Printed in Japan...
