CLUTCH

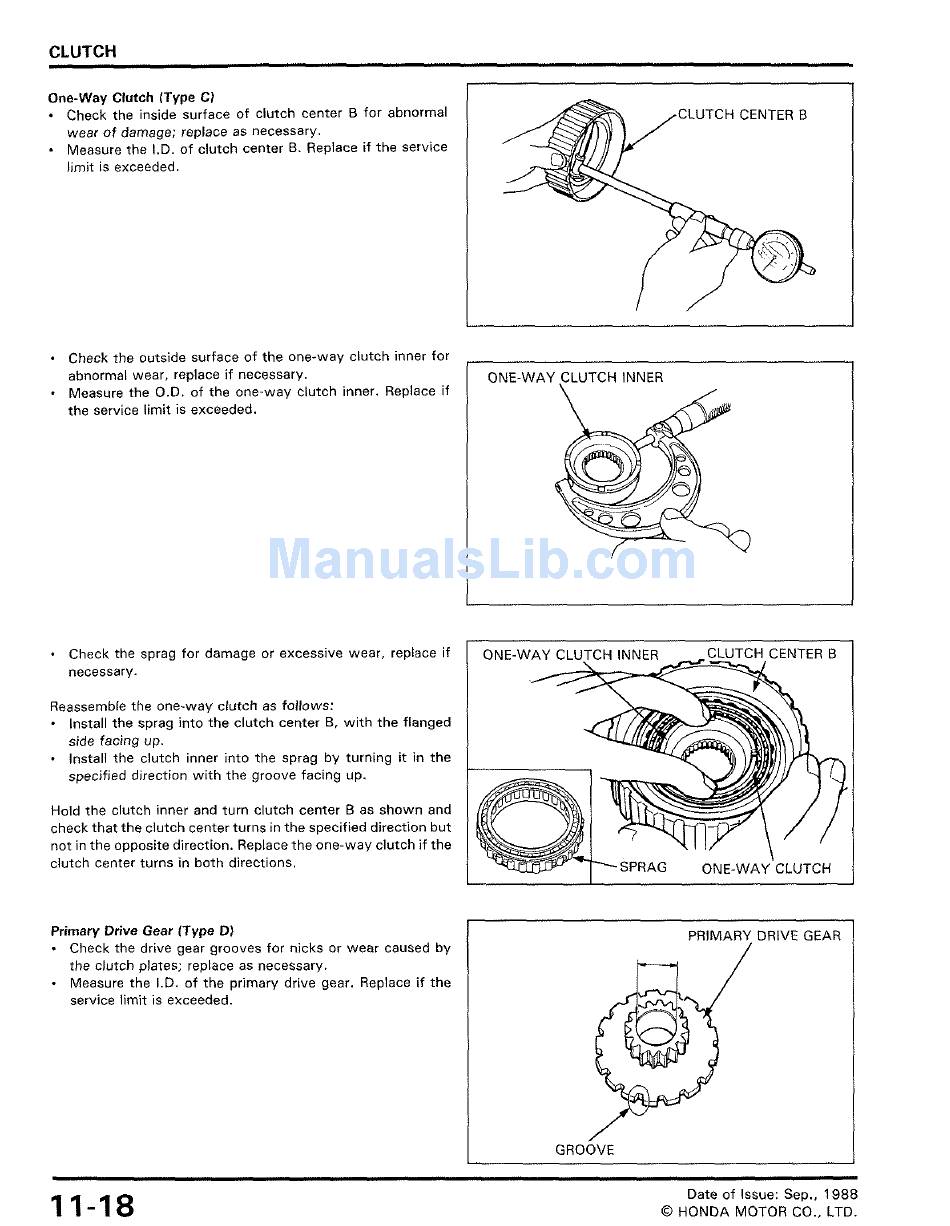

One-way Clutch (Type Ct
.
Check the inside surface of clutch center B for abnormal
wear o f damage; replace as necessary.
-
Measure the I.D. of clutch center B. Replace if the service
limit is exceeded.
Check the sprag for damage or excessive wear, replace if
necessary.
CLUTCH CENTER B
.
Check the outside surface of the one-way clutch inner for
Reassemble the one-way clutch as follows:
Install the sprag into the clutch center B, with the flanged
side facing up.
-
Install the clutch inner into the sprag by turning it i n the
specified direction with the groove facing up.
abnormal wear, replace if necessary.
Measure the O.D. of the one-way clutch inner. Replace if
the service limit is exceeded.
Hold the clutch inner and turn clutch center 8 as shown and
check that the clutch center turns in the specified direction but
not in the opposite direction. Replace the one-way clutch if the
clutch center turns i n both directions.
ONE-WAY CLUTCH INNER
Primary Drive Gear (Type D)
PRIMARY DRIVE GEAR
Check the drive gear grooves for nicks or wear caused by
the clutch plates; replace as necessary. .
Measure the I.D. of the primary drive gear. Replace i f the
service limit is exceeded.
