REMOVAL

Air Intake Silencer
Remove seat support (GTX DI models).

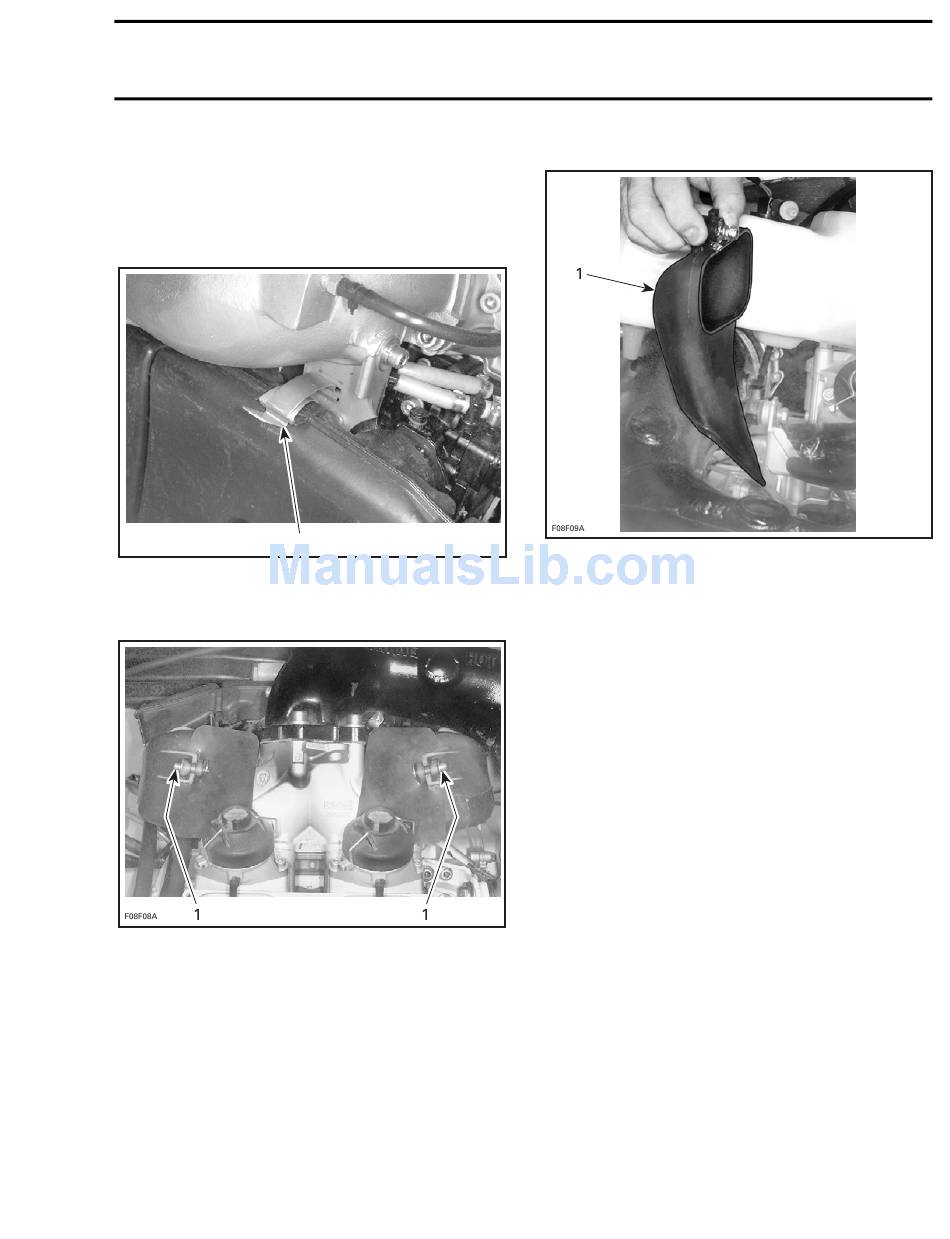

Unlock the clip no. 2 on top of air intake silencer.
F06D34A
1. Clip
Remove bolts retaining both air ducts to engine
(both sides).
1. Remove bolts
SMR2000-056_07_03A.FM
1
www.SeaDooManuals.net
Section 07 FUEL SYSTEM
Subsection 03 (AIR INTAKE)
Pull air ducts out.
1. Air duct
NOTE: Do not disconnect oil lines.
Push the air intake silencer out of the carburetor
adapter no. 3 or the throttle bodies on the DI
models.
Pull the air intake silencer rearward to remove it
from the lower bracket no. 4 and remove it in a
rotating movement.
The air intake silencer is a molded piece and it can
not be opened. It has an integrated flame arrester.

ASSEMBLY

Assembly is essentially the reverse of removal
procedures. However pay particular attention to
the following.
CAUTION: Do not modify air intake system,
otherwise calibration will be affected.
07-03-3
