Section 10 PROPULSION SYSTEM
Subsection 05 (VARIABLE TRIM SYSTEM)

GENERAL

To test VTS control module, motor or switch, refer
to INSTRUMENTS AND ACCESSORIES.
To have access to VTS module, remove seat.
Remove screws retaining electrical box support and
move it aside.

REMOVAL

Remove nut no. 14 and bolt no. 13 retaining VTS
rod no. 1 to sliding shaft no. 10.
Remove clamps no. 2.
Remove boot no. 3.

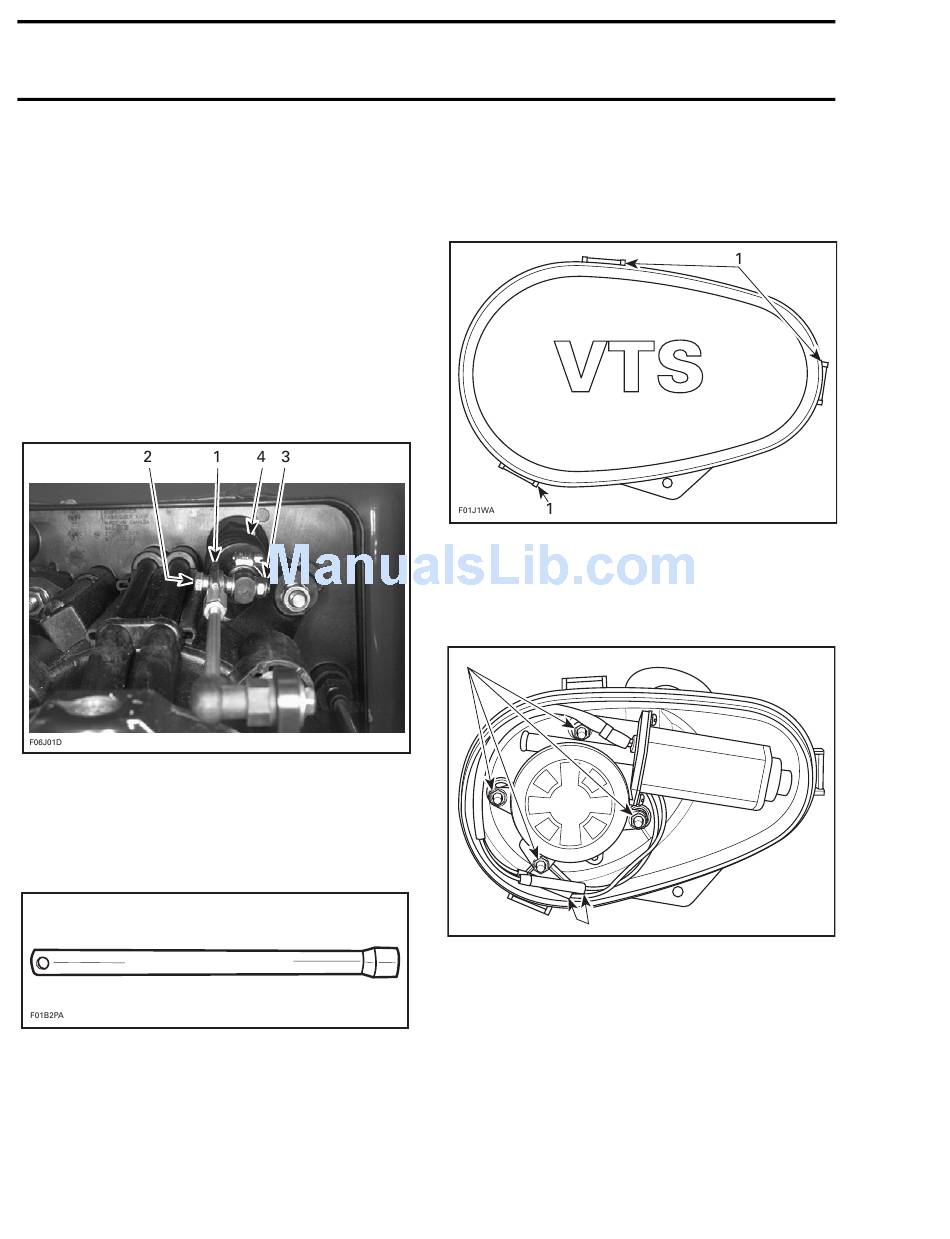

TYPICAL
1. VTS rod
2. Bolt
3. Lock nut
4. Rubber boot
To loosen nut no. 4, use VTS socket tool (P/N 295
000 133).
Remove sealing washer no. 5.
Disconnect wiring harnesses.
Pull out VTS assembly no. 6 from bilge.
10-05-2

DISASSEMBLY

Cover
Remove VTS cover no. 7 by pressing on tabs.
1. Press tabs to remove cover
Motor
Disconnect wires from motor.
Remove retaining nuts no. 11.
1
F01J1XA
1. Remove nuts
2. Disconnect wires
Pull on motor to remove it.
Worm and Sliding Shaft
Simply pull on worm no. 9 and sliding shaft no. 10
in order to remove them.
