Sea-doo RX Shop Manual page 342

Section 14 WIRING DIAGRAMS
Subsection 01 (WIRING DIAGRAMS)

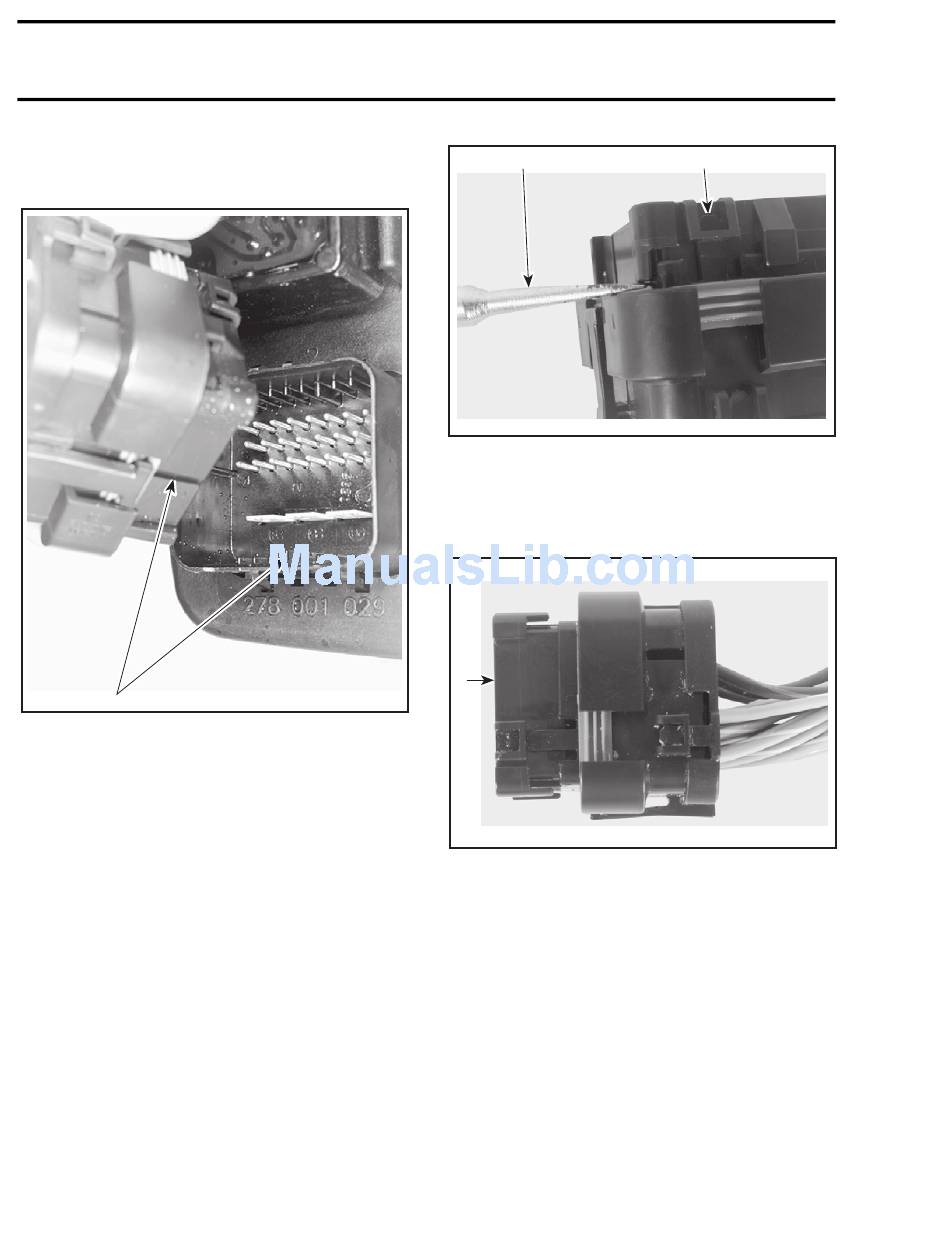

Each plug assembly is mechanically keyed to mate
only with identical mechanical keyed header on
the MPEM.
1
F00H12A
1. Mechanically keyed
Contact Removal
SIGNAL WIRE
Insert a screwdriver blade between the connector
and the wedge lock tab.
Release the locking tab and at the same time, pry
open the wedge lock to open position.
CAUTION: The wedge lock should never be re-
moved from the connector for insertion or re-
moval of the signal wire contacts.
14-01-4
1
F00H0OA
1. Screwdriver between wedge lock and connector
2. Locking tab
Repeat the same steps for the other locking tab
retaining the wedge lock.
The wedge lock is now in the open position.
1
F00H0PA
1. Wedge lock opened
While rotating the wire back and forth over a half
turn (1/4 turn in each direction), gently pull the wire
until the contact is removed.
