Exhaust Manifold - Sea-doo RX Shop Manual

Section 04 ENGINE
Subsection 07 (EXHAUST SYSTEM)

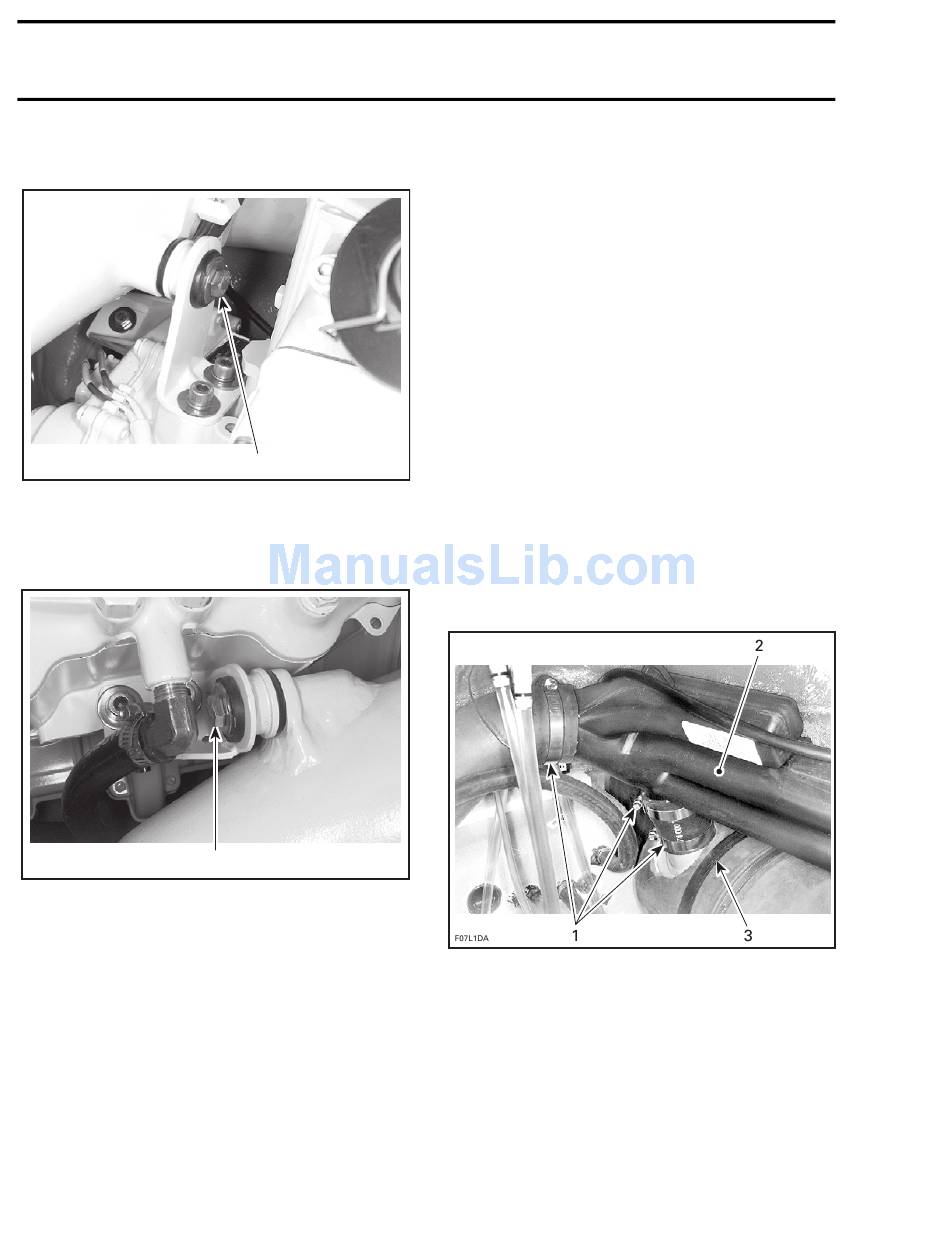

Loosen bolt no. 20 of tuned pipe head above the
engine magneto.
F06D1UA
1. Remove bolt
Remove tuned pipe head no. 10.
Loosen bolt no. 6 of tuned pipe cone beside the
engine water supply hose.
F06D1VA
1. Loosen bolt
Remove tuned pipe cone no. 5.
Block exhaust opening in the manifold to keep de-
bris from entering cylinder during threads cleaning
procedure.
04-07-4
1
1
Remove the stud no. 21 from "Y" manifold.
Use a M10 x 1.5 screw tap to clean the 4 threaded
holes on the "Y" manifold and the 2 threaded
holes on tuned pipe. Clean out the debris with a
spray cleaner and air pressure.
CAUTION: It is very important that the threads
are free of debris before installing new self-
locking fasteners.

Exhaust Manifold

Remove 8 Allen screws no. 12 and lock washers
no. 13 then withdraw exhaust manifold.
Resonators
RX Models
Remove vent tube support.
RX DI Models
Upper Type Resonators
Detach resonator from body.
Loosen clamps and disconnect hoses. Withdraw
resonator from watercraft.
TYPICAL
1. Loosen hose clamps
2. Upper type resonator
3. Muffler holding strap
www.SeaDooManuals.net
SMR2000-049_04_07A.FM
