Sea-doo RX Shop Manual page 98

Section 04 ENGINE
Subsection 06 (BOTTOM END)
Reed Valve

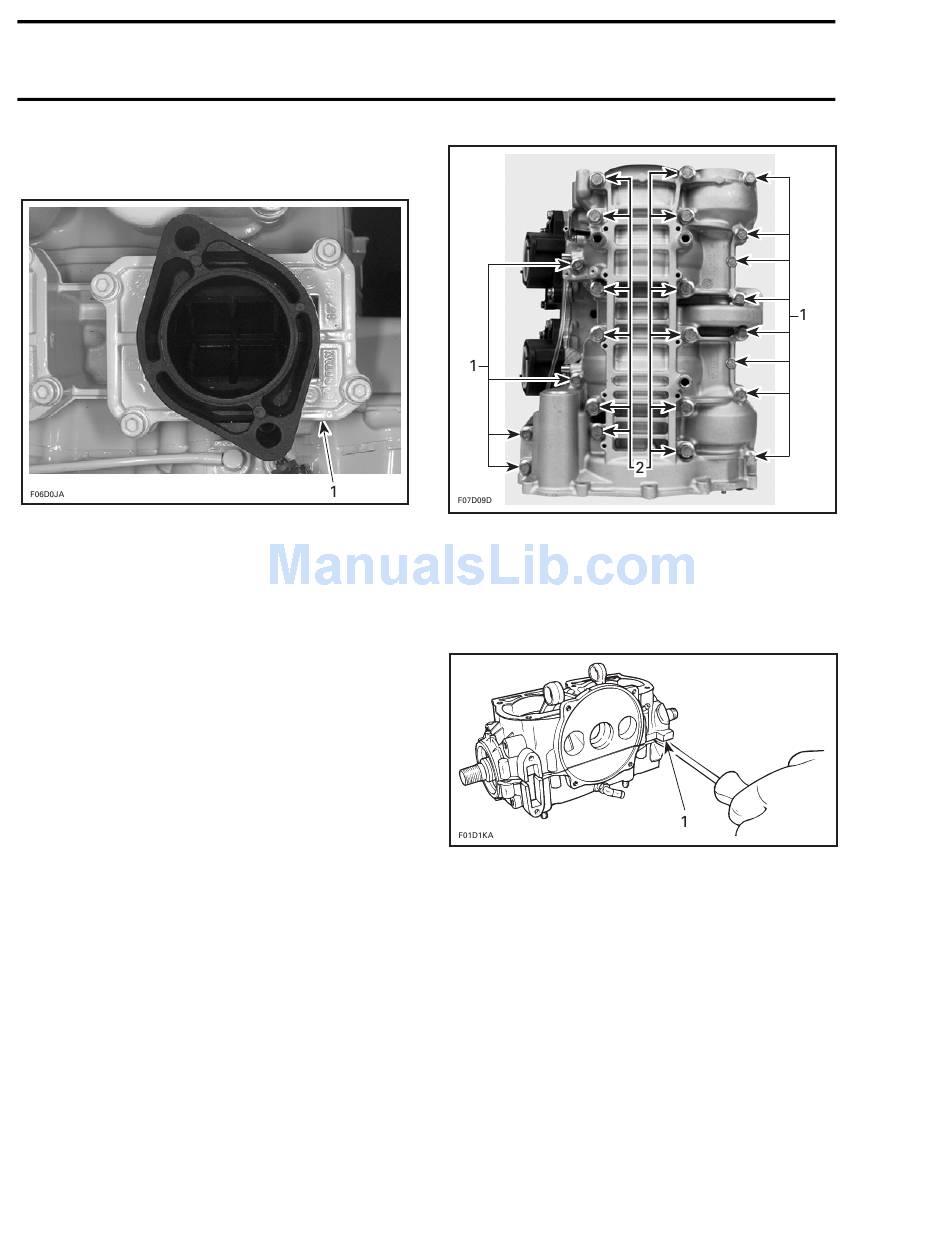

Remove both carburetor flanges.
1. Carburetor flange
Remove reed valves no. 28 from crankcase.
Crankcase
Before opening the bottom end, remove the fol-
lowing parts:
– magneto flywheel, refer to MAGNETO SYSTEM
– starter
– starter drive assembly
– reed valves
– air compressor cover (947 DI engines).
Place engine upright on crankcase magneto side.
Loosen crankcase screws.
04-06-4
1. M8 x 45 flanged screws
2. M10 x 73.5 flanged screws
Put engine back on a support. Insert a pry bar be-
tween crankcase lugs to separate halves.
CAUTION: Be careful to precision machined
surfaces.
TYPICAL
1. Separate halves by prying at provided lugs
