Section 11 STEERING SYSTEM
Subsection 02 (STEERING SYSTEM)

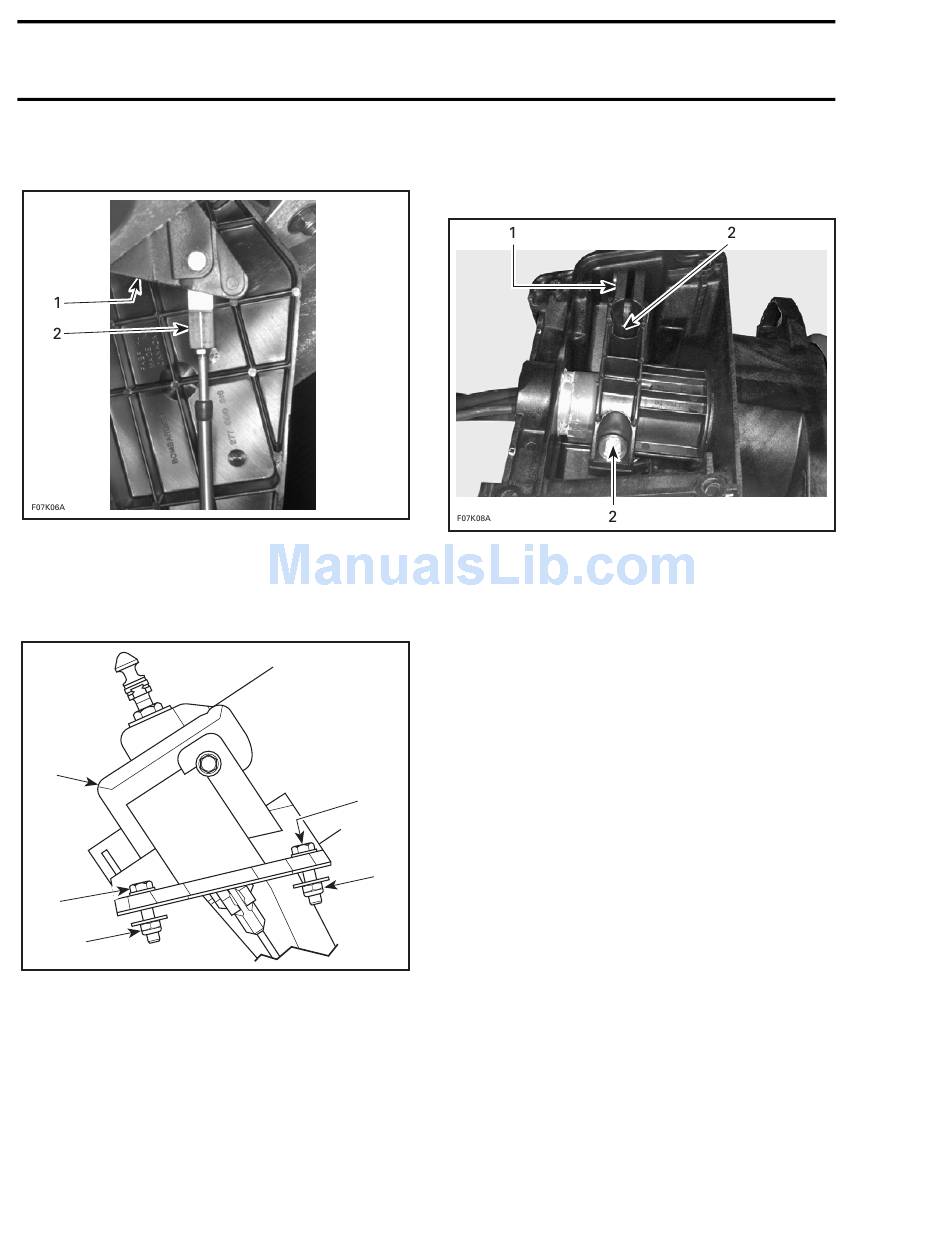

Disconnect the steering cable from the steering
stem arm no. 15.
1. Steering stem arm
2. Steering cable
Loosen bolts no. 11 retaining cable support no. 8
to steering support no. 12.
Loosen bolts no. 13 and lock nuts no. 14.
1
2
3
F07K07A
1. Steering support
2. Bolt
3. Lock nut
Remove steering support no. 12 with handlebar,
wiring harnesses and cables.
11-02-4
Steering Stem Arm and Support
Loosen bolts no. 17 retaining steering stem arm
no. 15 to support no. 16.
1. Steering stem arm
2. Bolts
Remove steering stem arm and support.
Steering Cable
Disconnect steering cable no. 24 from steering
stem arm no. 15.
Remove retaining block no. 10.
Disconnect ball joint no. 19 from jet pump nozzle.
Remove ball joint no. 19 and jam nut from cable.
Loosen nut no. 25, then remove half rings no. 26
and O-ring no. 20.
2
NOTE: To loosen nut, use steering cable tool (P/N
295 000 145).
Remove steering cable from watercraft.
3

ASSEMBLY

Assembly is essentially the reverse of disassem-
bly procedures. However, pay particular attention
to the following.
CAUTION: Apply all specified torques and ser-
vice products as per main illustration at the be-
ginning of this subsection.
