Sea-doo RX Shop Manual page 103

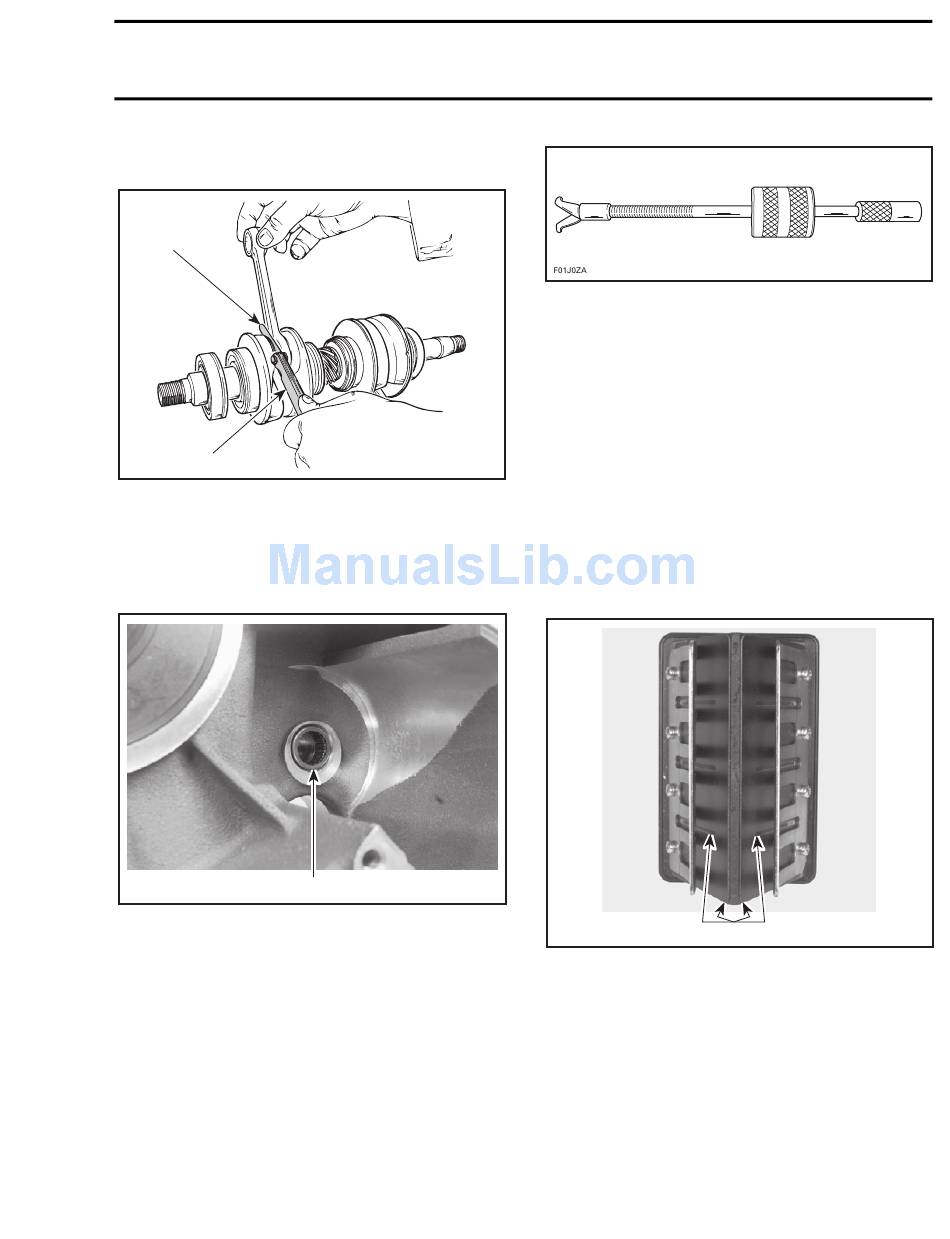

Using a feeler gauge, measure distance between
thrust washer and crankshaft counterweight.
1
2
F01D1WA
1. Measuring big end axial play
2. Feeler gauge
Starter Drive Bearing
Check bearing no. 23 of starter drive assembly
no. 27 in crankcase.
F06D1IA
1. Bearing of starter drive assembly
Removal
Starter drive bearing can be easily removed from
lower crankcase half using the following suggest-
ed tool or equivalent:
– Snap-on hammer puller including:
– handle CJ93-1
– hammer CJ125-6
– claws CJ93-4.
SMR2000-047_04_06A.FM
1
www.SeaDooManuals.net
Section 04 ENGINE
Subsection 06 (BOTTOM END)
Close puller claws so that they can be inserted in
end bearing. Holding claws, turn puller shaft clock-
wise so that claws open and become firmly tight
against bearing.
Slide puller hammer outwards and tap puller end.
Retighten claws as necessary to always maintain
them tight against bearing. Continue this way until
bearing completely comes out.
For installation, see below in this section.
Reed Valve
Check reed valve petals no. 29 for cracks or other
defects. The reed petals must lie completely flat
against the reed valve body no. 30. To check, hold
against light.
F06D1JA
1. No play
In case of a play, turn reed petals upside down and
recheck. If there is still a play, replace petals.
Check perfect condition of rubber coating on reed
valve body.
1
04-06-9
