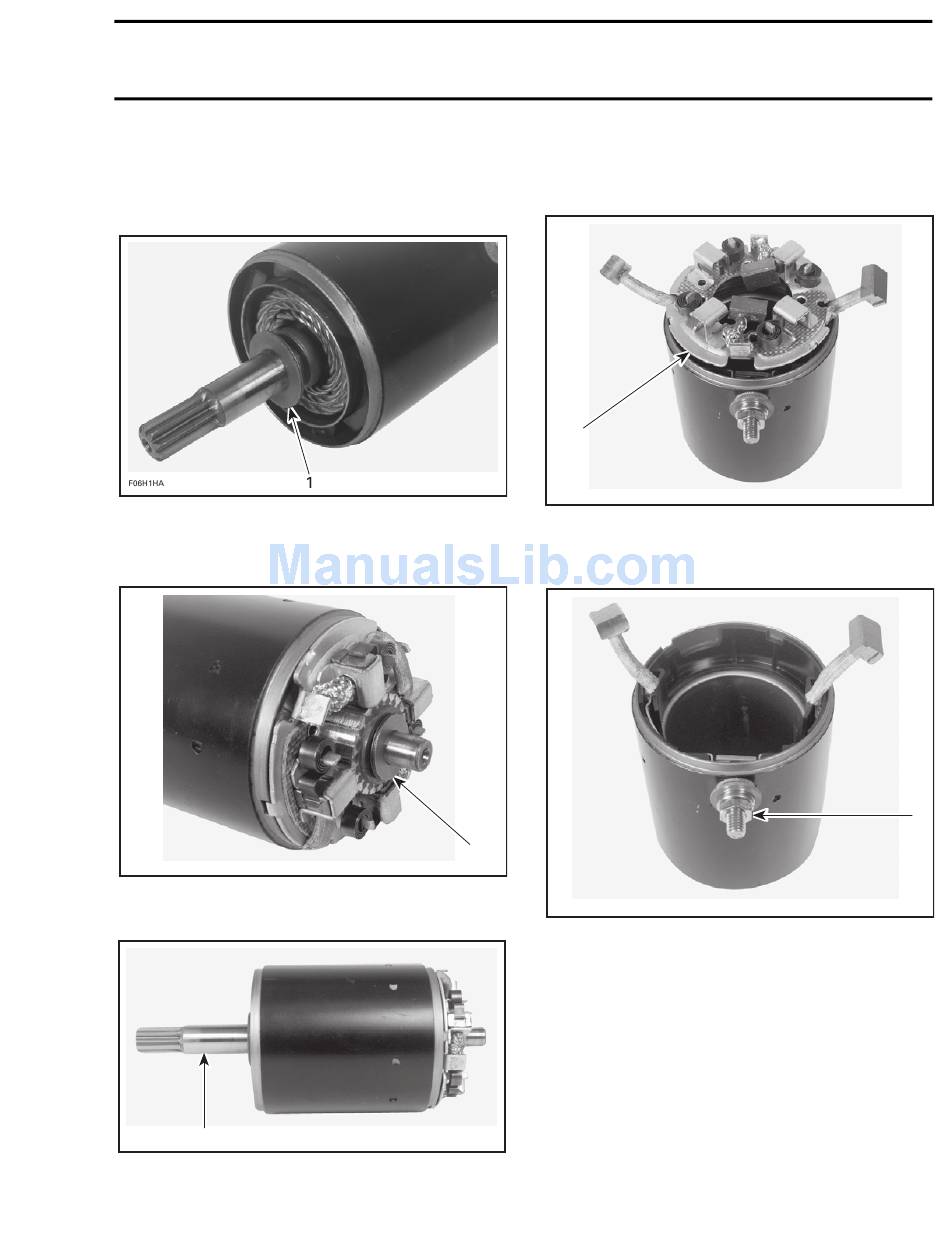

Remove end cover no. 3 and gasket on armature
shaft side.
Remove thrust washers no. 19 from armature
shaft.
1. Thrust washers
Remove the other end cover no. 10 and gasket.
Remove the 3 washers no. 18 from armature shaft.
F06H1IA
1. Washers
Remove armature no. 11.
1
F06H1JA
1. Pull armature shaft
SMR2000-062_09_04A.FM
Section 09 ELECTRICAL SYSTEM
Release brush wires of yoke from brush holder
no. 2.
Remove brush holder no. 2.
1
F06H1KA
1. Remove brush holder
To remove brushes from yoke no. 1, loosen nut
and remove washers.
1
F06H1LA
1. Loosen nut and remove washers
