Sea-doo RX Shop Manual page 99

1
F01D1LA
TYPICAL

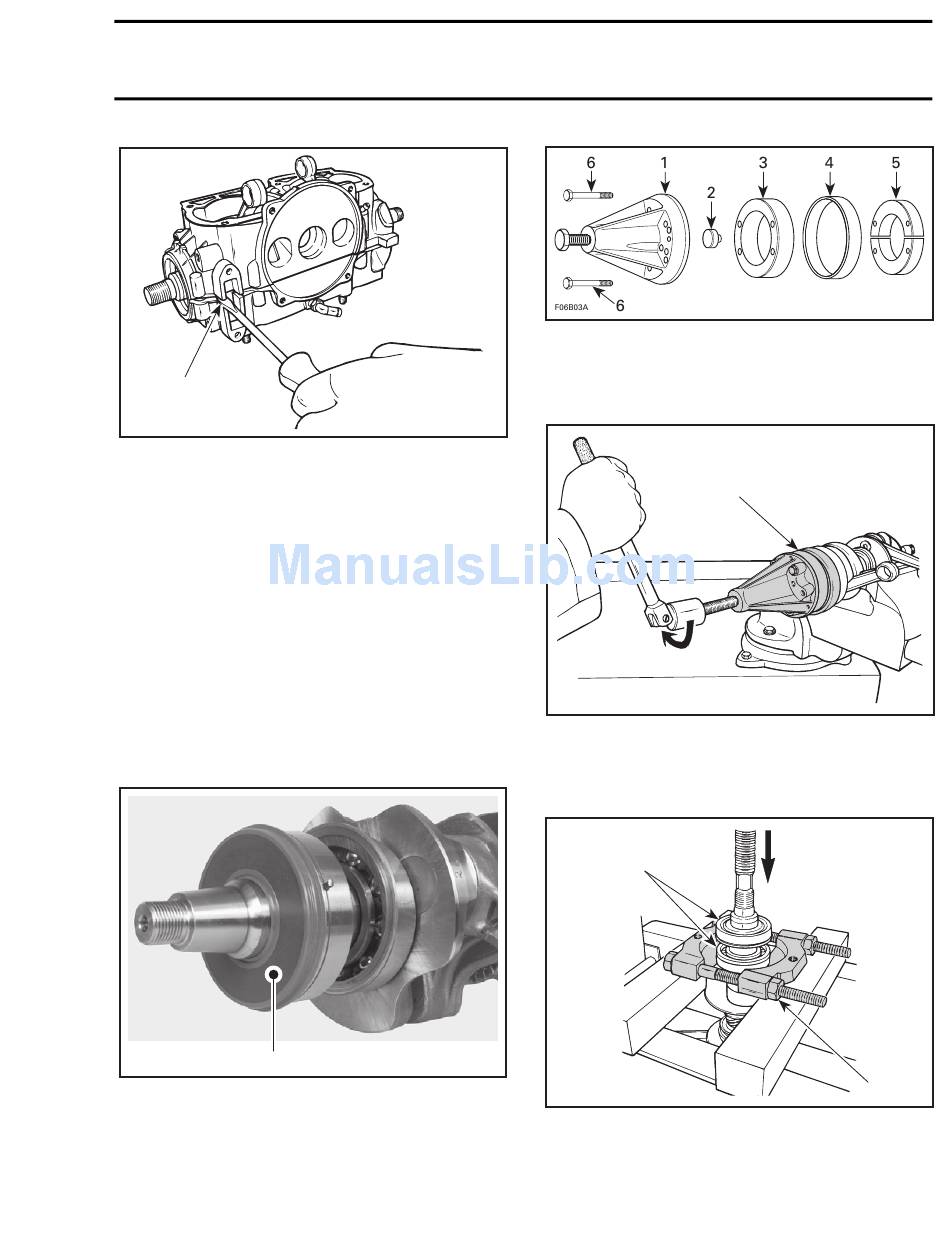

1. Separate halves by prying at provided lugs
Remove crankshaft and counterbalance shaft.
947 DI Engines
Open air compressor and disconnect the piston as
described in ENGINE MANAGEMENT.
All Engines
Crankshaft Bearing and Seal
If a crankshaft end seal no. 5 has to be replaced,
bottom end must be opened.
NOTE: Do not needlessly remove crankshaft bear-
ings.
Remove end seal(s).
1
F06D1GA
TYPICAL
1. End seal
To remove end bearings from crankshaft, use the
following tools.
SMR2000-047_04_06A.FM
1. Puller (P/N 420 877 635)
2. Protective cap (P/N 290 877 414)
3. Distance ring (P/N 420 876 569)
4. Ring (P/N 420 977 480)
5. Ring halves (P/N 420 876 330)
6. Screw (P/N 420 940 755)
F01D1OA
TYPICAL
1. Removing crankshaft bearing
Or, use a bearing extractor such as Proto no. 4332
and a press to remove two bearings at a time.
F01D1PA
1. Press bearings out
2. Bearing extractor
www.SeaDooManuals.net
Section 04 ENGINE
Subsection 06 (BOTTOM END)
1
1
2
04-06-5
