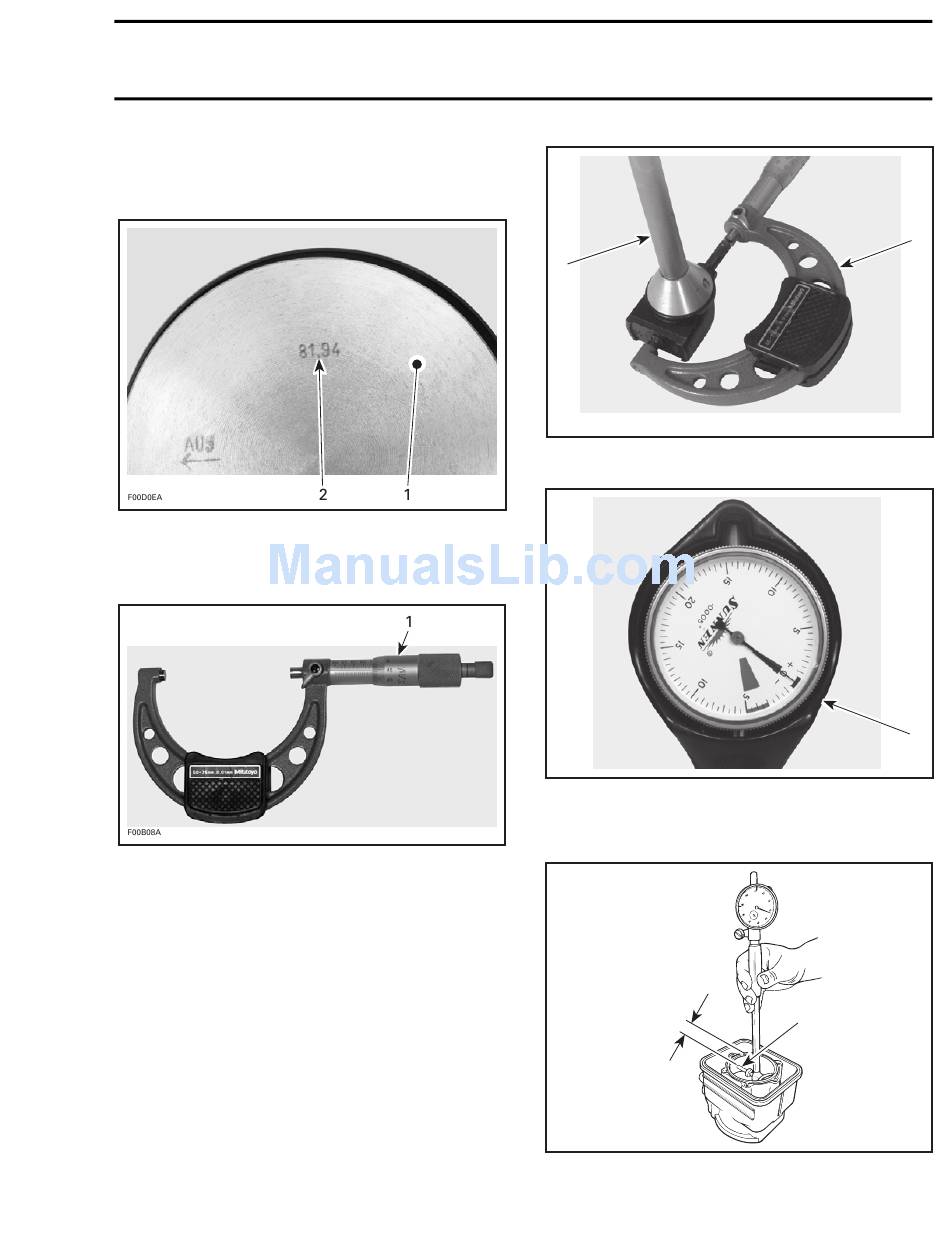

Piston/Cylinder Wall Clearance
To determine the piston dimension, take the mea-
surement on the piston dome.
1. Piston dome
2. Piston measurement
Adjust and lock a micrometer to the specified val-
ue on the piston dome.
1. Micrometer set to the piston dimension
With the micrometer set to the piston dimension,
adjust a cylinder bore gauge to the micrometer di-
mension and set the indicator to zero.
SMR2000-046_04_05A.FM
2
F00B09A
1. Use the micrometer to set the cylinder bore gauge
2. Dial bore gauge
F00B0AA
1. Indicator set to zero
Position the dial bore gauge at 16 mm (5/8 in) be-
low cylinder top edge.
F01D0KA
1. Measuring perpendicularly (90°) to piston pin axis
A. 16 mm (5/8 in)
www.SeaDooManuals.net
Section 04 ENGINE
Subsection 05 (TOP END)
1
A
1
1
04-05-13
