Section 11 STEERING SYSTEM
Subsection 03 (ADJUSTABLE STEERING)
Steering Stem and Steering Support
Unscrew nut and remove pivot bolt no. 25 retaining
steering support no. 24 to steering stem no. 19.
Remove adjuster screw from block and detach
steering support from steering stem.
Unscrew threaded pivots to remove threaded block
from steering stem no. 19.

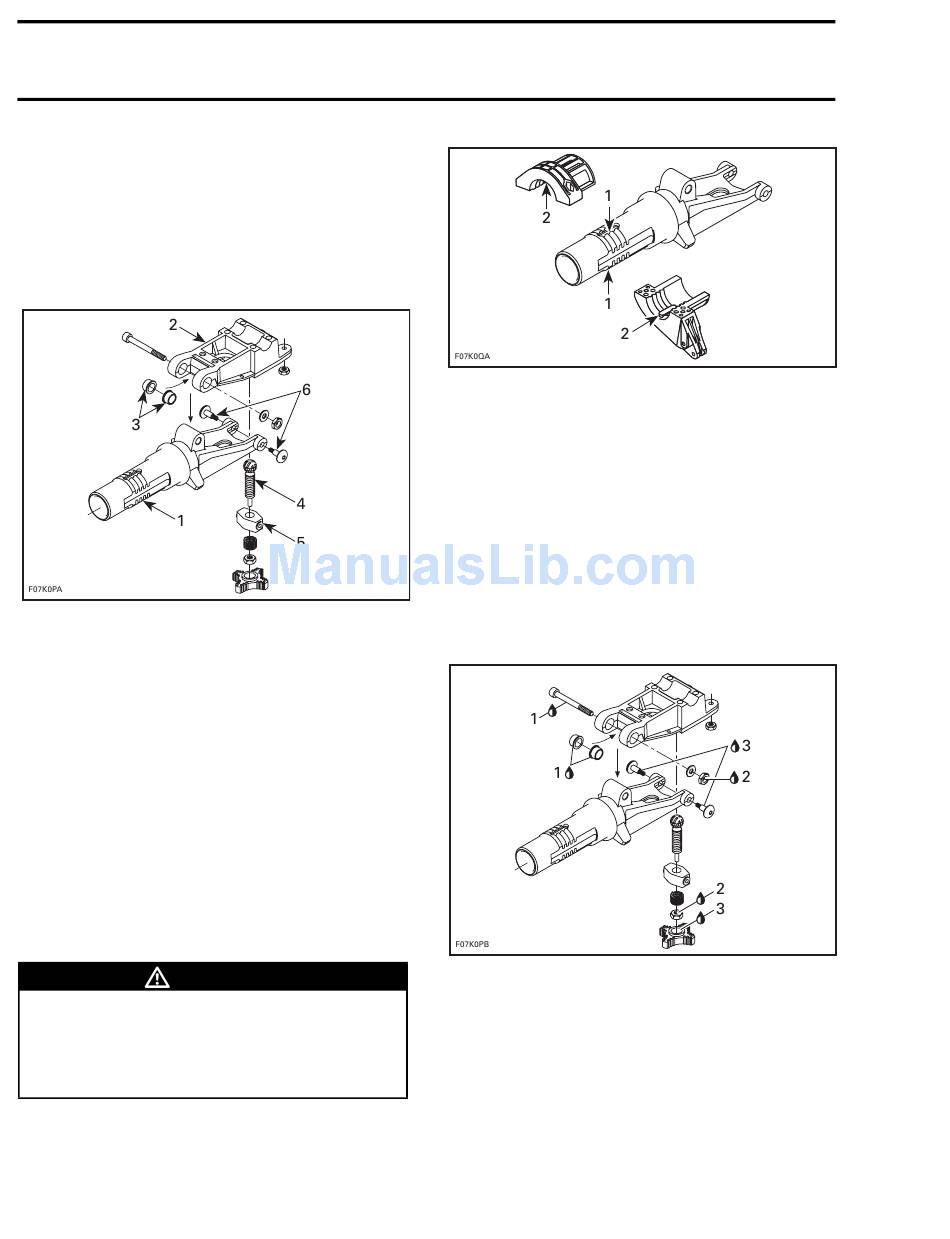

1. Steering stem
2. Steering support
3. Support bushing
4. Adjuster screw
5. Threaded block
6. Threaded pivots

ASSEMBLY

Assembly is essentially the reverse of disassem-
bly procedures. However, pay particular attention
to the following.
CAUTION: Apply all specified torques and ser-
vice products as per main illustration at the be-
ginning of this subsection.
Steering Stem Arm and Support
Position steering stem arm no. 15 and support
no. 16 onto steering stem.
WARNING
Make sure the integrated flat keys of the steer-
ing stem arm and support are properly seated
in steering stem keyways. Steering stem arm
must be locked in place before torquing the
bolts.
11-03-6
1. Keyways
2. Integrated flat key
Replace lock nuts no. 18 by new ones.
Torque bolts no. 17 of steering stem arm to
6 N•m (53 lbf•in).
Steering Stem and Steering Support
Install support bushings no. 30 on steering sup-
port.
Apply Loctite 767 antiseized lubricant (P/N 413
701 000) on pivot bolt no. 25.
CAUTION: Make sure antiseize lubricant does
not come in contact with threads of bolt.
1. Antiseize lubricant
2. Loctite 271
3. Loctite 243
