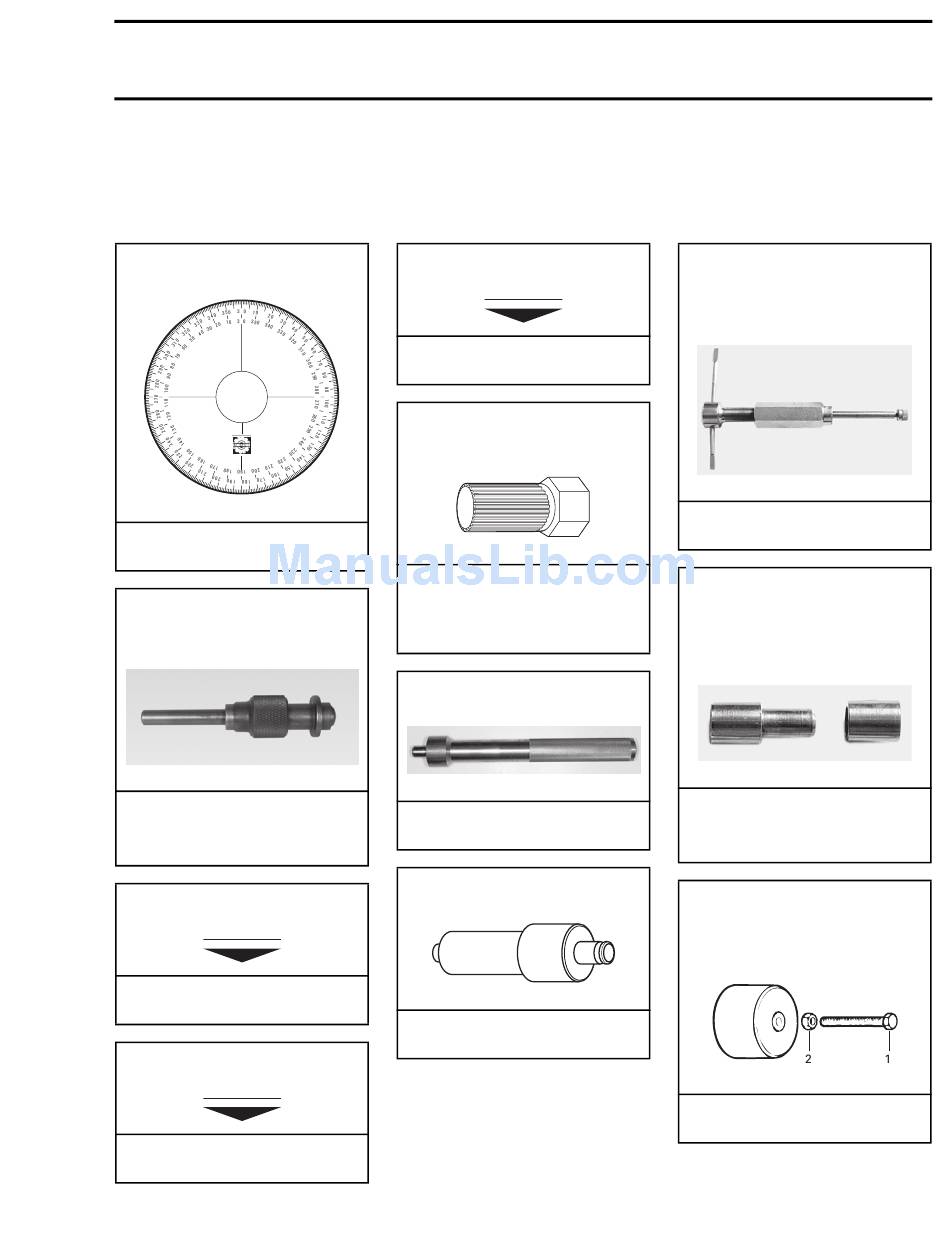

MANDATORY SERVICE TOOLS

ENGINE

Degree wheel
P/N 529 035 607
6
6
A00B334
APPLICATION
717 and 787 engines.
Piston circlip installer
A) P/N 529 035 562
B) P/N 529 035 563
F06B014
APPLICATION
A) 717 and 787 engines.
B) 947 engine.
Air compressor ring compressor
P/N 529 035 713
NEW
APPLICATION
947 DI engine.
Carbon dam guide
P/N 529 035 715
NEW
APPLICATION
947 DI engine.
SMR2000-038_01_02A.FM
Section 01 SERVICE TOOLS AND PRODUCTS
Subsection 02 (MANDATORY SERVICE TOOLS)
Carbon dam compressor
P/N 529 035 716
NEW
APPLICATION
947 DI engine.
PTO flywheel
remover/installer
P/N 295 000 001
F01J0T4
APPLICATION
717 engine.
NOTE: This tool is also used for
the impeller.
Bearing pusher
P/N 420 876 501
F00B074
APPLICATION
717 and 787 engines.
Starter drive bearing pusher
P/N 290 876 502
F06B054
APPLICATION
947 engine.
www.SeaDooManuals.net
Piston pin puller
P/N 529 035 503
Expansion sleeve
P/N 295 000 117 (787 engine)
F00B0T4
APPLICATION
All engines.
Sleeve set
A) P/N 529 035 542
(20 mm sleeve)
B) P/N 529 035 543
(21 mm sleeve)
F00B0U4
APPLICATION
A) 717 and 787 engines.
B) 947 engine.
Puller ass'y
P/N 290 876 488
1) Screw P/N 290 240 860
2) Hexagonal nut P/N 290 242 210
F01B0I4
APPLICATION
717 and 787 engines.
0
