Sea-doo RX Shop Manual page 282

Section 10 PROPULSION SYSTEM
Subsection 03 (DRIVE SYSTEM)
Circlip

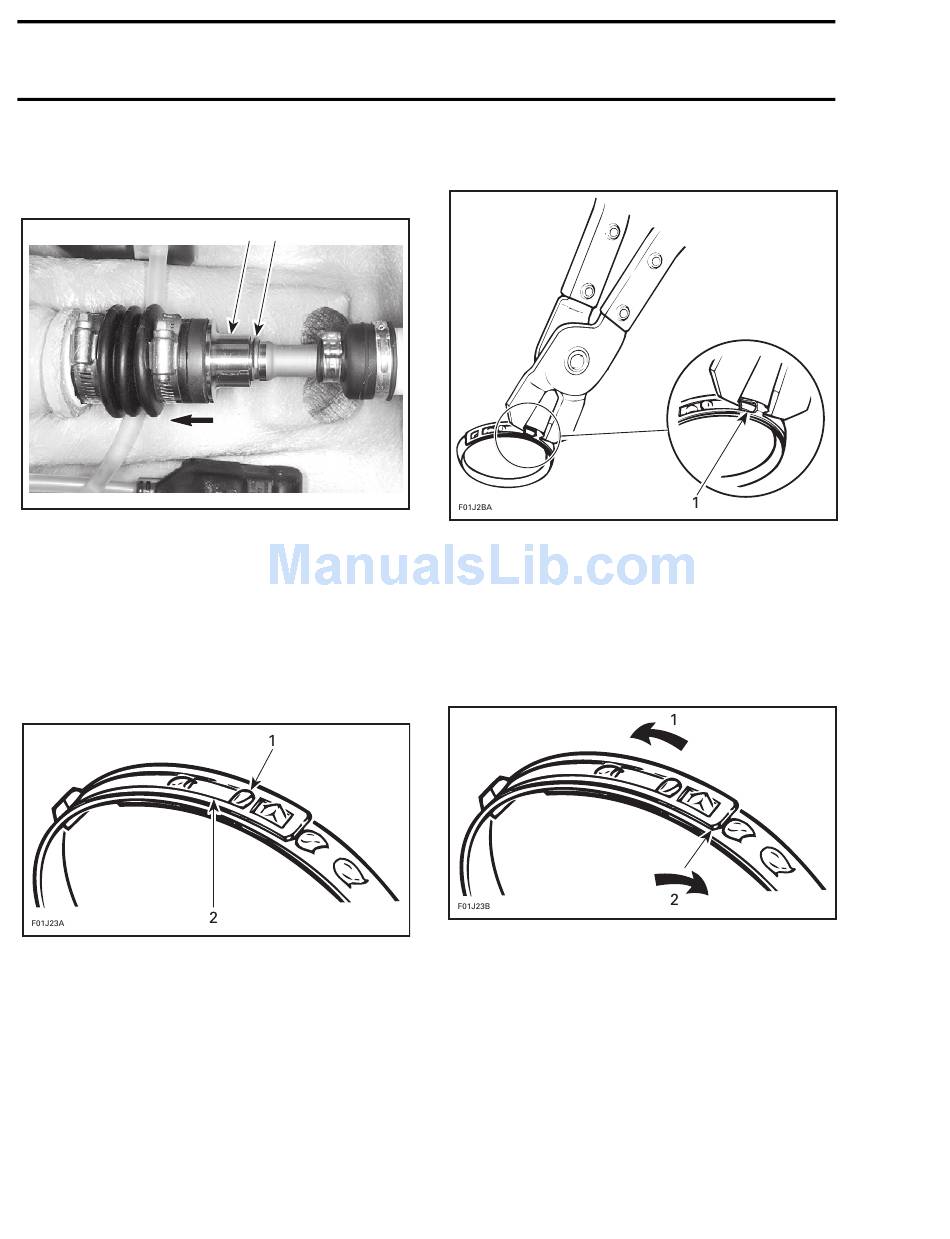

Push the floating ring to compress the boot. Insert
the circlip no. 5 in the drive shaft groove.
F06I06A
1. Push floating ring
2. Insert circlip in the groove
Slide the floating ring onto the circlip.
Large Clamp
Secure large clamp no. 2 as follows:
– Use pliers (P/N 295 000 069) as for removal.
– Manually engage holding hook in large window.
This is a pre-clamping position only.
PRE-CLAMPING POSITION
1. Holding hook
2. Large window
10-03-6
1 2
www.SeaDooManuals.net
– Insert pointed tips of pliers first in closing
hooks.
TYPICAL
1. Closing hooks
– Squeeze pliers. When both large and small win-
dows are directly over the 2 locking hooks,
press those windows down to engage hooks in
windows.
NOTE: At installation, clamp tail should be in op-
posite direction of engine rotation.
1. Engine rotation (counterclockwise)
2. Tail in opposite direction
