Sea-doo RX Shop Manual page 189

Section 07 FUEL SYSTEM
Subsection 02 (FUEL CIRCUIT)

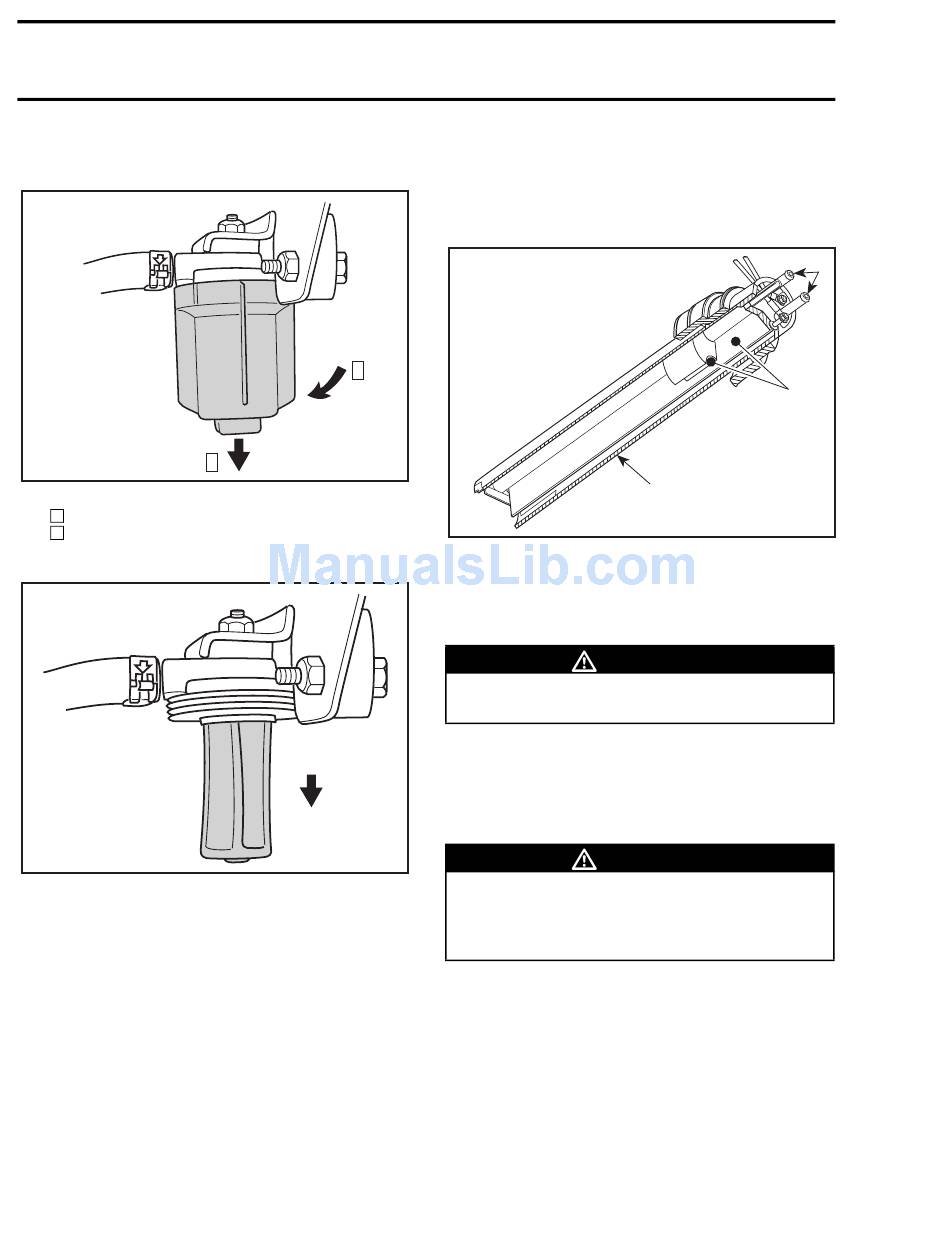

Unscrew the fuel filter bowl no. 12 counterclock-
wise then pull toward the bottom.
F01F01A
TYPICAL
1
Step : Loosen counterclockwise
2
Step : Pull
Pull fuel filter no. 13 toward the bottom.
F01F04A
TYPICAL
DI Models
A replaceable inline filter is located near the fuel
tank. A strainer is located at the air/fuel rail fuel
inlet. Another filter is located at the electric fuel
pump inlet. The pump has to be removed from the
fuel tank to have access to its filter. Refer to EN-
GINE MANAGEMENT (DI) section.
07-02-4
1
2
Fuel Baffle Pick Up
Carburetor-Equipped Models
NOTE: The baffle pick up has an integrated fuel
sender for the fuel gauge.
F01F20A
1. Pick up tube
2. Fuel sensor
3. Baffle pick up
Disconnect BLACK negative cable, then RED pos-
itive cable of battery.
Always disconnect battery cables exactly in
the specified order, BLACK negative cable first.
Open storage compartment cover.
Remove storage basket from watercraft.
Remove front air intake.
Siphon fuel tank.
Fuel is flammable and explosive under cer-
tain conditions. Always work in a well venti-
lated area. Always wipe off any fuel spillage
from the watercraft.
Remove steering assembly. Refer to STEERING
SYSTEM for procedure.
