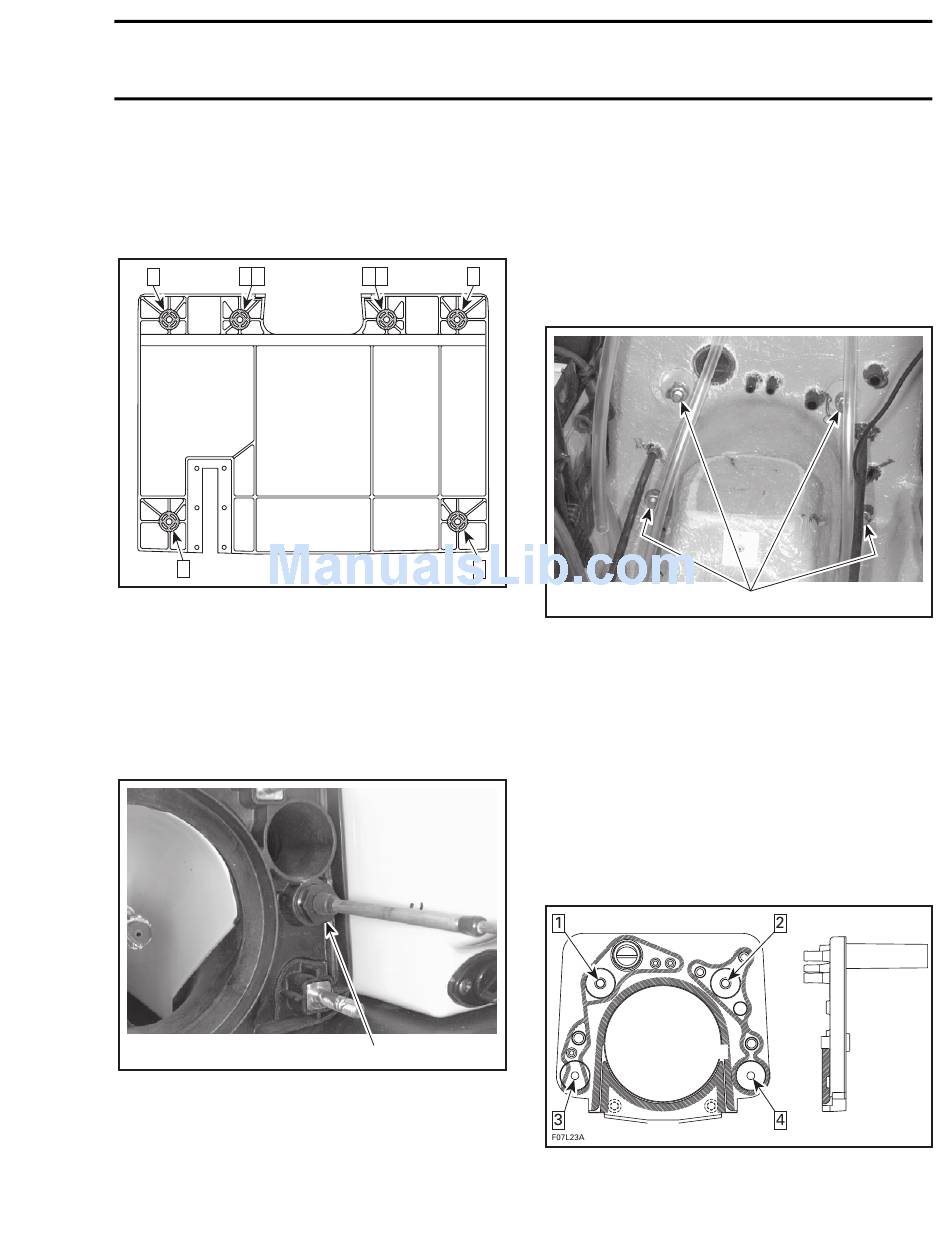

Jet Pump Support - Sea-doo RX Shop Manual

Installation
Apply Loctite The Right Stuff Gasket as indicated
by the shaded areas in the next illustrations. Fol-
low also the torquing sequence (if applicable) as
shown in the same illustrations.
3 7 1
5
F07L0DA

JET PUMP SUPPORT

Removal
Remove jet pump. Refer to JET PUMP.
Remove inlet grate and riding plate.
Remove ball joint, boot, nut, half rings and O-rings
from steering cable.
F05K02A
TYPICAL
1. Unscrew nut
SMR2000-071_12_02A.FM
Subsection 02 (ADJUSTMENT AND REPAIR)
Remove ball joint, boot, nut, half rings and O-rings
from reverse cable.
Remove boot and nut from VTS sliding shaft (RX
models).
Disconnect water supply hose, water return hose
and bailer hoses.
8 2 4
Remove nuts, lock washers and flat washers re-
taining jet pump support.
6
TYPICAL
1. Remove nuts
Using a heat gun, heat jet pump support until it is
possible to pull it.
NOTE: Shims may have been installed between
support and body. Do not remove these shims,
otherwise jet pump alignment will be altered.
Installation
Apply Loctite The Right Stuff Gasket as indicated
by the shaded areas in the next illustrations. Fol-
low also the torquing sequence as shown in the
same illustrations.
1
www.SeaDooManuals.net
Section 12 HULL/BODY
F07L0AA
1
12-02-13
