Section 04 ENGINE
Subsection 03 (REMOVAL AND INSTALLATION)
NOTE: Engine will have to be raised inside bilge
to disconnect drain hose before removing from
bilge.
Refer to COOLING SYSTEM for proper water hose
location.
Tuned Pipe
To remove tuned pipe, refer to EXHAUST SYSTEM.
Air Intake Silencer
To remove air intake silencer, refer to AIR INTAKE.
Carburetor/Throttle Body
Carburetor-Equipped Models
Turn fuel valve to OFF.
Disconnect fuel supply and fuel return hoses.
To remove carburetors, refer to CARBURETOR for
proper procedure.
DI Models
Remove air/fuel rail. Refer to ENGINE MANAGE-
MENT.
All Models
Engine Support
NOTE: Be careful when removing engine sup-
port(s) or rubber mount adapters, shims could
have been installed underneath. Shims control
engine/jet pump alignment. Always note position
of shims for reinstallation, to avoid altering engine
alignment.
Remove engine support mount screws.

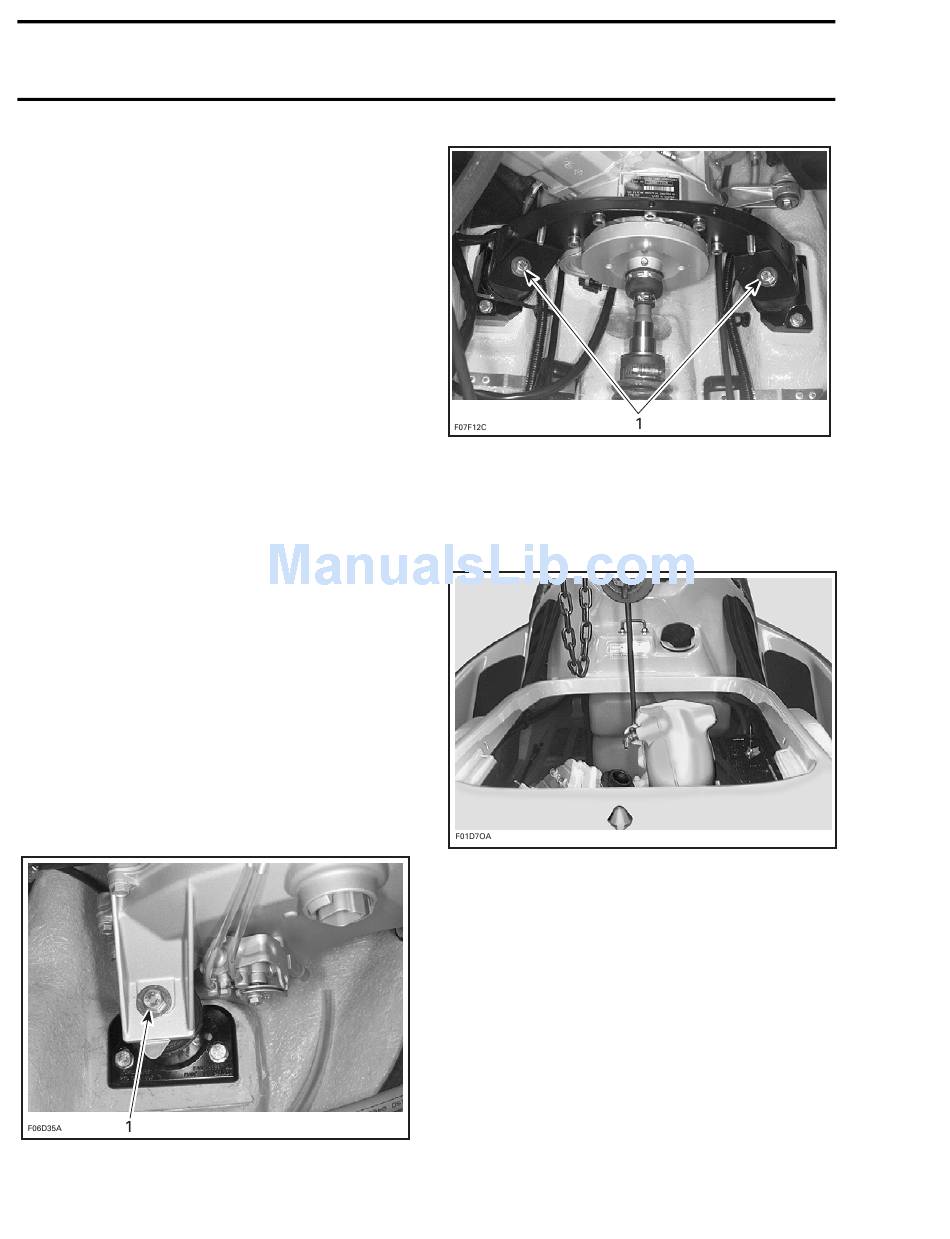

FRONT SUPPORT
1. Remove screw
04-03-2
REAR SUPPORT
1. Remove screws
Lifting Engine
Engine can be easily lifted by inserting a hook into
exhaust manifold eyelet.
TYPICAL
Using a chain block, a hoist or other suitable equip-
ment, slightly lift engine to ease the remaining com-
ponent removal.
CAUTION: Take care not to damage cable or oil
injection hoses.
