DISASSEMBLY

Engine has to be removed from watercraft and top
end has to be disassembled to open bottom end.
Refer to REMOVAL AND INSTALLATION and
TOP END.
PTO Flywheel

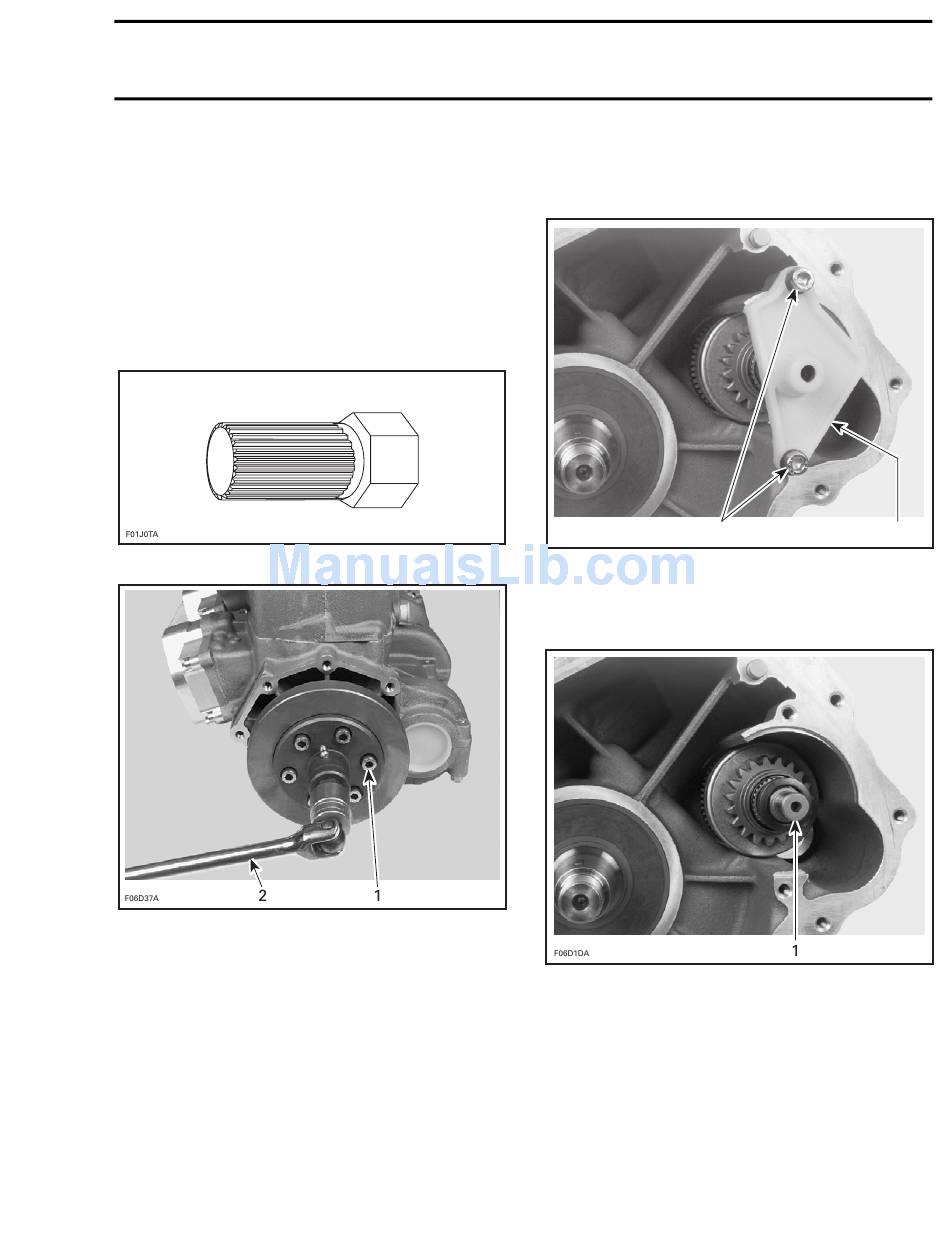

Use PTO flywheel remover (P/N 295 000 001) to
hold flywheel and remove Allen screws no. 21 re-
taining coupler no. 20 to PTO flywheel.
PTO FLYWHEEL REMOVER TOOL
1. Loosen Allen screws
2. Breaker bar locking crankshaft
Remove the coupler no. 20.
SMR2000-047_04_06A.FM
Starter Drive Assembly
Loosen 2 Allen screws no. 24 retaining starter
drive cover no. 25.
F06D1CA
1. Cover
2. Allen screw
Remove starter drive cover no. 25 and spring no. 9.
Remove starter drive assembly no. 27.
1. Starter drive assembly
www.SeaDooManuals.net
Section 04 ENGINE
Subsection 06 (BOTTOM END)
2 1
04-06-3
