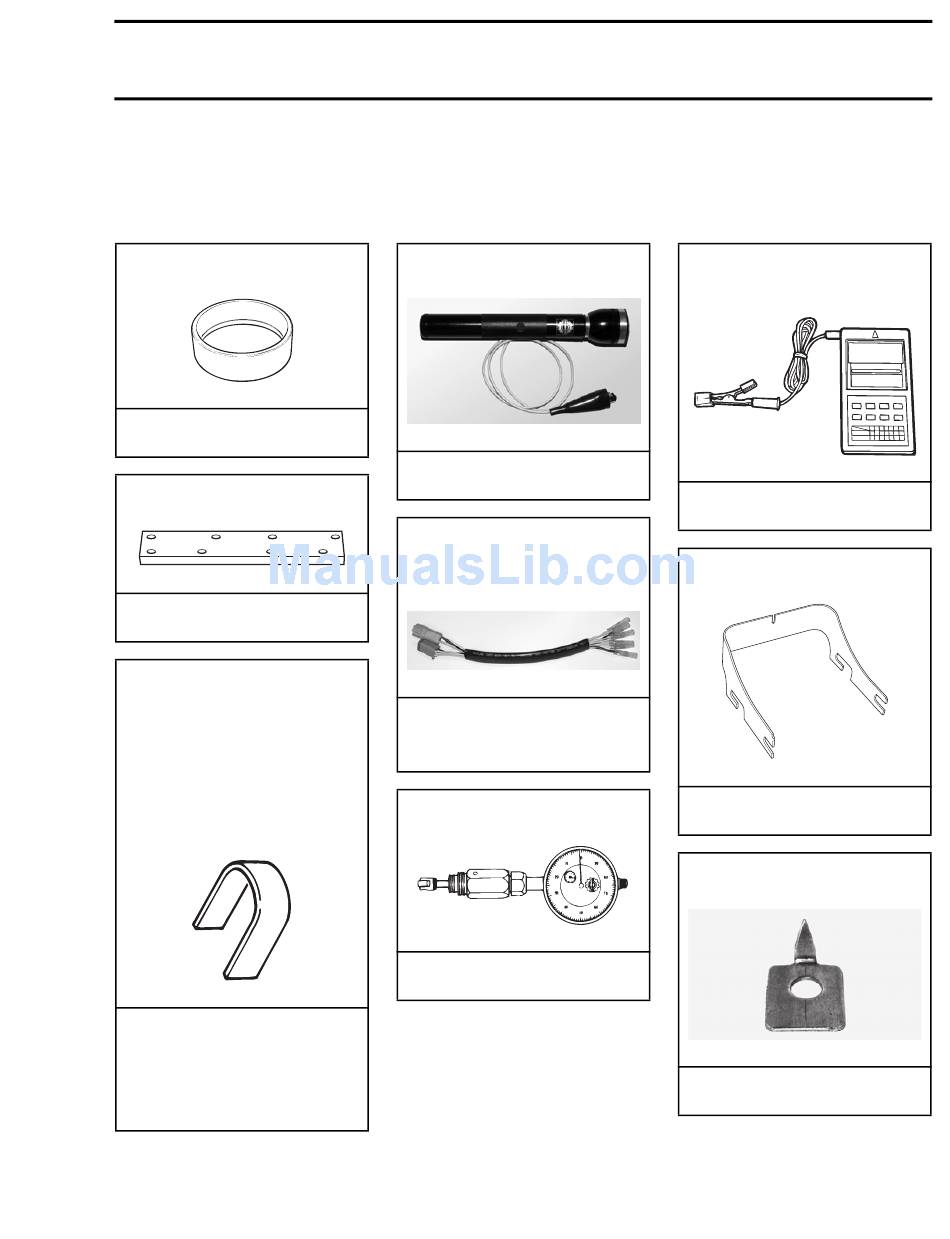

OPTIONAL SERVICE TOOLS

ENGINE

Coil centering tool
P/N 420 876 922
A01B1V4
APPLICATION
717 engine.
Cylinder aligning tool
P/N 420 876 904
A00B084
APPLICATION
717 engine.
Distance gauge
A) P/N 529 034 800,
14 mm (.551 in)
B) P/N 529 034 900,
15.4 mm (.606 in)
C) P/N 529 035 100,
11.5 mm (.453 in)
D) P/N 529 035 000,
7.5 mm (.295 in)
F01B0H4
APPLICATION
A) 717 engine.
B) 787 engine.
C) 947 engine (MAG).
D) 947 engine (PTO).
SMR2000-038_01_03A.FM
Section 01 SERVICE TOOLS AND PRODUCTS
Subsection 03 (OPTIONAL SERVICE TOOLS)
Stroboscopic timing light
P/N 529 031 900
A00B4F4
APPLICATION
All models.
A) Four-pin magneto harness
P/N 295 000 131
B) Six-pin magneto harness
P/N 295 000 136
F01B284
APPLICATION
A) 717 engine.
B) 787 and 947 engines.
Dial indicator (TDC gauge)
P/N 295 000 143
A00B4E4
APPLICATION
All models.
www.SeaDooManuals.net
Digital/induction type
tachometer
P/N 529 014 500
F01B1G4
APPLICATION
All models.
Timing mark pointer
P/N 295 000 130
F01B2O4
APPLICATION
717 engine.
Timing mark pointer
P/N 295 000 135
F01H544
APPLICATION
787 and 947 engines.
