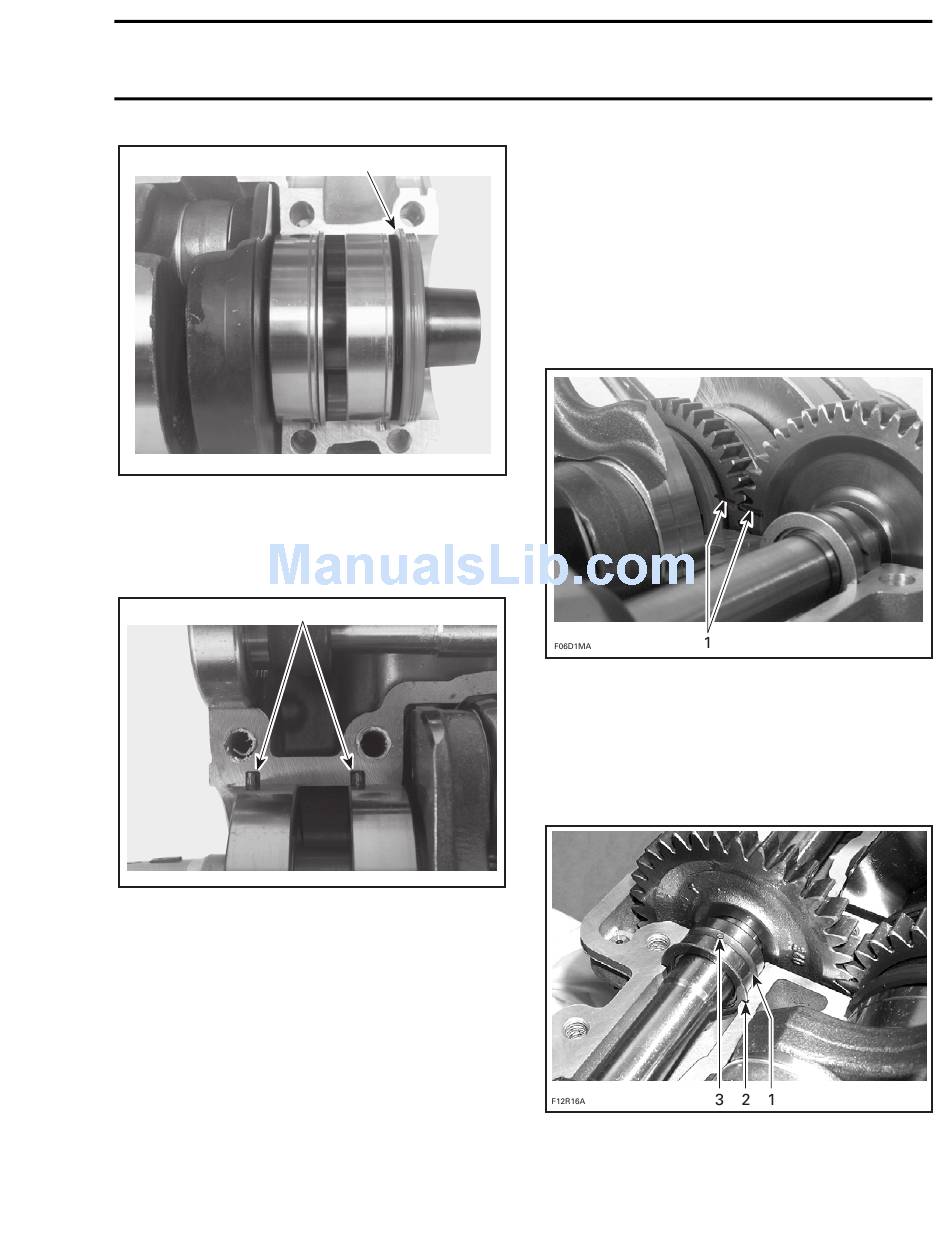

Sea-doo RX Shop Manual page 105

F06D1LA
1. Seal lip in crankcase recess
Drive Pin
Make sure drive pins no. 6 of bearings are proper-
ly installed in crankcase recesses at assembly.
F00D0OA
1. Drive pins
Counterbalance Shaft
Install bearing no. 31 and washer no. 32.
When installing seals no. 17, apply a light coat of
Molykote 111 on seal lips.
Prior to installation, place bearings no. 15 into a
container filled with oil, previously heated to 75°C
(167°F). This will expand bearings and ease their
installation.
Reinstall counterweights no. 16 using a press and
take care to align index marks previously traced.
SMR2000-047_04_06A.FM
1
1
www.SeaDooManuals.net
Section 04 ENGINE
Subsection 06 (BOTTOM END)
Crankshaft and Counterbalance Shaft
Install crankshaft no. 3 first in crankcase.
After crankshaft installation, install counterbal-
ance shaft no. 13. Make sure to properly index
crankshaft and counterbalance shaft by aligning
marks of gears.
CAUTION: Marks on the crankshaft and coun-
terbalance shaft must be aligned, otherwise
engine will vibrate and premature wear will oc-
cur.
1. Marks must be aligned
Turn by hand the crankshaft and counterbalance
shaft. Make sure they do not interfere with the
crankcase.
Properly position bearing no. 31 and washer
no. 32. Ensure to position lubrication hole on top
(if so equipped).
1. Bearing
2. Washer in crankcase groove
3. Lubrication hole on top (if so equipped)
04-06-11
