Install steering support no. 24 to steering stem
no. 19 and secure with pivot bolt no. 25. Install
nut and torque to 26 N•m (19 lbf•ft).

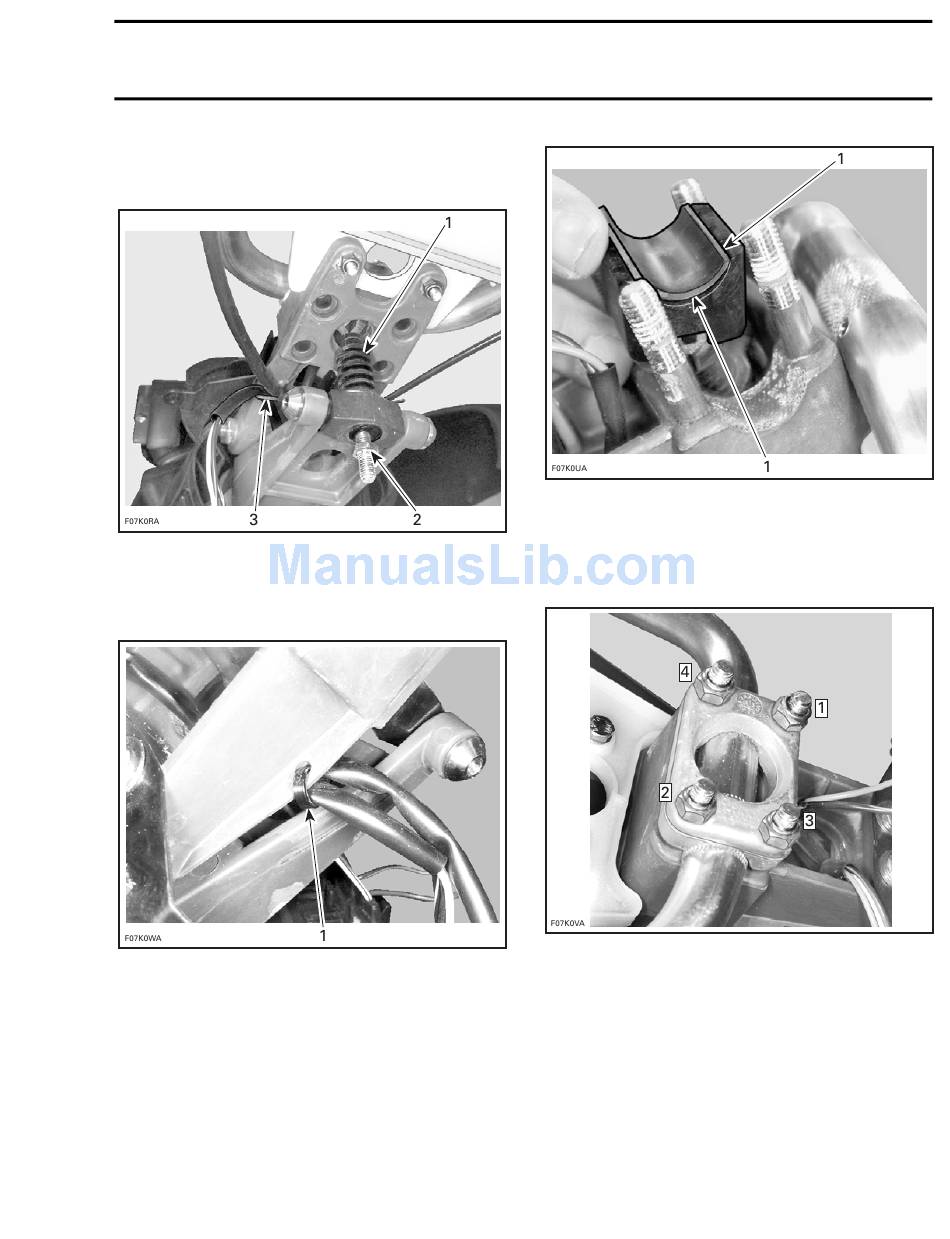

1. Adjuster screw
2. Apply Loctite 243
3. Locking tie
Ensure wire harness is properly secured to steer-
ing support with a locking tie.
1. Locking tie holding harness to steering support
Handle Bar
Before installing handle bar, position stopper
no. 33 and rubber pad no. 32.
CAUTION: Rubber pad must not exceed stop-
per.
SMR2000-069_11_03A.FM
Subsection 03 (ADJUSTABLE STEERING)
1. Pad must not exceed stopper
Position handle bar no. 22. Install steering clamp
no. 31 and secure with new elastic stop nuts M8.
Torque nuts to 26 N•m (19 lbf•ft) as per the fol-
lowing sequence.
TORQUE SEQUENCE
STEERING ALIGNMENT
For steering alignment procedure, refer to ALIGN-
MENT.
