Sea-doo RX Shop Manual page 83

Section 04 ENGINE
Subsection 05 (TOP END)

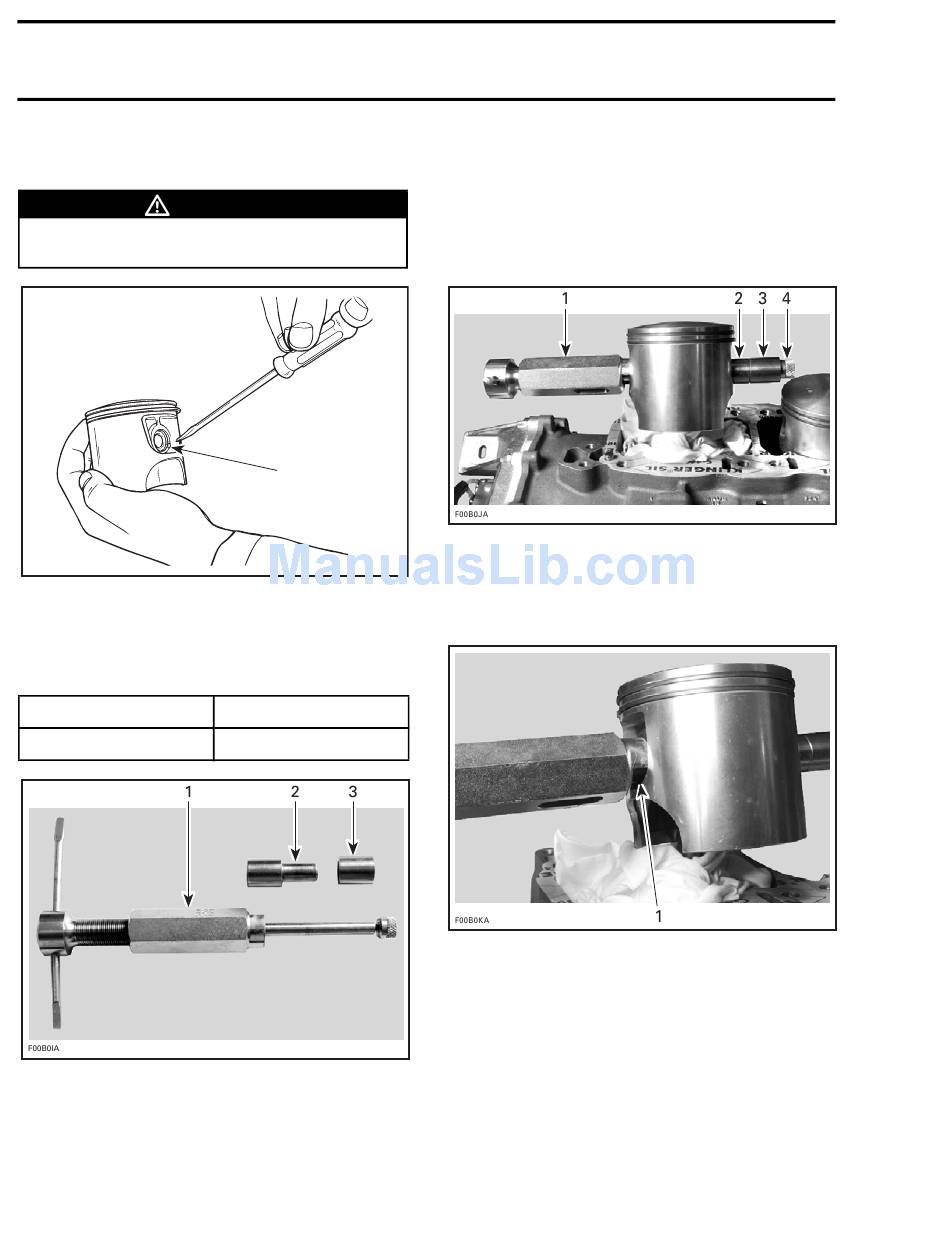

To remove circlip no. 5, insert a pointed tool in pis-
ton notch then pry it out and discard.
WARNING
Always wear safety glasses when removing
piston circlips.
F01D0PA
TYPICAL
1. Piston notch
To extract piston pin no. 4, use piston pin puller
(P/N 529 035 503) with the appropriate set of
sleeves.
ENGINE
947
1. Puller
2. Shoulder sleeve
3. Sleeve
04-05-10
1
SLEEVE SET
P/N 529 035 543
www.SeaDooManuals.net
– Fully thread on puller handle.
– Insert extractor spindle into the piston pin.
– Slide the sleeve and shoulder sleeve onto the
spindle.
– Screw in extracting nut with the movable ex-
tracting ring towards spindle.
1. Puller
2. Sleeve
3. Shoulder sleeve
4. Extracting nut
NOTE: The tool cutout must be positioned toward
the bottom of the piston.
1. Tool cutout toward bottom of piston
– Firmly hold puller and rotate handle to pull pis-
ton pin no. 4.
– Rotate spindle until the shoulder sleeve is
flushed with the piston recess.
SMR2000-046_04_05A.FM
