CAUTION: Some watercraft require a shim be-
tween hull and pump; if shim has been re-
moved at pump removal, be sure to reinstall it,
otherwise engine alignment will be altered.
Apply Loctite 243 (blue) on stud threads of jet
pump housing.
Install flat washers no. 6, lock washers no. 5 and
nuts no. 4. Tighten nuts of jet pump housing in
a criss-cross sequence and torque to 33 N•m
(24 lbf•ft).
NOTE: Slightly lubricate wear ring with BOMBAR-
DIER LUBE lubricant to minimize friction during
initial start.
Nozzle
GTX DI Model
Insert bushings no. 3 in nozzle no. 1, positioning
their flanges from inside of nozzle.
Insert sleeves no. 44 in bushings no. 3.
Install nozzle on venturi; position its steering arm
on RH side. Apply Loctite 243 (blue) on screw
threads (or use new screws with pre-applied
threadlocker). Install screws no. 2 and locking
disks no. 45 then torque to 20 N•m (15 lbf•ft).

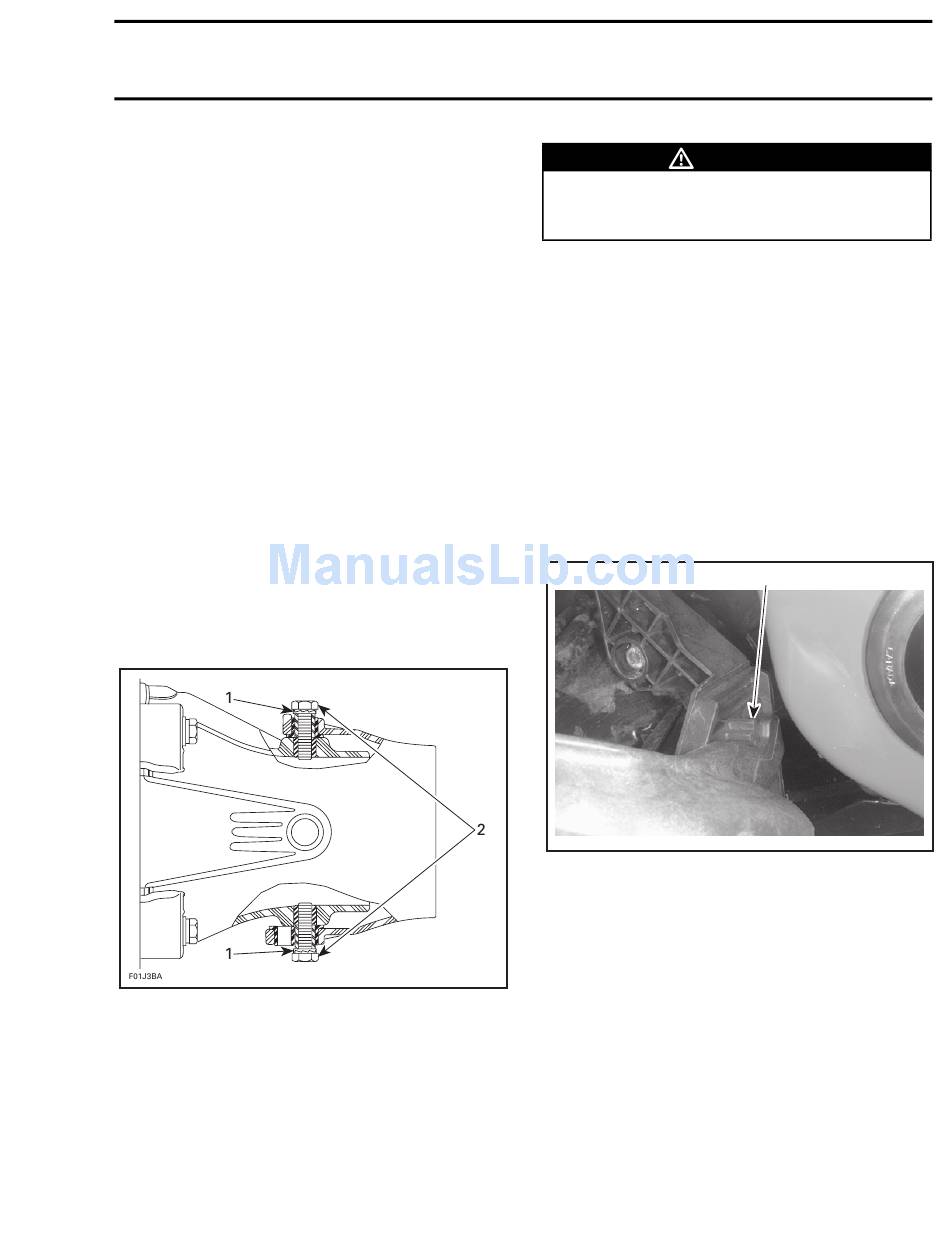

TYPICAL
1. Locking disks
2. Torque screws to 20 N•m (15 lbf•ft)
SMR2000_065_10_02A.FM
Section 10 PROPULSION SYSTEM
Whenever removing screw always renew
locking disks. Screw must be torqued as
specified.
Pivot Triangle
Install head bolts toward inside.
NOTE: Make sure the pivot triangle turn freely.
Reverse Gate
RX and RX DI
Install reverse gate with spacer and washer.
Torque to 20 N•m (15 lbf•ft).
GTX DI Model
When installing the reverse gate, pay attention to
position its lever behind the reverse gate support
stopper.
F07J07A
1. Stopper

Steering Cable

Refer to STEERING SYSTEM section.
Trim System
Refer to VARIABLE TRIM SYSTEM section.
Reverse Cable
Refer to REVERSE SYSTEM section.
www.SeaDooManuals.net
Subsection 02 (JET PUMP)
WARNING
1
10-02-19
