Section 14 WIRING DIAGRAMS
Subsection 01 (WIRING DIAGRAMS)
CAUTION: If contacts are not crimped using the
proper crimping tool, the wire seal may be dam-
aged.
F00B0EA

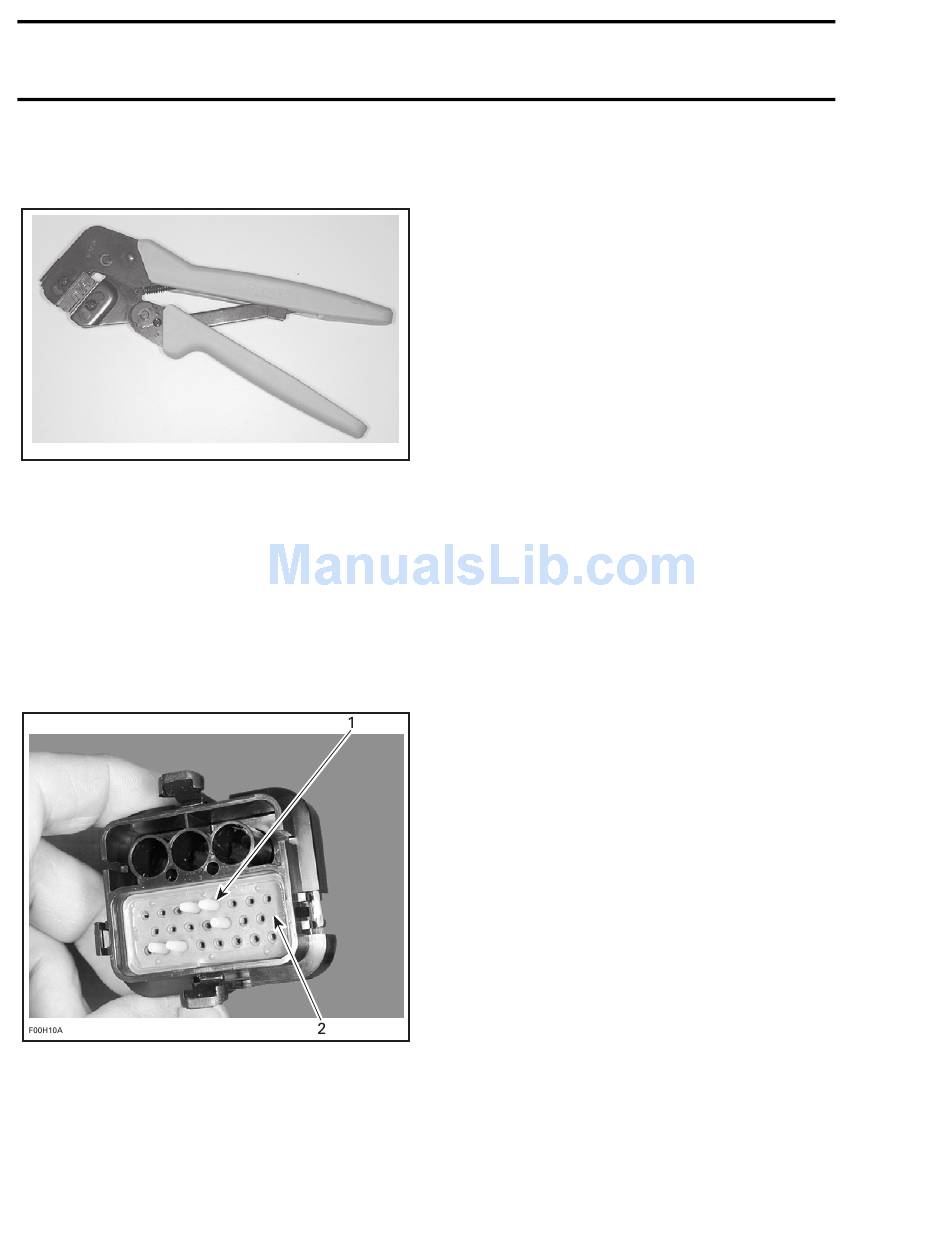

CRIMPING TOOL (P/N 295 100 164)
All circuits are sealed by a diaphragm in the rubber
wire seal. When installing wire contacts in plug
connector, the diaphragm is pierced as the contact
passes through it.
If the diaphragm is pierced and the cavity is not
used, install a seal plug, large end first, into circuit
cavity as far as it will go.
NOTE: It is suggested that all unused circuit cavi-
ties be sealed with a seal plug, even if they are not
pierced.
1. Seal plug
2. Wire seal
14-01-6
CAUTION: Do not pierce the diaphragm with a
sharp point for electrical troubleshooting. The
resulting pinholes in the insulation will allow
moisture to penetrate the system and possibly
result in system failure.
Contact Installation
For insertion of signal contact, make sure the wedge
lock is in the open position.
NOTE: For insertion of power contact, the wedge
lock may or may not be on the open position.
Insert contact into appropriate circuit cavity and
push as far as it will go.
Pull back on the contact wire to be sure the reten-
tion fingers in the housing are holding the contact
properly.
After all required contacts have been inserted, the
wedge lock must be closed to its locked position.
