Section 04 ENGINE
Subsection 05 (TOP END)

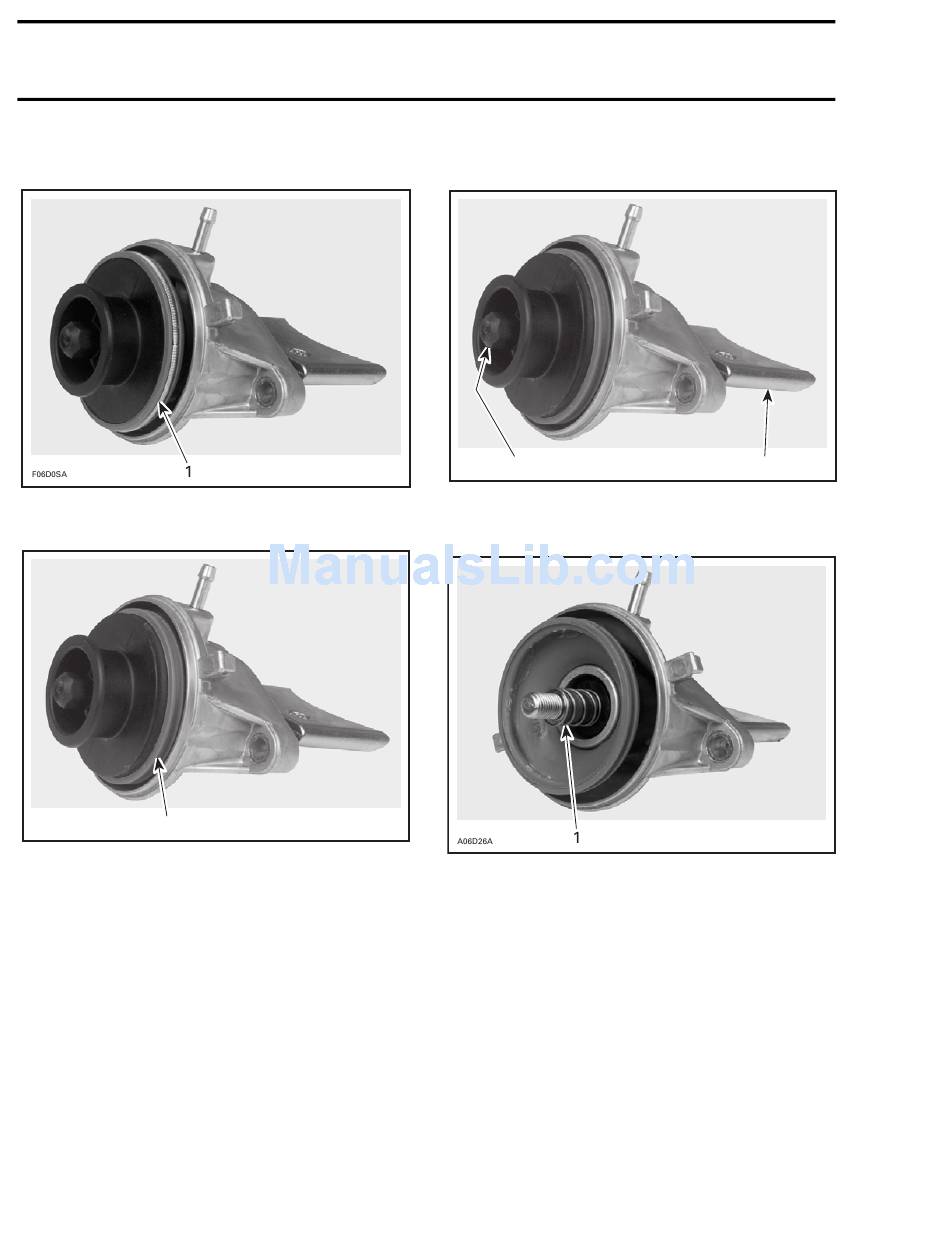

Remove spring no. 30 retaining bellows no. 21 to
valve piston no. 20.
1. Spring
Free bellows no. 21 from valve piston no. 20.
1
F06D0TA
1. Bellows removed from piston
Unscrew valve piston no. 20 from sliding valve
no. 22.
04-05-6
NOTE: Hold the sliding valve to prevent it from
turning.
1
F06D0TB
1. Unscrew piston
2. Hold sliding valve
Remove compression spring no. 29.
1. Remove spring
