Sea-doo RX Shop Manual page 303

Section 11 STEERING SYSTEM
Subsection 03 (ADJUSTABLE STEERING)
Cable Support

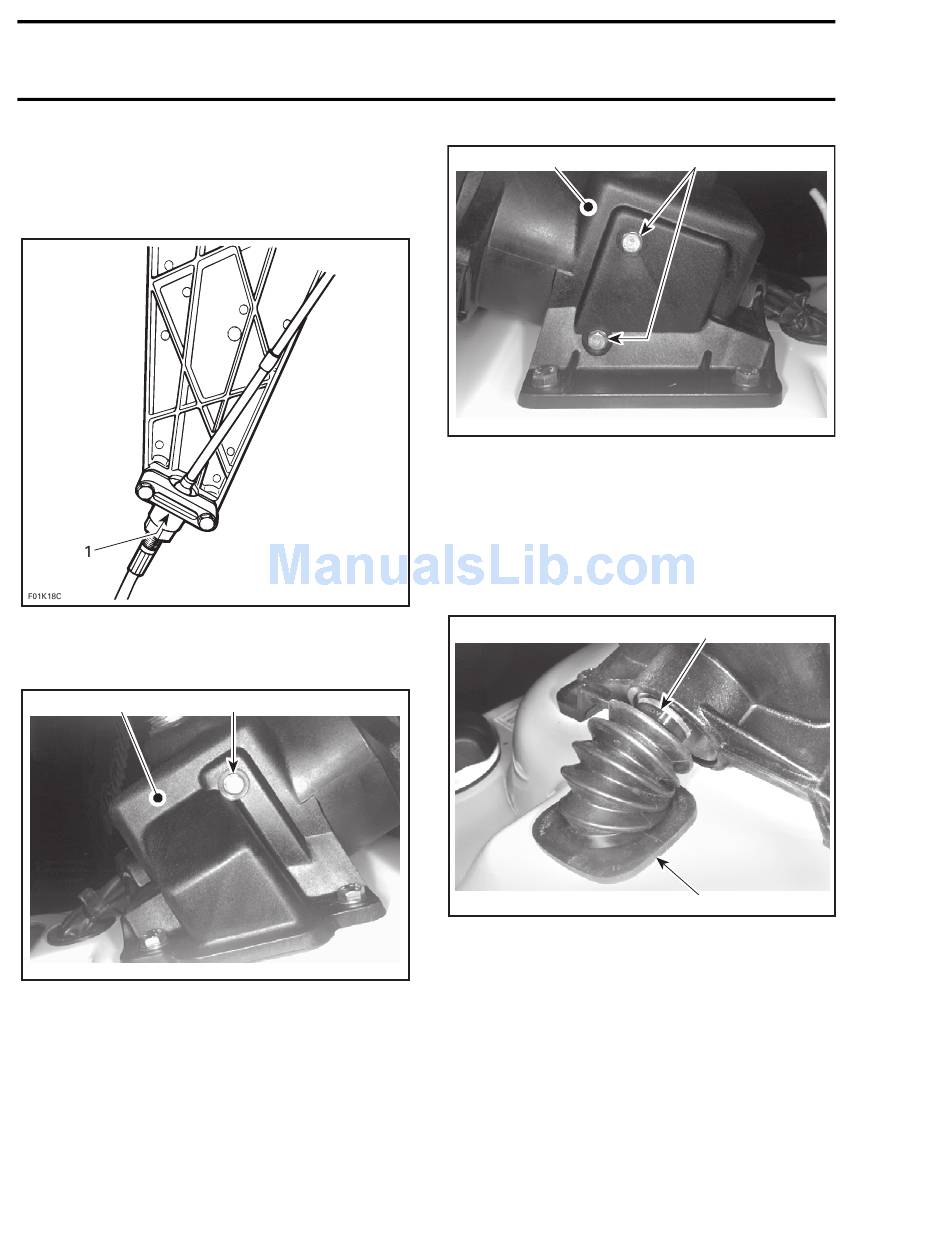

Loosen bolts no. 9 and remove retaining block
no. 10 holding cable adjusting nut to cable support
no. 8.
1. Retaining block
Remove bolts no. 11 each side of steering support
no. 12.
1
F07K02A
LEFT SIDE
1. Steering support
2. Bolt
11-03-4
2
www.SeaDooManuals.net
1
F07K03A
RIGHT SIDE
1. Steering support
2. Bolts
From inside bilge, pull down cable support no. 8
to detach it from steering support no.12.
Steering Support
Cut locking tie securing wiring harness boot.
F07K0IA
1. Locking tie
2. Boot
2
1
2
